Product comparison · 2 network switches

Ernitec Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports vs Ernitec Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports

76specifications compared
20differ
56identical
0known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:16
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:24
Installed SFP modules quantity
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:2
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:0
Fiber ports quantity
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:2
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:4
MAC address table
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:8000 entries
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:16000 entries
Switching capacity
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:36 Gbit/s
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:56 Gbit/s
Forwarding rate
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:26.8 Mpps
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:41.7 Mpps
Packet buffer memory
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:4 MB
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:12 MB
Power over Ethernet (PoE) ports quantity
- Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports:16
- Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports:24

Side by side

Differences highlightedShow differences only

Comparison of ELECTRA-M216/2, ELECTRA-M224/4

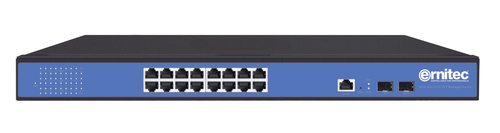

76 specifications	A Ernitec Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports Model ELECTRA-M216/2 View product	B Ernitec Managed Layer 2, 24 Gigabit ports, 4 Gigabit SFP ports Model ELECTRA-M224/4 View product
Management featuresidentical
Switch type	Managed	Managed
Switch layer	L2	L2
Quality of Service (QoS) support	Yes	Yes
Cloud-managed	Yes	Yes
Web-based management	Yes	Yes
ARP inspection	Yes	Yes
System event log	Yes	Yes
Ports & interfaces3 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	16	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantityDiffers	2	0
Installed SFP+ modules quantity	0	0
Fiber ports quantityDiffers	2	4
Fiber optic connector	SFP	SFP
Console port	RJ-45	RJ-45
Power connector	AC-in jack	AC-in jack
Network2 differ
Networking standardsDiffers	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z	IEEE 802.3u
10G support	No	No
Copper ethernet cabling technology	2.5GBASE-T, 100BASE-X, 1000BASE-T	2.5GBASE-T, 100BASE-X, 1000BASE-T
Port mirroring	Yes	Yes
Broadcast storm control	Yes	Yes
Link aggregation	Yes	Yes
Spanning tree protocol	Yes	Yes
VLAN support	Yes	Yes
Virtual LAN featuresDiffers	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN	Protocol-based VLAN, MAC address-based VLAN, Voice VLAN, Tagged VLAN
Number of VLANs	4000	4000
Optical fiberidentical
Fiber ethernet cabling technology	1000BASE-X	1000BASE-X
Data transmission4 differ
MAC address tableDiffers	8000 entries	16000 entries
Switching capacityDiffers	36 Gbit/s	56 Gbit/s
Forwarding rateDiffers	26.8 Mpps	41.7 Mpps
Store-and-forward	Yes	Yes
Jumbo frames support	Yes	Yes
Packet buffer memoryDiffers	4 MB	12 MB
Security2 differ
DHCP features	DHCP client, DHCP snooping	DHCP client, DHCP snooping
Access Control List (ACL)	Yes	Yes
IGMP snooping	Yes	Yes
Authentication	Port-based authentication	Port-based authentication
Authentication typeDiffers	AAA, IEEE 802.1x, RADIUS, TACACS+	AAA, RADIUS, IEEE 802.1x, TACACS+
IP-MAC-Port binding	Yes	Yes
Loop protection	Yes	Yes
MAC address filtering	Yes	Yes
Password protection	Yes	Yes
Queue scheduling algorithms	SP, WFQ, Weighted Round Robin (WRR)	SP, WFQ, Weighted Round Robin (WRR)
Security algorithmsDiffers	802.1x RADIUS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2	SSH, SSH-2, 802.1x RADIUS, SNMP, SNMPv2, SNMPv3
Multicast featuresidentical
Multicast support	Yes	Yes
Multicast Listener Discovery (MLD) snooping	Yes	Yes
Protocols1 differ
Management protocols	Command Line Interface (CLI) through console port, telnet and SSH; Trap/Inform RMON (1, 2, 3, 9) groups; SNTP; Traceroute; Ping; BOOTP Client	Command Line Interface (CLI) through console port, telnet and SSH; Trap/Inform RMON (1, 2, 3, 9) groups; SNTP; Traceroute; Ping; BOOTP Client
IPv4 & IPv6 featuresDiffers	IPv6 SSH, IPv6 Path MTU Discovery, ICMPv6, IPv6 SNMP, IPv6 TFTP, Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert
Designidentical
Rack mounting	Yes	Yes
Product colour	Black, Blue	Black, Blue
LED indicators	Yes	Yes
Number of fans	2 fan(s)	2 fan(s)
Performanceidentical
Firmware upgradeable	Yes	Yes
Poweridentical
Power source	AC/PoE	AC/PoE
Power supply included	Yes	Yes
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50/60 Hz	50/60 Hz
Power over Ethernet (PoE)4 differ
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet (PoE) ports quantityDiffers	16	24
Power over Ethernet plus (PoE+) ports quantityDiffers	11	13
Power over Ethernet (PoE) power per portDiffers	21.8 W	16.6 W
Total Power over Ethernet (PoE) budgetDiffers	350 W	400 W
Other featuresidentical
Warranty period	5 year(s)	5 year(s)
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)	5 - 90%	5 - 90%
Weight & dimensions2 differ
Width	440 mm	440 mm
DepthDiffers	200 mm	290 mm
Height	45 mm	45 mm
WeightDiffers	800 g	1 kg
Packaging contentidentical
Cables included	AC	AC
Rack mount kit	Yes	Yes
User guide	Yes	Yes
Packaging data1 differ
Package weightDiffers	1.2 kg	1.4 kg
Sustainabilityidentical
Sustainability compliance	Yes	Yes
Certificates1 differ
Compliance certificatesDiffers	CE, Federal Communications Commission (FCC), RoHS, UKCA	UKCA, CE, RoHS, Federal Communications Commission (FCC)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
