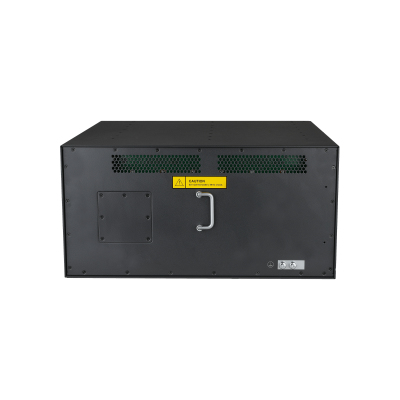

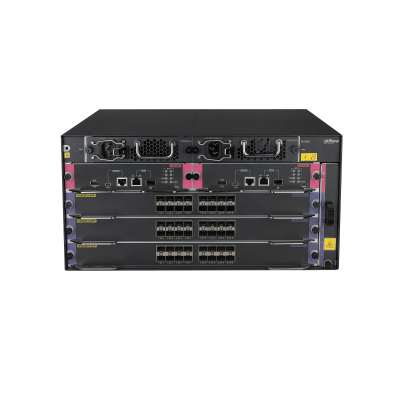

DH-S7603 network switch Managed L3 Black
Model DH-S7603
46 specifications
- Weight20.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity1
- Port mirroringYes
- Switching capacity19200 Gbit/s
Overview
- Weight
- 20.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- Port mirroring
- Yes
- Switching capacity
- 19200 Gbit/s
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S7603
- Part number
- DH-S7603
- Also known as
- Dahua Technology DH-S7603 network switch Managed L3 Black
Specifications
46 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 19200 Gbit/s |
| Forwarding rate | 1440 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 24 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 490 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 436 mm |
| Height | 420 mm |
| Weight | 20.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 650 mm |
| Package depth | 590 mm |
| Package height | 375 mm |
| Package weight | 26.6 kg |
