Product comparison · 2 network switches

Allied Telesis X530L-18GHXM Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) vs Dahua Technology DH-S7603 network switch Managed L3 Black

Add a product
  • 20specifications compared
  • 14differ
  • 6identical
  • 44known for one product only

Key differences

  • Basic switching RJ-45 Ethernet ports quantity
    • 16
    • 1
  • Switching capacity
    • 200 Gbit/s
    • 19200 Gbit/s
  • Forwarding rate
    • 148.8 Mpps
    • 1440 Mpps
  • Power consumption (max)
    • 970 W
    • 490 W
  • Width
    • 441 mm
    • 216 mm
  • Depth
    • 256 mm
    • 436 mm
  • Height
    • 44 mm
    • 420 mm
  • Weight
    • 4.3 kg
    • 20.2 kg

Side by side

Differences highlightedShow differences only
64 specifications
A

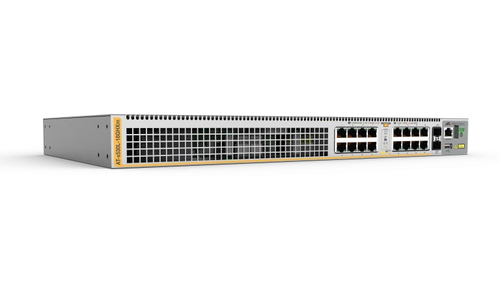

Allied Telesis

X530L-18GHXM Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE)

Model X530L-18GHXM

View product
B

Dahua Technology

DH-S7603 network switch Managed L3 Black

Model DH-S7603

View product
Management featuresidentical
Switch typeManagedManaged
Switch layerL3L3
Quality of Service (QoS) supportYesYes
Web-based managementKnown for oneYes
ARP inspectionKnown for oneYes
Configuring Location Settings (CLI)Known for oneYes
System event logKnown for oneYes
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers161
Console portKnown for oneRJ-45
Basic switching RJ-45 Ethernet ports typeKnown for oneFast Ethernet (10/100)
Installed SFP modules quantityKnown for one0
Installed SFP+ modules quantityKnown for one2
Network1 differ
Networking standardsDiffersIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3zIEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Port mirroringKnown for oneYes
Full duplexKnown for oneYes
Half duplexKnown for oneYes
IP routingKnown for oneYes
Policy-based routingKnown for oneYes
VLAN supportYesYes
Virtual LAN featuresKnown for oneMAC address-based VLAN
Number of VLANsKnown for one4094
10G supportKnown for oneYes
Data transmission2 differ
Switching capacityDiffers200 Gbit/s19200 Gbit/s
Forwarding rateDiffers148.8 Mpps1440 Mpps
Jumbo frames supportKnown for oneYes
Jumbo framesKnown for one10000
Packet buffer memoryKnown for one24 MB
MAC address tableKnown for one16000 entries
Latency (10-100 Mbps)Known for one8.35 µs
Latency (1 Gbps)Known for one7.96 µs
Latency (10 Gbps)Known for one2.56 µs
Security1 differ
DHCP featuresDiffersDHCPv6 client, DHCPv6 relay, DHCPv6 serverDHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server
Access Control List (ACL)Known for oneYes
IGMP snoopingKnown for oneYes
MAC address filteringKnown for oneYes
Password protectionKnown for oneYes
SSH/SSL supportYesYes
Static port securityKnown for oneYes
Authentication typeKnown for oneIEEE 802.1x, RADIUS
Security algorithmsKnown for one3DES, AES, EAP, HTTPS, MD5, PEAP, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, TLS, TTLS
Designidentical
Product colourKnown for oneBlack
Rack mountingKnown for oneYes
StackableKnown for oneYes
Power1 differ
Power sourceACAC
AC input voltageKnown for one100 - 240 V
AC input frequencyKnown for one50 - 60 Hz
Power consumption (max)Differs970 W490 W
Operational conditionsidentical
Operating temperature (T-T)Known for one0 - 45 °C
Storage temperature (T-T)Known for one-40 - 70 °C
Operating relative humidity (H-H)Known for one5 - 95%
Heat dissipationKnown for one3317 BTU/h
Weight & dimensions4 differ
WidthDiffers441 mm216 mm
DepthDiffers256 mm436 mm
HeightDiffers44 mm420 mm
WeightDiffers4.3 kg20.2 kg
Packaging data4 differ
Package widthDiffers526 mm650 mm
Package depthDiffers412 mm590 mm
Package heightDiffers129 mm375 mm
Package weightDiffers5.98 kg26.6 kg
Protocolsidentical
Routing protocolsKnown for oneBGP, BGP4, OSPF, OSPFv2, OSPFv3, RIP, RIP-2
Performanceidentical
Noise levelKnown for one42 dB
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)Known for oneYes
Power over Ethernet (PoE) ports quantityKnown for one16
Total Power over Ethernet (PoE) budgetKnown for one720 W

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
