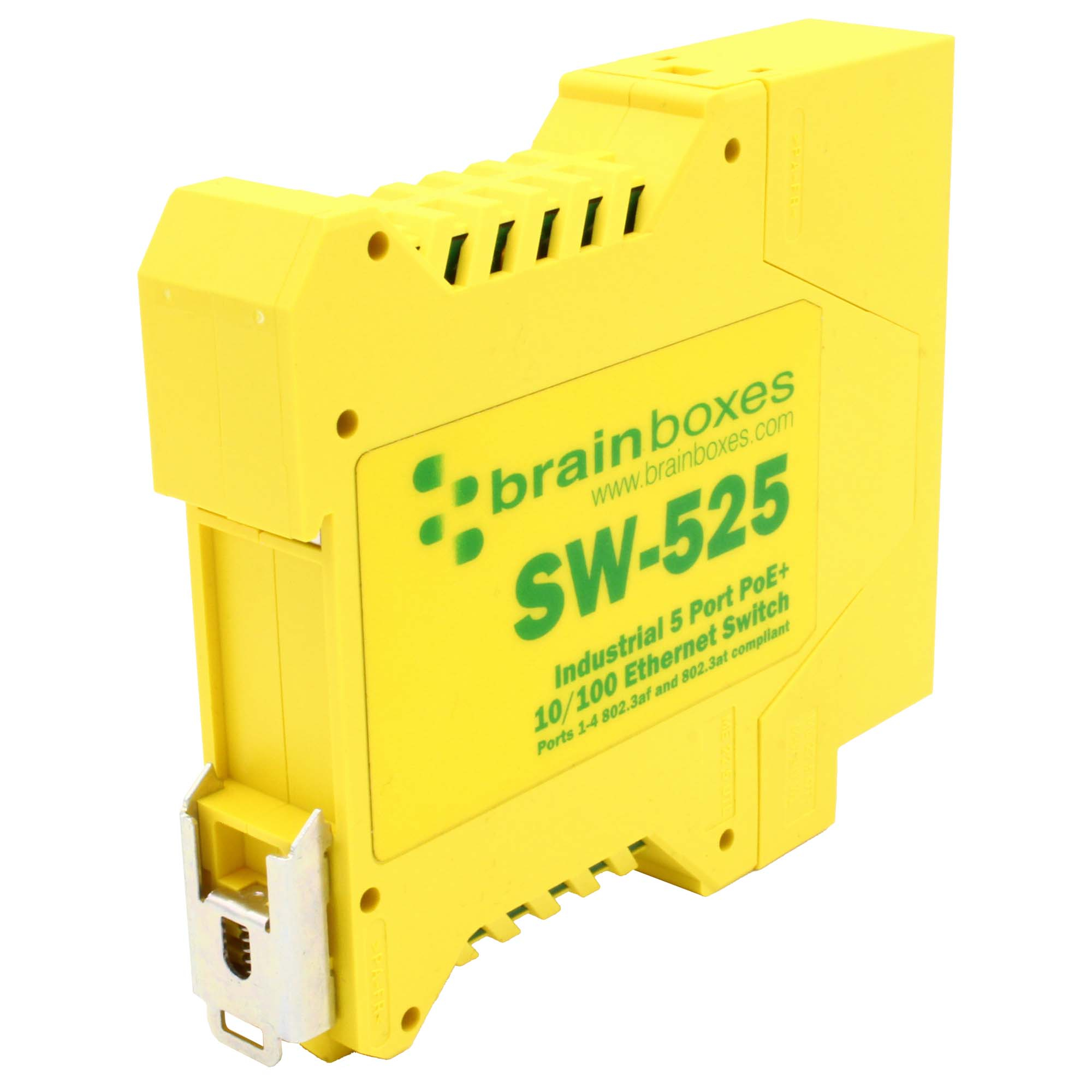

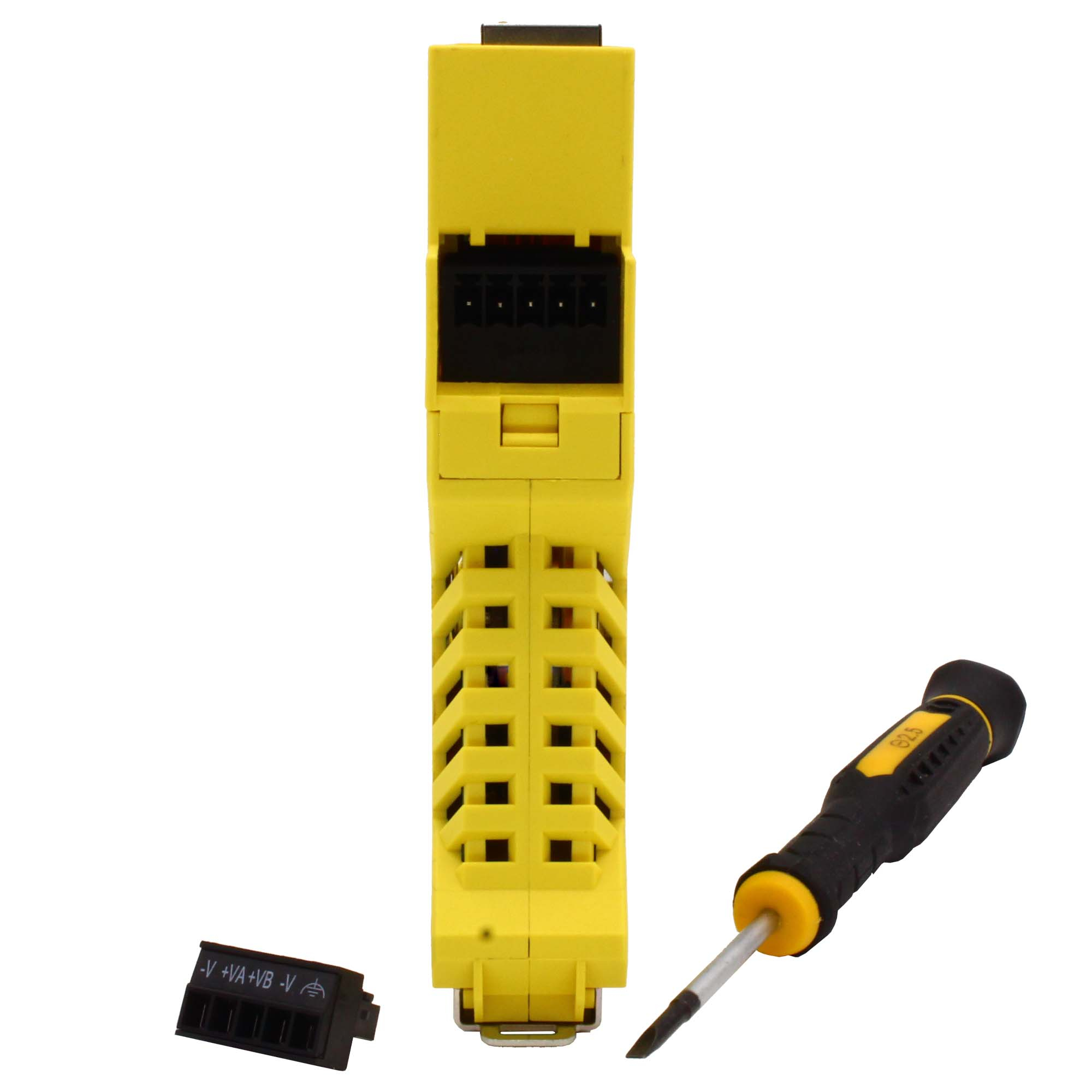

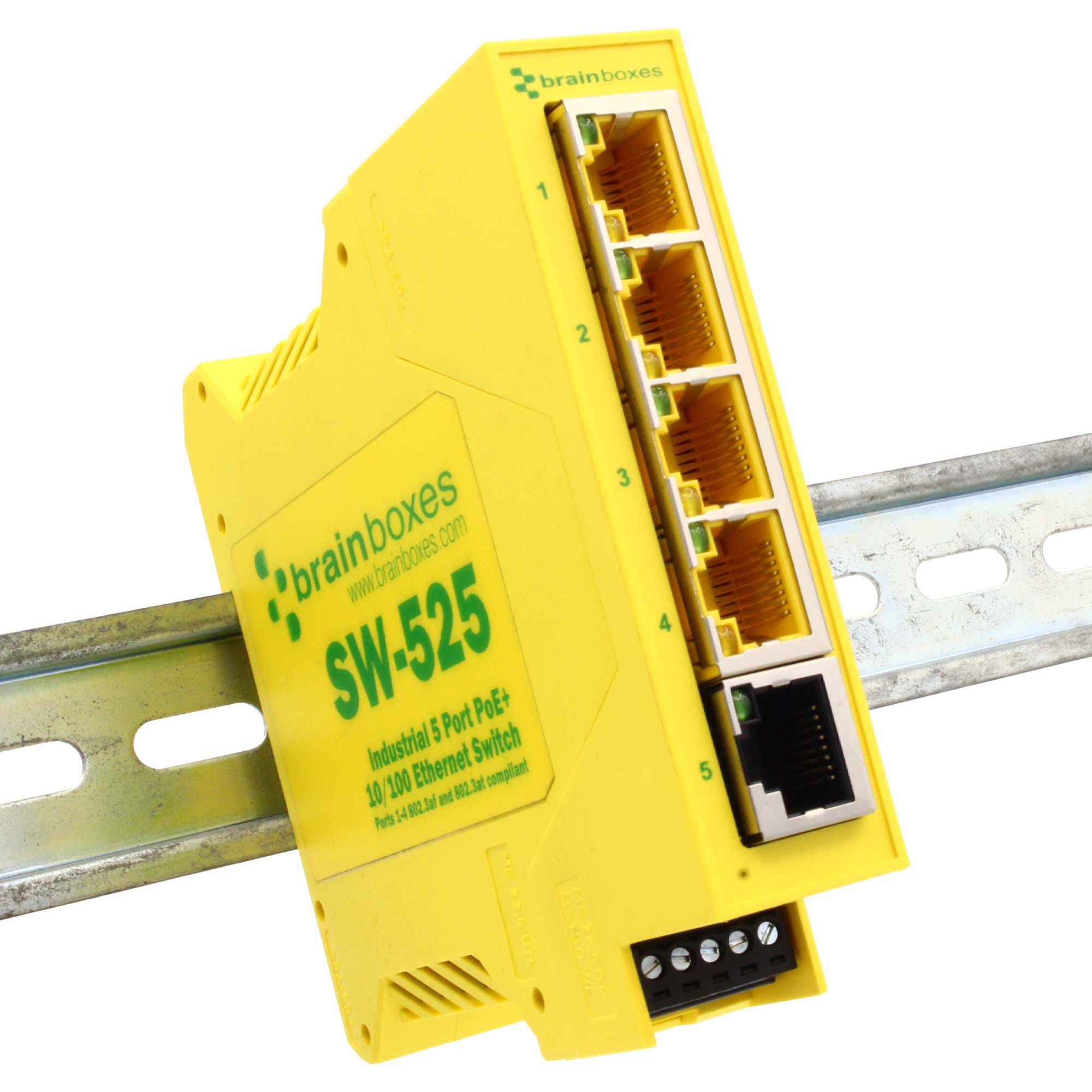

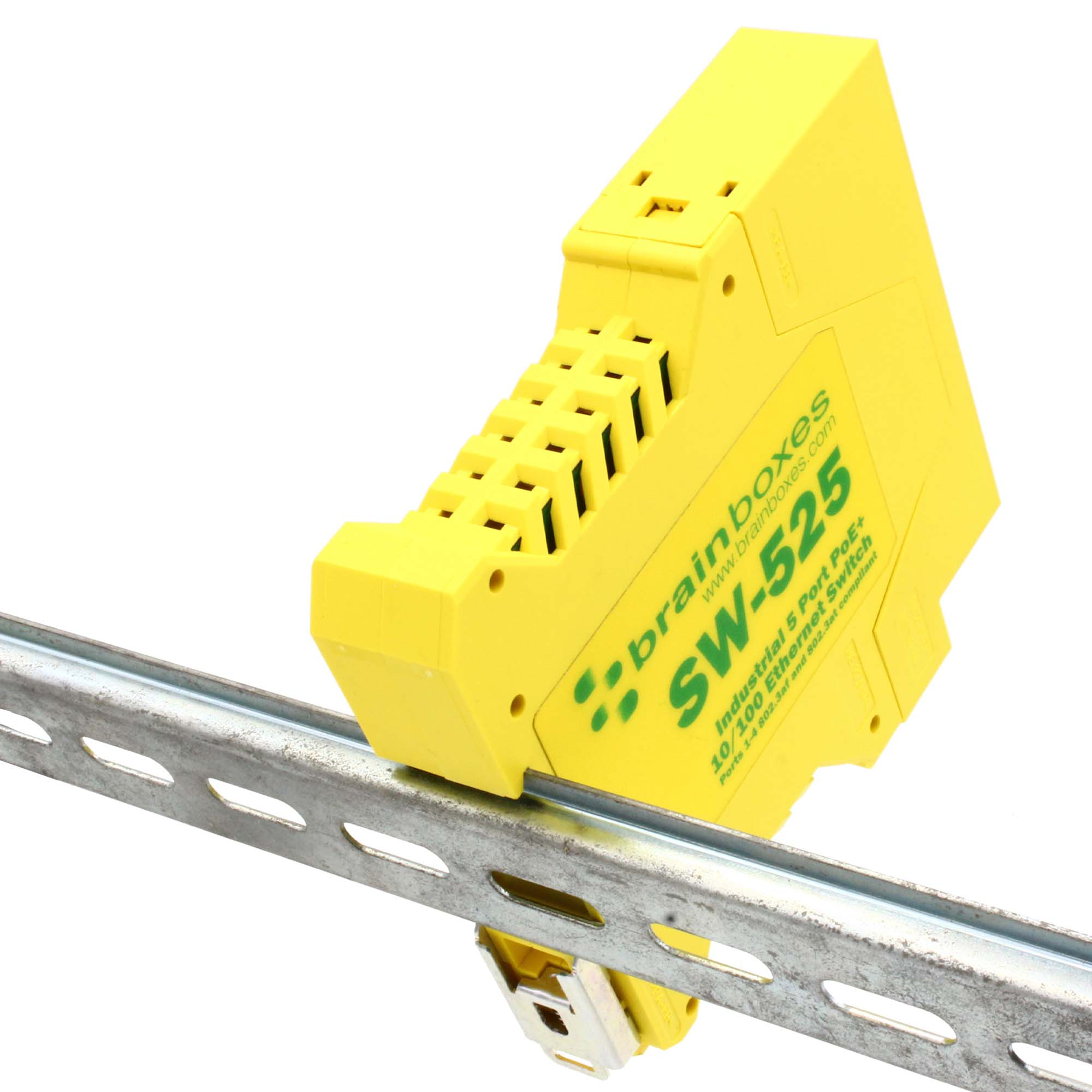

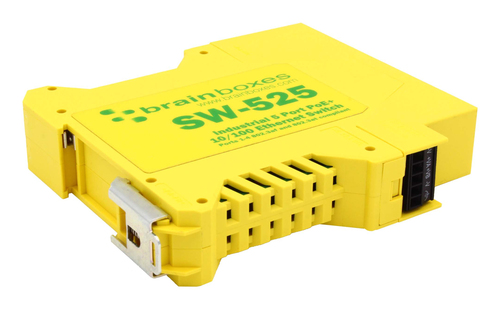

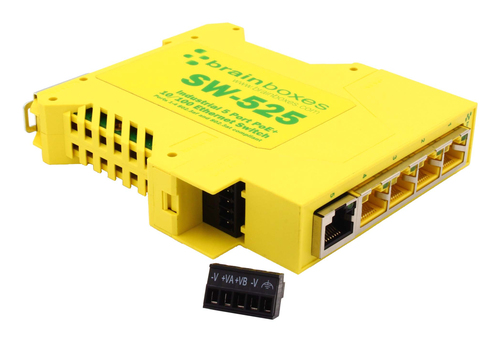

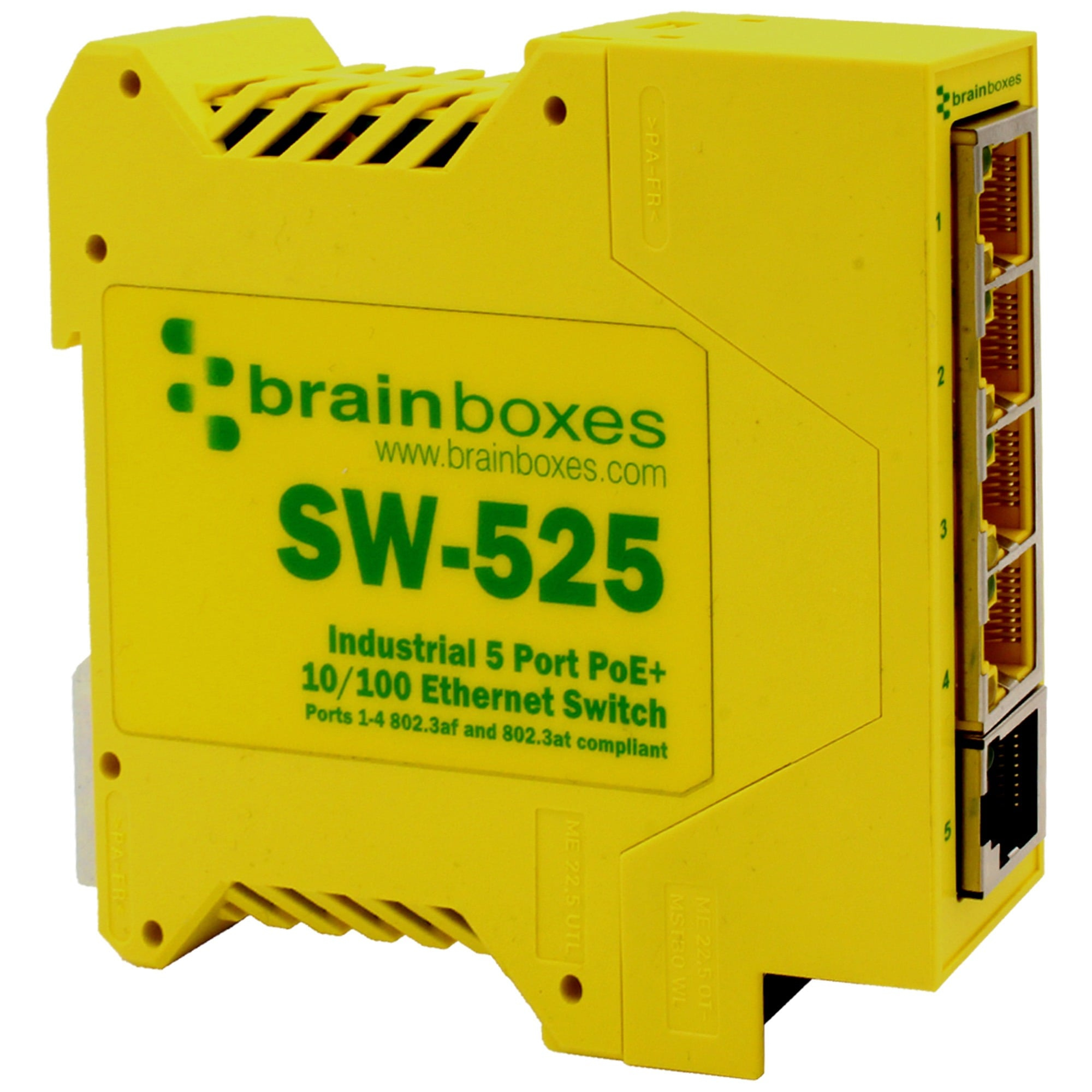

Industrial 5 Port PoE+ 10/100 Ethernet Switch
Model SW-525EAN 837324004533
37 specifications
- TypeDIN rail
- Weight124 g
- ColourYellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 124 g
- Colour
- Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-525
- Part number
- SW-525
- EAN / UPC
- 837324004533
- Also known as
- Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | DIN rail |
| Product colour | Yellow |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116 mm |
| Depth | 99 mm |
| Height | 23 mm |
| Weight | 124 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 235 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
