Product comparison · 2 network switches

Brainboxes Compact Industrial 4 Port Gigabit Ethernet Switch vs Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch

Add a product
  • 33specifications compared
  • 12differ
  • 21identical
  • 6known for one product only

Key differences

  • Basic switching RJ-45 Ethernet ports quantity
    • 4
    • 5
  • Ethernet LAN data rates
    • 10,100,1000 Mbit/s
    • 10,100 Mbit/s
  • Jumbo frames support
    • Yes
    • No
  • DC input voltage
    • 5 - 30 V
    • 44 - 57 V
  • Power consumption (max)
    • 3.6 W
    • 4 W
  • Power over Ethernet (PoE)
    • No
    • Yes
  • Operating temperature (T-T)
    • -40 - 80 °C
    • -40 - 70 °C
  • Width
    • 99 mm
    • 116 mm

Side by side

Differences highlightedShow differences only
39 specifications
A

Brainboxes

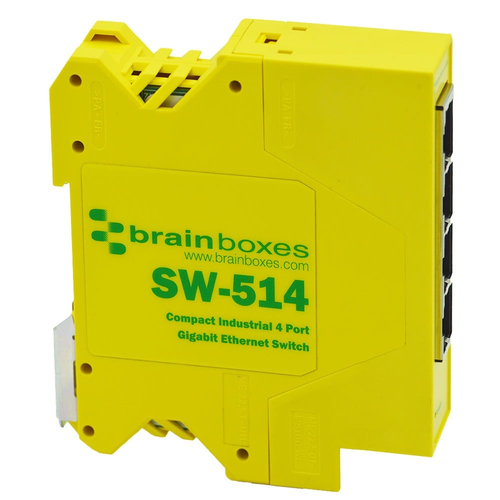

Compact Industrial 4 Port Gigabit Ethernet Switch

Model SW-514

View product
B

Brainboxes

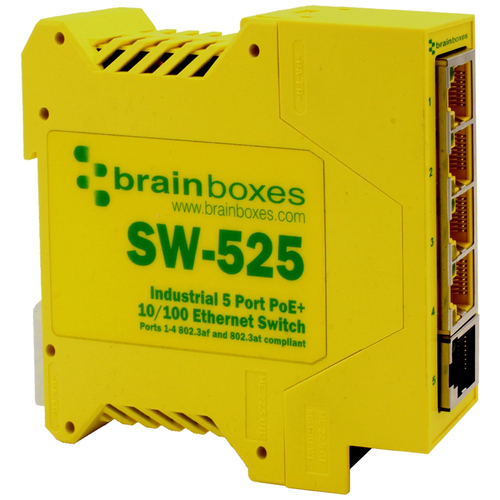

Industrial 5 Port PoE+ 10/100 Ethernet Switch

Model SW-525

View product
Management featuresidentical
Switch typeUnmanagedUnmanaged
Switch layerL2L2
Ports & interfaces2 differ
Basic switching RJ-45 Ethernet ports quantityDiffers45
Basic switching RJ-45 Ethernet ports typeDiffersGigabit Ethernet (10/100/1000)Fast Ethernet (10/100)
Installed SFP modules quantity00
Installed SFP+ modules quantity00
Network1 differ
10G supportNoNo
Ethernet LAN data ratesDiffers10,100,1000 Mbit/s10,100 Mbit/s
Auto MDI/MDI-XKnown for oneYes
Data transmission1 differ
MAC address table1000 entries1000 entries
Jumbo frames supportDiffersYesNo
Jumbo framesKnown for one9000
Designidentical
Rack mountingNoNo
Form factorDIN railDIN rail
Product colourYellowYellow
DIN rail mountingYesYes
International Protection (IP) codeKnown for oneIP20
Performanceidentical
Export Control Classification Number (ECCN)5A991.b5A991.b
Power2 differ
Power sourceDCDC
Redundant power supply (RPS) supportYesYes
DC input voltageDiffers5 - 30 V44 - 57 V
Power consumption (max)Differs3.6 W4 W
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)DiffersNoYes
Power over Ethernet (PoE) type supportedKnown for onePoE+
Power over Ethernet plus (PoE+) ports quantityKnown for one5
Total Power over Ethernet (PoE) budgetKnown for one90 W
Operational conditions1 differ
Operating temperature (T-T)Differs-40 - 80 °C-40 - 70 °C
Storage temperature (T-T)-40 - 85 °C-40 - 85 °C
Operating relative humidity (H-H)5 - 95%5 - 95%
Weight & dimensions3 differ
WidthDiffers99 mm116 mm
DepthDiffers94 mm99 mm
Height23 mm23 mm
WeightDiffers112 g124 g
Packaging data1 differ
Package width135 mm135 mm
Package depth160 mm160 mm
Package height49 mm49 mm
Package weightDiffers191 g235 g
Certificatesidentical
Compliance certificatesCE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETusCE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus
Logistics dataidentical
Harmonized System (HS) code851762851762

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
