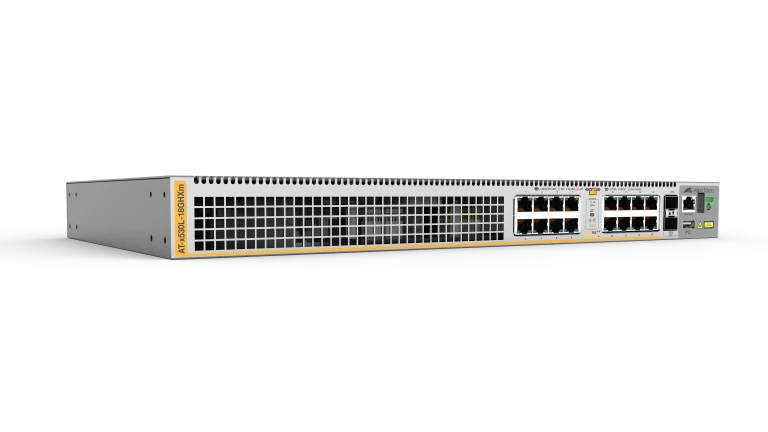

Allied Telesis X530L-18GHXM Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE)
Model X530L-18GHXMPart no. AT-X530L-18GHXM-40EAN 767035222219
38 specifications
- Noise42 dB
- Weight4.3 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportYes
- MAC address table16000 entries
Overview
- Noise
- 42 dB
- Weight
- 4.3 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- X530L-18GHXM
- Part number
- AT-X530L-18GHXM-40
- EAN / UPC
- 767035222219
- Also known as
- Allied Telesis X530L-18GHXM Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE)
Specifications
38 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 200 Gbit/s |
| Forwarding rate | 148.8 Mpps |
| Latency (10-100 Mbps) | 8.35 µs |
| Latency (1 Gbps) | 7.96 µs |
| Latency (10 Gbps) | 2.56 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 server |
| Authentication type | IEEE 802.1x, RADIUS |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, EAP, HTTPS, MD5, PEAP, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, TLS, TTLS |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIP, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (max) | 970 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 720 W |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 3317 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 256 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 526 mm |
| Package depth | 412 mm |
| Package height | 129 mm |
| Package weight | 5.98 kg |
