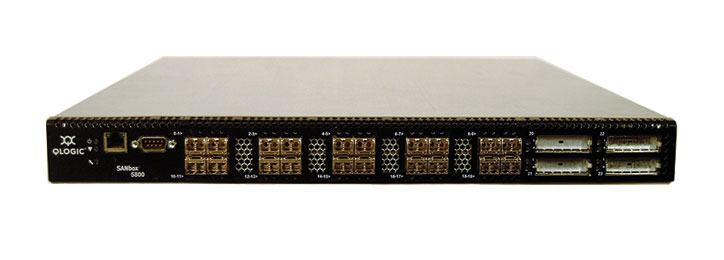

Acer QLogic 5800V
Model QLogic 5800VPart no. TC.37700.008
48 specifications
- Speed8 Gbit/s
- ConnectivityWired
- Type1U
- Weight6.8 kg
- ColourBlack
- Switch typeManaged
Overview
- Speed
- 8 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 6.8 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Acer
- Category
- Network Switch
- Model
- QLogic 5800V
- Part number
- TC.37700.008
- Also known as
- Acer QLogic 5800V Managed 1U Black
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Fiber ports quantity | 8 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
| CX4 ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 100BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Broadcast storm control | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 10 km |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 2/4 Gbit/s |
| Switching capacity | 544 Gbit/s |
| Maximum data transfer rate | 8 Gbit/s |
Security
| Specification | Value |
|---|---|
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, FDMI |
| Supported network protocols | IPv6, FTP, TFTP, SMI-S |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 83 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 0.2µs |
| Dimensions (WxDxH) | 500 x 432 x 43.2 mm |
| Connectivity technology | Wired |
| Bandwidth | 1.7 Gbit/s |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Security features | FC-SP DH-CHAP, FC-GS-4 CT |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15240 m |
| Operating temperature (T-T) | 41 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.8 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, UL/cUL, EN, CB, CE, TUV, GOST |
