Product comparison · 2 network switches

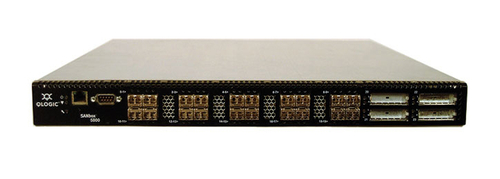

Acer QLogic 5602Q vs Acer QLogic 5800V

Add a product
  • 44specifications compared
  • 15differ
  • 29identical
  • 5known for one product only

Key differences

  • 10G support
    • No
    • Yes
  • Supported data transfer rates
    • 2 Gbit/s
    • 2/4 Gbit/s
  • Switching capacity
    • 238 Gbit/s
    • 544 Gbit/s
  • Maximum data transfer rate
    • 4 Gbit/s
    • 8 Gbit/s
  • Number of power supply units
    • 2
    • 1
  • Power consumption (typical)
    • 100 W
    • 83 W
  • Latency
    • 0.4µs
    • 0.2µs
  • Dimensions (WxDxH)
    • 432 x 508 x 43.2 mm
    • 500 x 432 x 43.2 mm

Side by side

Differences highlightedShow differences only
49 specifications
A

Acer

QLogic 5602QView product
B

Acer

QLogic 5800VView product
Management featuresidentical
Switch typeManagedManaged
Web-based managementYesYes
MIB supportKnown for oneYes
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity11
Fiber ports quantity88
Fiber optic connectorSFPSFP
Console portRS-232RS-232
CX4 ports quantityKnown for one4
Network1 differ
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3zIEEE 802.3, IEEE 802.3u, IEEE 802.3z
10G supportDiffersNoYes
Copper ethernet cabling technology100BASE-T, 100BASE-TX, 10BASE-T100BASE-T, 100BASE-TX, 10BASE-T
Full duplexYesYes
Broadcast storm controlYesYes
Optical fiberidentical
Transmission distance (max)10 km10 km
Data transmission3 differ
Supported data transfer ratesDiffers2 Gbit/s2/4 Gbit/s
Switching capacityDiffers238 Gbit/s544 Gbit/s
Maximum data transfer rateDiffers4 Gbit/s8 Gbit/s
Securityidentical
SSH/SSL supportYesYes
Security algorithms802.1x RADIUS, SSH, SSL/TLS802.1x RADIUS, SSH, SSL/TLS
Protocolsidentical
Management protocolsSNMP, FDMISNMP, FDMI
Supported network protocolsIPv6, FTP, TFTP, SMI-SIPv6, FTP, TFTP, SMI-S
Designidentical
Rack mountingYesYes
StackableYesYes
Form factor1U1U
Product colourBlackBlack
LED indicatorsYesYes
Number of fansKnown for one1 fan(s)
Power2 differ
Number of power supply unitsDiffers21
Input currentKnown for one1 A
Input voltage100 - 240 V100 - 240 V
Power consumption (typical)Differs100 W83 W
Redundant power supply (RPS) supportKnown for oneYes
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)NoNo
Other features4 differ
LatencyDiffers0.4µs0.2µs
Dimensions (WxDxH)Differs432 x 508 x 43.2 mm500 x 432 x 43.2 mm
Connectivity technologyWiredWired
BandwidthDiffers0.8 Gbit/s1.7 Gbit/s
Input frequency50/60 Hz50/60 Hz
Networking featuresGigabit EthernetGigabit Ethernet
Security featuresDiffersFC-SP, DH-CHAP, FC-GS-4 CTFC-SP DH-CHAP, FC-GS-4 CT
Wi-FiNoNo
Operational conditions4 differ
Operating temperature (T-T)Differs0 - 40 °C41 - 104 °F
Storage temperature (T-T)Differs-40 - 70 °C-20 - 70 °C
Operating relative humidity (H-H)Differs15 - 80%10 - 90%
Storage relative humidity (H-H)Differs5 - 90%10 - 95%
Operating altitude0 - 3000 m0 - 3000 m
Non-operating altitude0 - 15240 m0 - 15240 m
Weight & dimensionsidentical
Weight6.8 kg6.8 kg
Certificates1 differ
CertificationDiffersRoHS, US, UL/cUL, EN, CB, CE, TUV, GOST, S MarkRoHS, UL/cUL, EN, CB, CE, TUV, GOST

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
