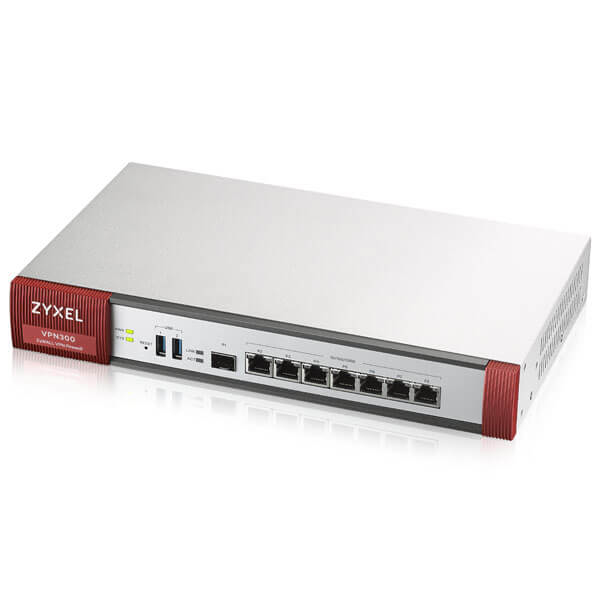

VPN300 hardware firewall 2.6 Gbit/s
Model VPN300Part no. 3718
19 specifications
- ConnectivityWired
- Weight1.65 kg
- Firewall throughput2.6 Gbit/s
- Heat dissipation82.23 BTU/h
- Rack mountingYes
- Input current4.17 A
Overview
- Connectivity
- Wired
- Weight
- 1.65 kg
- Firewall throughput
- 2.6 Gbit/s
- Heat dissipation
- 82.23 BTU/h
- Rack mounting
- Yes
- Input current
- 4.17 A
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- VPN300
- Part number
- 3718
- Also known as
- Zyxel VPN300 hardware firewall 2.6 Gbit/s
Specifications
19 specifications in 8 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 2.6 Gbit/s |
| VPN throughput | 1 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 82.23 BTU/h |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 7 |
| Ethernet LAN data rates | 1000 Mbit/s |
| SFP module slots quantity | 1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 4.17 A |
| Power consumption (typical) | 24.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 300 x 188 x 44 mm |
| Weight | 1.65 kg |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 2600 Mbit/s |
| VPN throughput | 1000 Mbit/s |
