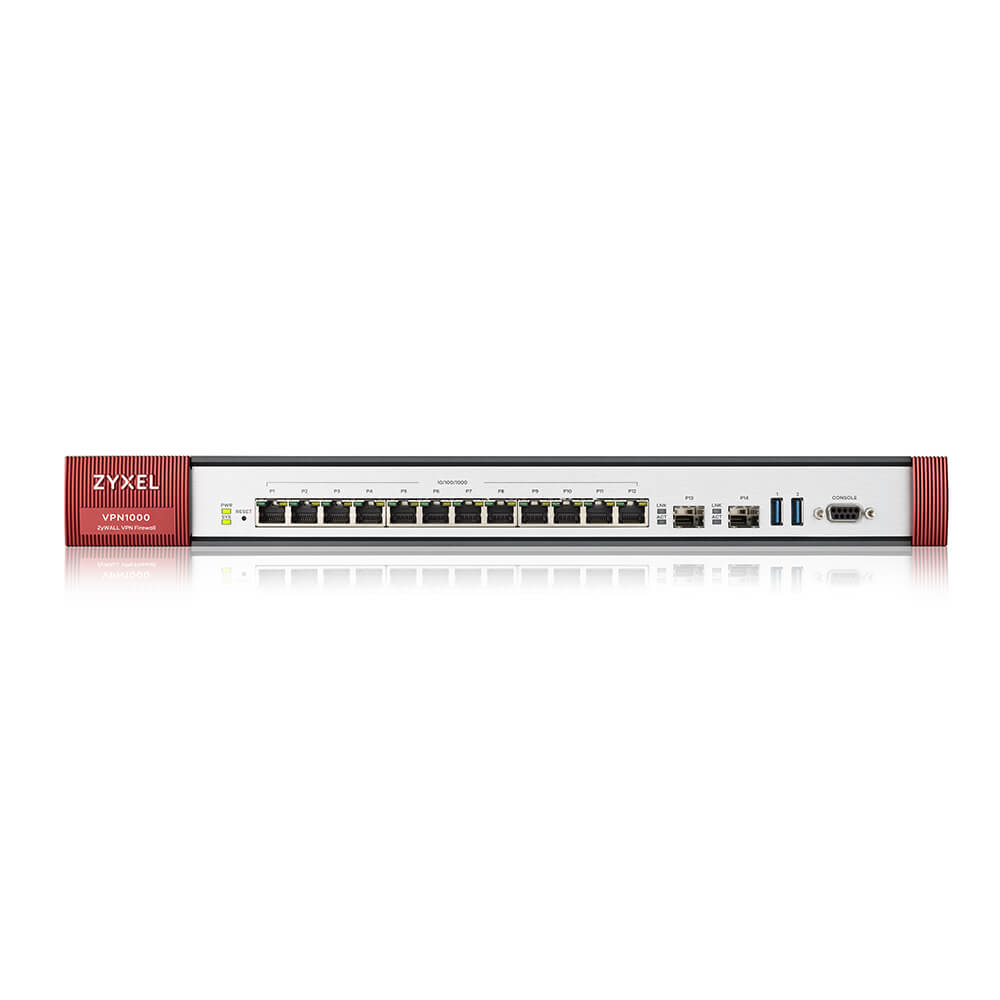

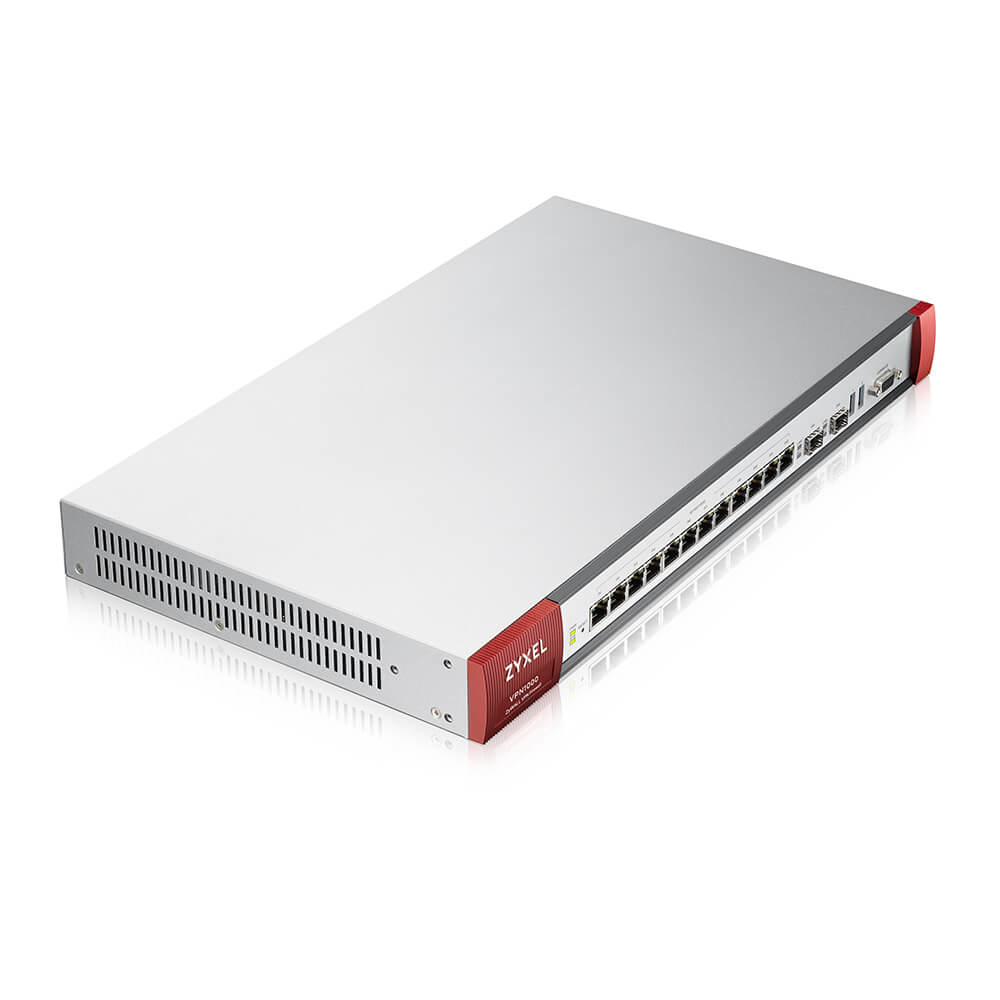

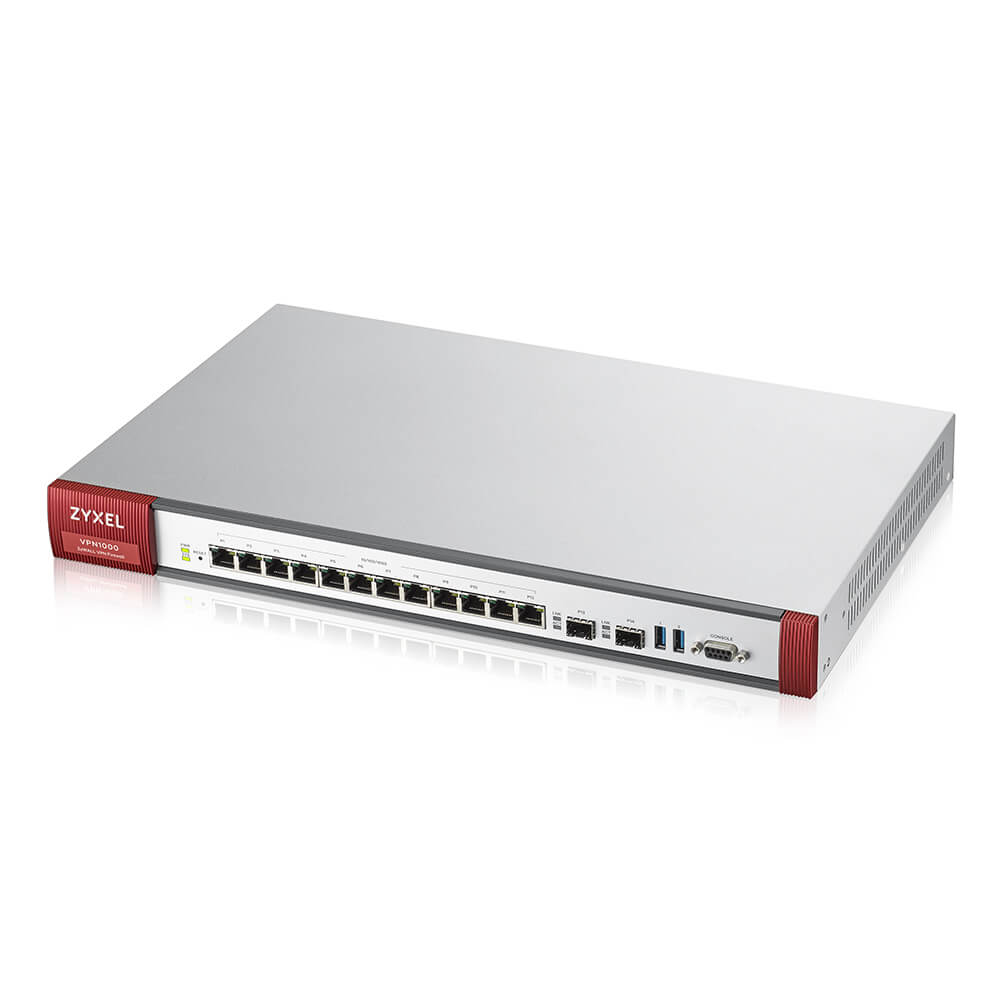

VPN1000 hardware firewall 8 Gbit/s
Model VPN1000Part no. VPN1000-EU0101FEAN 760559127077
44 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight3.3 kg
- Heat dissipation120.1 BTU/h
- Concurrent SSL/VPN connections (default)250
- Security algorithms3DES, 256-bit AES, DES
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.3 kg
- Heat dissipation
- 120.1 BTU/h
- Concurrent SSL/VPN connections (default)
- 250
- Security algorithms
- 3DES, 256-bit AES, DES
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- VPN1000
- Part number
- VPN1000-EU0101F
- EAN / UPC
- 760559127077, 4718937610105
- Also known as
- Zyxel VPN1000 hardware firewall 8 Gbit/s
Specifications
44 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Firewall throughput | 8 Gbit/s |
| VPN throughput | 1.5 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 120.1 BTU/h |
| Mean time between failures (MTBF) | 444930 h |
Network
| Specification | Value |
|---|---|
| Concurrent SSL/VPN connections (default) | 250 |
| Concurrent SSL/VPN connections (maximum) | 500 |
| VPN tunnels quantity | 1000 |
| Dynamic DNS (DDNS) | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Number of VLANs | 128 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 256-bit AES, DES |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Gigabit Ethernet (copper) ports quantity | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of console ports | 1 |
| SFP module slots quantity | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 46 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 (Class A),CE EMC (Class A),C-Tick (Class A),BSMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 400 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 519 mm |
| Package height | 392 mm |
| Package depth | 163 mm |
| Package weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 8000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| VPN throughput | 1500 Mbit/s |
