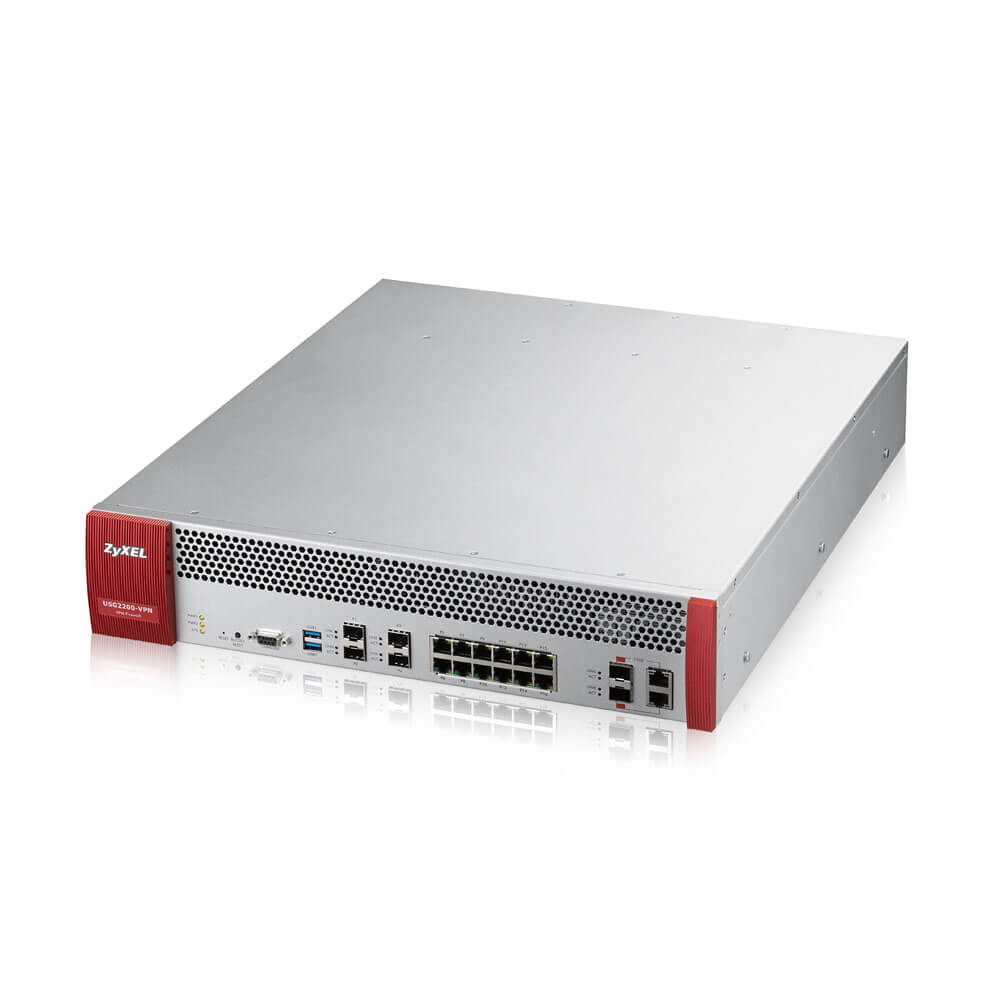

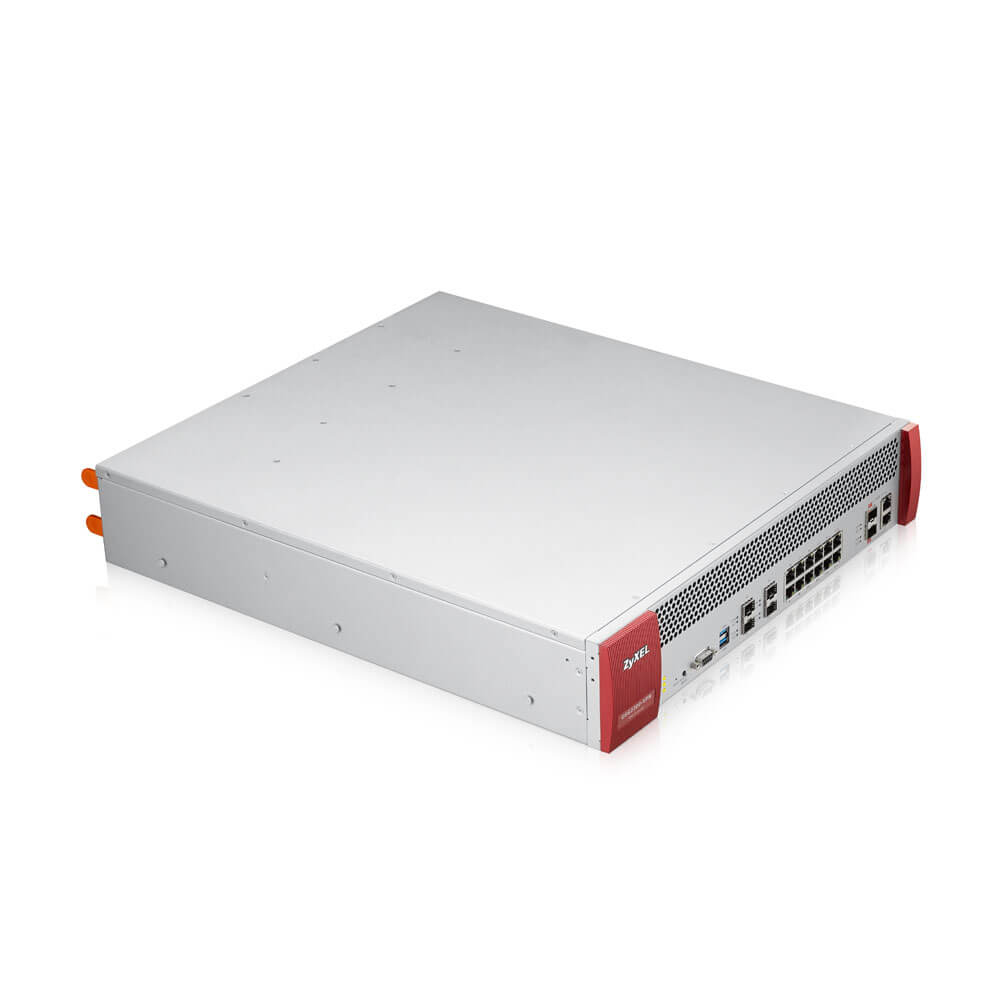

USG2200-VPN hardware firewall 12 Gbit/s
Model USG2200-VPNPart no. USG2200-VPN-EU0101FEAN 4718937592142
32 specifications
- ConnectivityWired
- Weight12.4 kg
- Firewall throughput12 Gbit/s
- Heat dissipation406.045 BTU/h
- Number of VPN connections250
- VPN supportIPSec, SSL, L2TP over IPSec
Overview
- Connectivity
- Wired
- Weight
- 12.4 kg
- Firewall throughput
- 12 Gbit/s
- Heat dissipation
- 406.045 BTU/h
- Number of VPN connections
- 250
- VPN support
- IPSec, SSL, L2TP over IPSec
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG2200-VPN
- Part number
- USG2200-VPN-EU0101F
- EAN / UPC
- 4718937592142
- Also known as
- Zyxel USG2200-VPN hardware firewall 12 Gbit/s
Specifications
32 specifications in 13 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 12 Gbit/s |
| VPN throughput | 1.8 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 406.045 BTU/h |
| Concurrent connections | 2000 |
| Mean time between failures (MTBF) | 280490 h |
Network
| Specification | Value |
|---|---|
| Number of VPN connections | 250 |
| Maximum Number of VPN connections supported | 1000 |
| Active TCP connections (max) | 1500000 |
| Number of VLANs | 128 |
Security
| Specification | Value |
|---|---|
| VPN support | IPSec, SSL, L2TP over IPSec |
Management features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 2 |

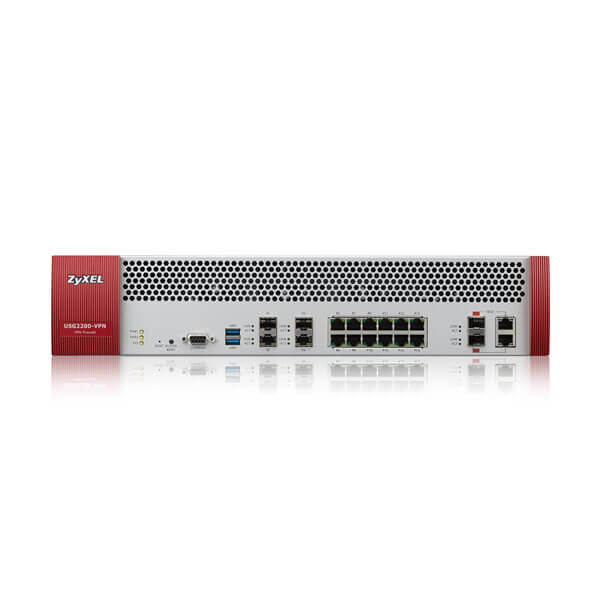

| Ethernet LAN (RJ-45) ports | 12 |
| SFP module slots quantity | 4 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |

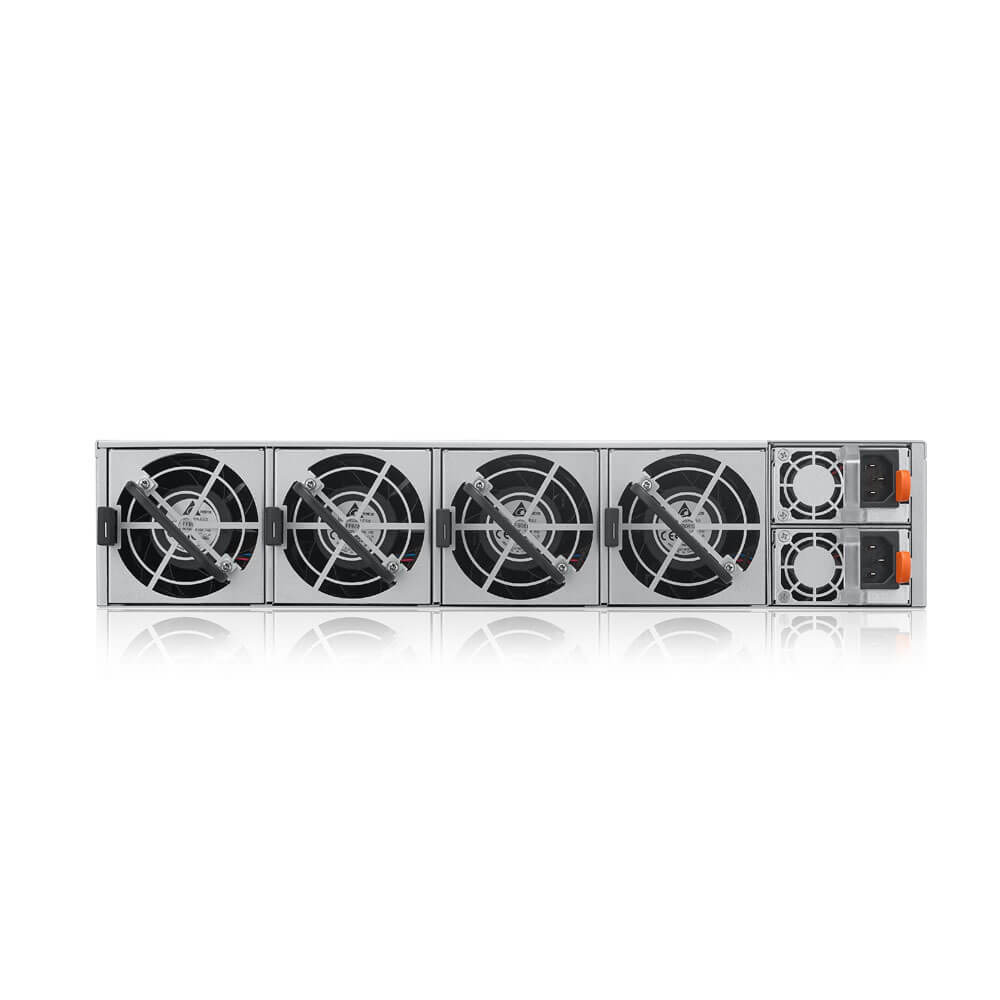

| Number of power supply units | 2 |
| Power supply | 200 W |
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438.5 x 500 x 89 mm |
| Weight | 12.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 12000 Mbit/s |
| VPN throughput | 1800 Mbit/s |
