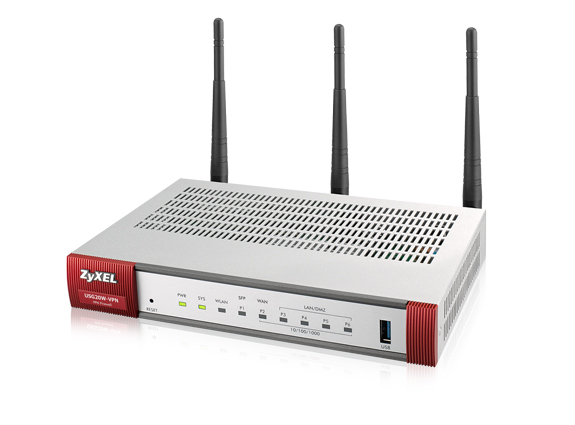

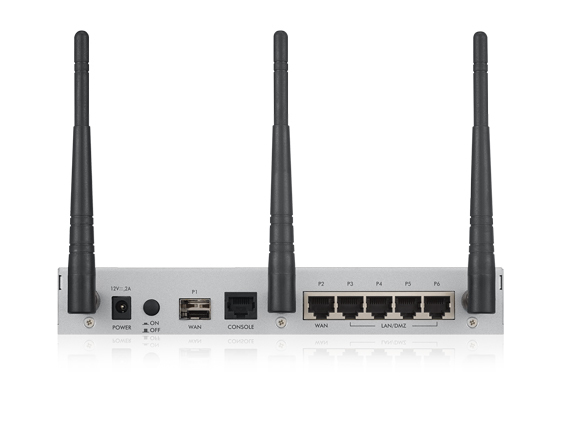

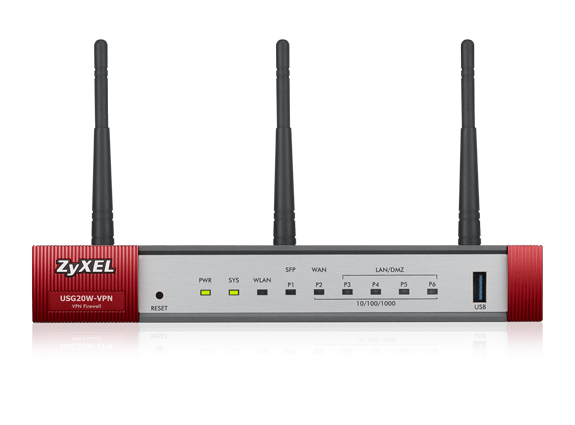

USG20W-VPN hardware firewall 0.35 Gbit/s
Model USG20W-VPNPart no. 2871
26 specifications
- ConnectivityWired & Wireless
- Weight1.14 kg
- Firewall throughput0.35 Gbit/s
- Heat dissipation61.38 BTU/h
- Wi-FiYes
- Power consumption (typical)18 W
Overview
- Connectivity
- Wired & Wireless
- Weight
- 1.14 kg
- Firewall throughput
- 0.35 Gbit/s
- Heat dissipation
- 61.38 BTU/h
- Wi-Fi
- Yes
- Power consumption (typical)
- 18 W
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG20W-VPN
- Part number
- 2871
- Also known as
- Zyxel USG20W-VPN hardware firewall 0.35 Gbit/s
Specifications
26 specifications in 9 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 0.35 Gbit/s |
| VPN throughput | 0.09 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 61.38 BTU/h |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 3 |
| Mean time between failures (MTBF) | 44000 h |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet DMZ ports quantity | 4 |
| SFP module slots quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 216 x 143 x 33 mm |
| Weight | 1.14 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), RS-232 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 350 Mbit/s |
| VPN throughput | 90 Mbit/s |
