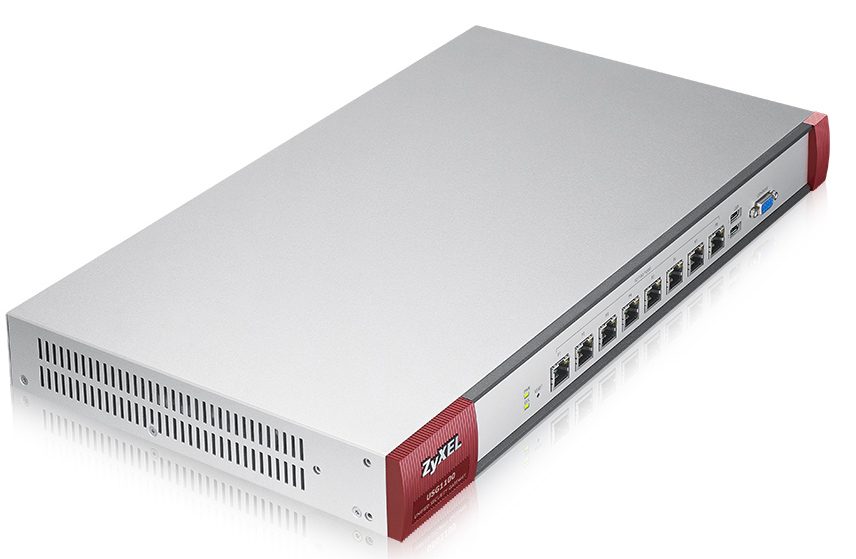

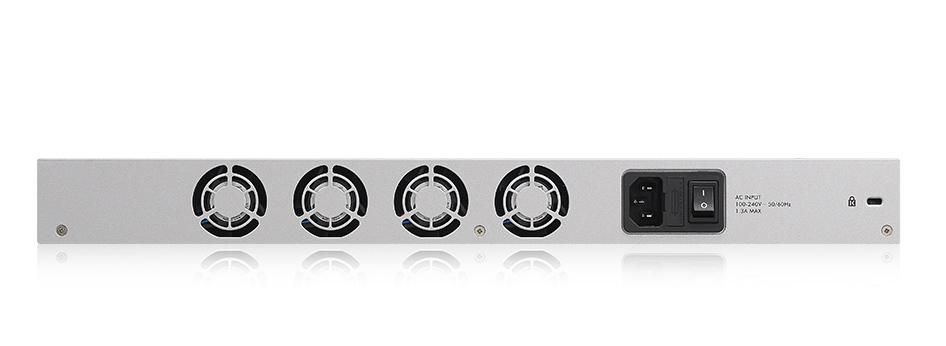

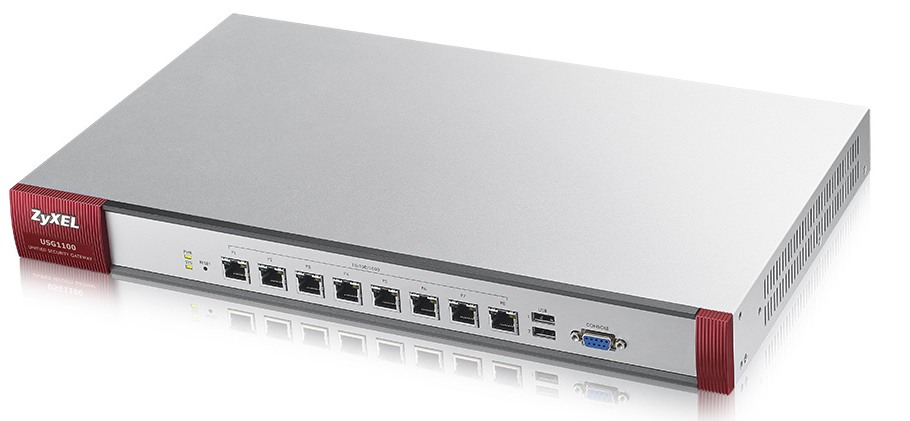

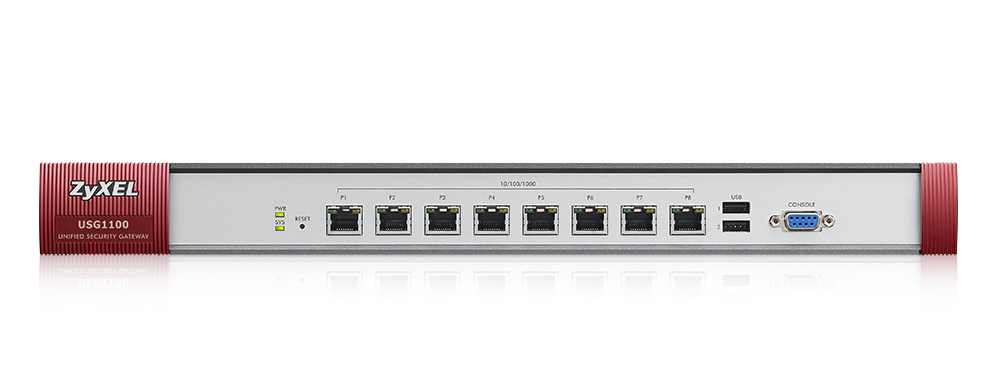

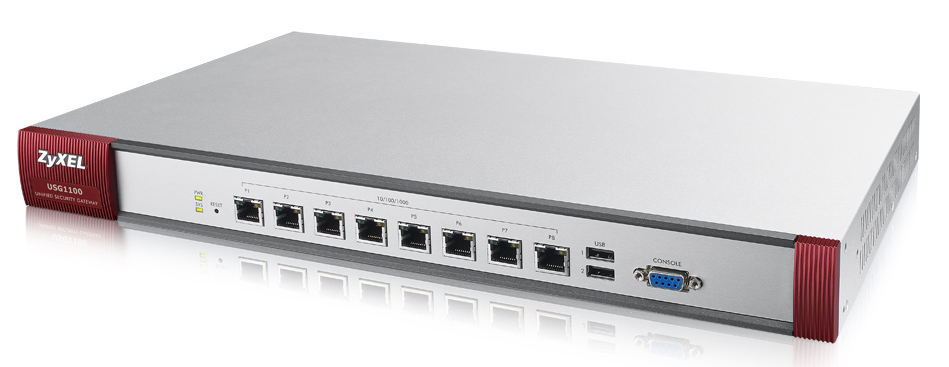

USG1100 hardware firewall 6 Gbit/s
Model USG1100Part no. USG1100-GB0102FEAN 4718937584833
27 specifications
- ConnectivityWired
- Weight3.3 kg
- Firewall throughput6 Gbit/s
- Concurrent connections300000
- Number of VPN connections255
- Rack mountingYes
Overview
- Connectivity
- Wired
- Weight
- 3.3 kg
- Firewall throughput
- 6 Gbit/s
- Concurrent connections
- 300000
- Number of VPN connections
- 255
- Rack mounting
- Yes
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG1100
- Part numbers
- USG1100-GB0102F, USG1100-EU0102F, USG1100
- EAN / UPC
- 4718937584833, 4718937578689, 760559121532, 7605591215326
- Also known as
- Zyxel USG1100 hardware firewall 6 Gbit/s
Specifications
27 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 6 Gbit/s |
| VPN throughput | 0.8 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Concurrent connections | 300000 |
| Mean time between failures (MTBF) | 560811.5 h |
Network
| Specification | Value |
|---|---|
| Number of VPN connections | 255 |
| Number of users | 55 user(s) |
| VPN tunnels quantity | 1000 |
| Number of VLANs | 128 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.3 A |
| Power consumption (typical) | 58.5 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE EMC, C-Tick, BSMI, LVD (EN60950-1), BSMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 250 x 44 mm |
| Weight | 3.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 6000 Mbit/s |
| VPN throughput | 800 Mbit/s |
