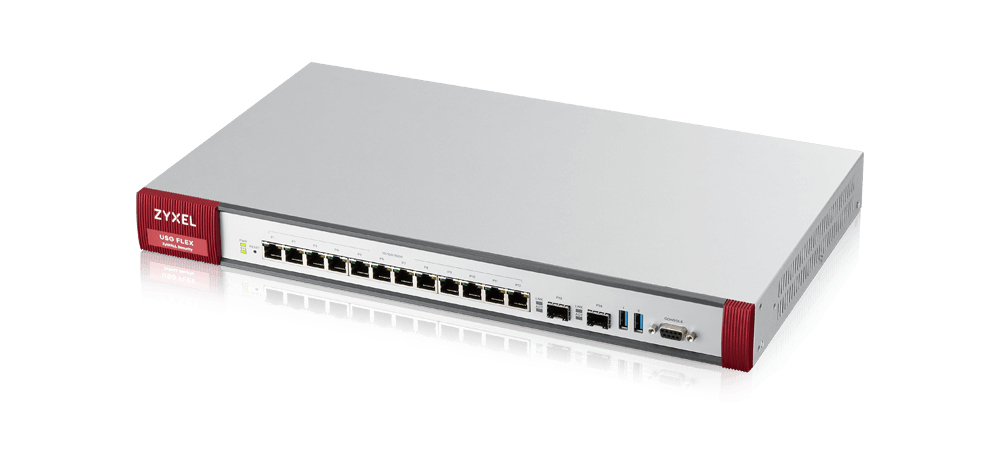

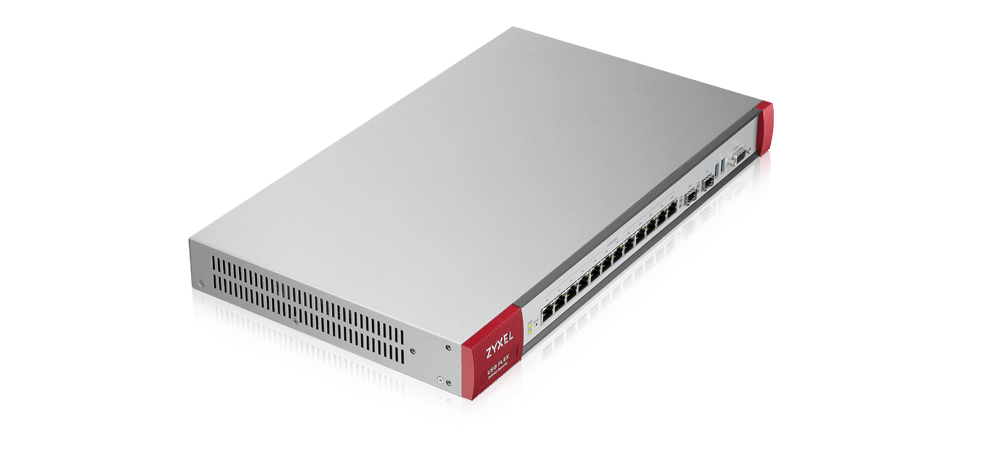

USG FLEX 700
Model USG FLEX 700Part no. USGFLEX700-EU0102FEAN 760559127350
41 specifications
- ConnectivityWired
- Weight3.3 kg
- Firewall throughput5.4 Gbit/s
- Heat dissipation120.1 BTU/h
- Number of users150 user(s)
- Security algorithmsHTTPS, IPSec, SSL/TLS
Overview
- Connectivity
- Wired
- Weight
- 3.3 kg
- Firewall throughput
- 5.4 Gbit/s
- Heat dissipation
- 120.1 BTU/h
- Number of users
- 150 user(s)
- Security algorithms
- HTTPS, IPSec, SSL/TLS
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG FLEX 700
- Part numbers
- USGFLEX700-EU0102F, USGFLEX700-EU0101F
- EAN / UPC
- 760559127350, 4718937614851, 4718937614844
- Also known as
- Zyxel USG FLEX 700 hardware firewall 5.4 Gbit/s
Specifications
41 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 5.4 Gbit/s |
| VPN throughput | 1.1 Gbit/s |
| VPN (IMIX) throughput | 550 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 120.1 BTU/h |
Network
| Specification | Value |
|---|---|
| Number of users | 150 user(s) |
| VPN tunnels quantity | 500 |
| Active TCP connections (max) | 1600000 |
| Number of VLANs | 128 |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS, IPSec, SSL/TLS |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
Management features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Web-based management | Yes |

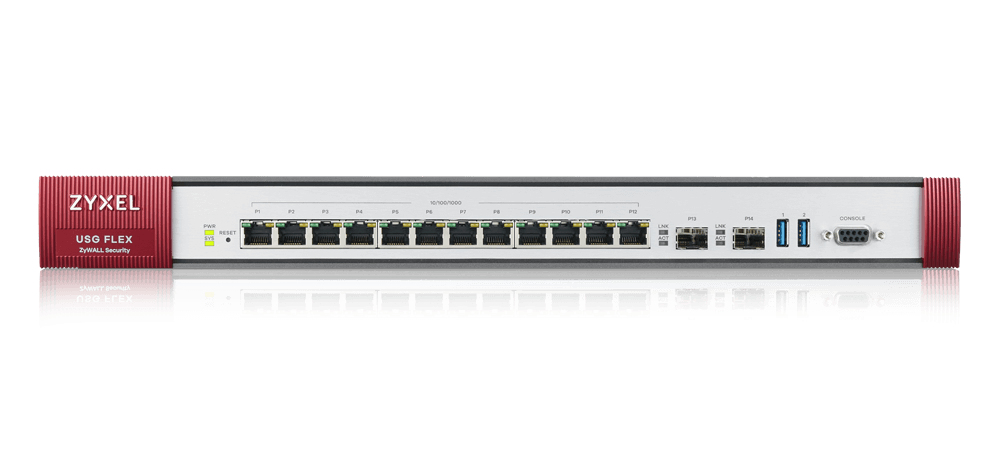

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 12 |
| Console port | RJ-45 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| SFP module slots quantity | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 46 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15 (A), CE EMC (A), C-Tick (A), BSMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 519 mm |
| Package height | 392 mm |
| Package depth | 163 mm |
| Package weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 5400 Mbit/s |
| VPN throughput | 1100 Mbit/s |
