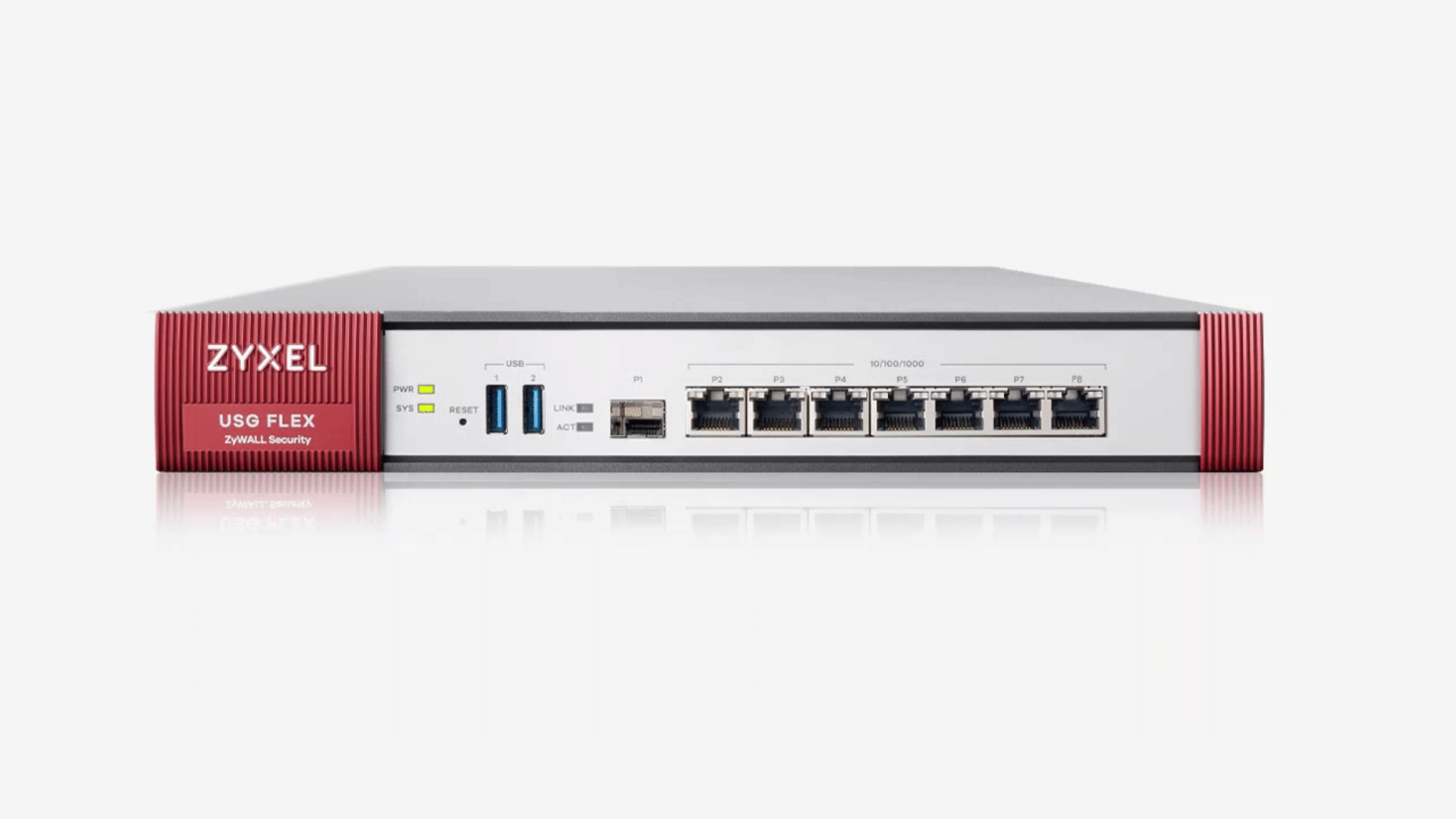

USG Flex 200
Model USG Flex 200Part no. USGFLEX200-EU0101FEAN 4718937611997
37 specifications
- Weight1.4 kg
- Firewall throughput1.8 Gbit/s
- Heat dissipation45.38 BTU/h
- Concurrent SSL/VPN connections (default)60
- Security algorithmsIPSEC, SSL/TLS
- URL filteringYes
Overview
- Weight
- 1.4 kg
- Firewall throughput
- 1.8 Gbit/s
- Heat dissipation
- 45.38 BTU/h
- Concurrent SSL/VPN connections (default)
- 60
- Security algorithms
- IPSEC, SSL/TLS
- URL filtering
- Yes
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG Flex 200
- Part numbers
- USGFLEX200-EU0101F, USGFLEX200-EU0102F
- EAN / UPC
- 4718937611997, 760559127251, 4718937612000
- Also known as
- Zyxel USG Flex 200 hardware firewall 1.8 Gbit/s
Specifications
37 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 1.8 Gbit/s |
| VPN throughput | 0.45 Gbit/s |
| IPSec VPN throughput | 100 Gbit/s |
| SSL performance | 60 transactions/sec |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 45.38 BTU/h |
| Mean time between failures (MTBF) | 529688.2 h |
Network
| Specification | Value |
|---|---|
| Concurrent SSL/VPN connections (default) | 60 |
| Concurrent SSL/VPN connections (maximum) | 200 |
| Active TCP connections (max) | 600000 |
| Number of VLANs | 16 |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSEC, SSL/TLS |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
Management features
| Specification | Value |
|---|---|
| URL filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Console port | DB9 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of console ports | 1 |
| Ethernet DMZ ports quantity | 4 |
| SFP module slots quantity | 1 |
Design
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| Input current | 2.5 A |
| Power consumption (max) | 13.3 W |
Certificates
| Specification | Value |
|---|---|
| Certification | DCC, CE, C-Tick, LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 272 mm |
| Depth | 187 mm |
| Height | 36 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 427 mm |
| Package height | 247 mm |
| Package depth | 73 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1800 Mbit/s |
| VPN throughput | 450 Mbit/s |
