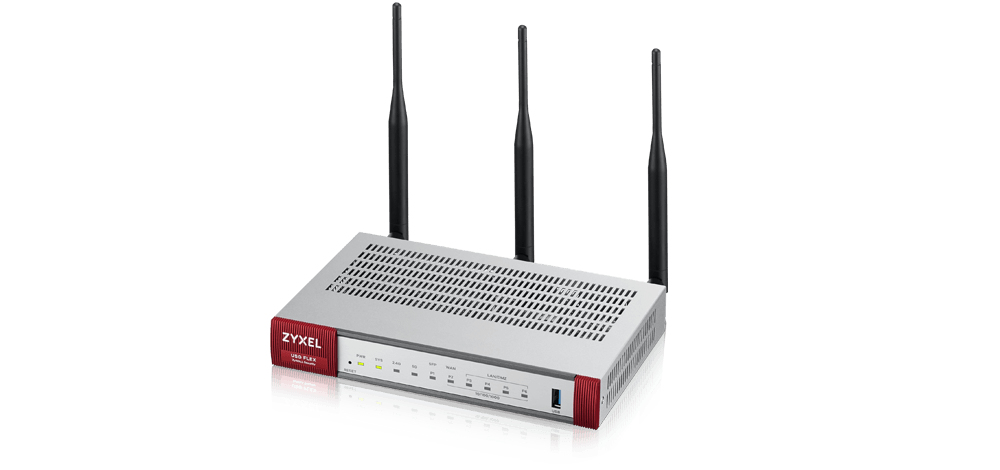

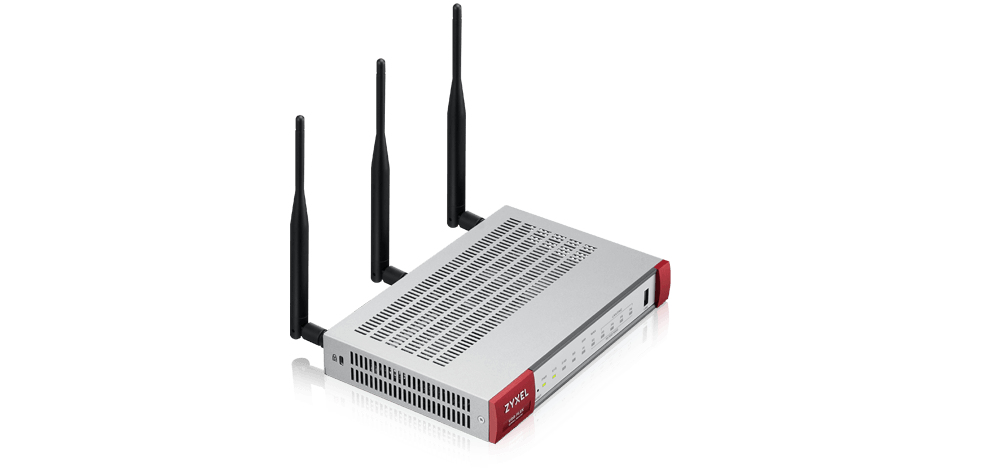

USG FLEX 100W
Model USG FLEX 100WPart no. USGFLEX100W-EU0102FEAN 4718937614783
35 specifications
- ConnectivityWired & Wireless
- Weight850 g
- Firewall throughput0.9 Gbit/s
- Mean time between failures (MTBF)989810.8 h
- Wi-FiYes
- Security algorithmsHTTPS, IPSec, SSL/TLS
Overview
- Connectivity
- Wired & Wireless
- Weight
- 850 g
- Firewall throughput
- 0.9 Gbit/s
- Mean time between failures (MTBF)
- 989810.8 h
- Wi-Fi
- Yes
- Security algorithms
- HTTPS, IPSec, SSL/TLS
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG FLEX 100W
- Part numbers
- USGFLEX100W-EU0102F, USGFLEX100W-EU0101F
- EAN / UPC
- 4718937614783, 4718937614776
- Also known as
- Zyxel USG FLEX 100W hardware firewall 0.9 Gbit/s
Specifications
35 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 0.9 Gbit/s |
| VPN throughput | 0.27 Gbit/s |
| VPN (IMIX) throughput | 100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 989810.8 h |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Number of users | 30 user(s) |
| VPN tunnels quantity | 40 |
| Active TCP connections (max) | 300000 |
| Number of VLANs | 8 |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS, IPSec, SSL/TLS |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
Management features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet DMZ ports quantity | 4 |
| SFP module slots quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15 (B), CE EMC (B),BSMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 147.3 mm |
| Height | 33 mm |
| Weight | 850 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 284 mm |
| Package height | 190 mm |
| Package depth | 100 mm |
| Package weight | 1.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 900 Mbit/s |
| VPN throughput | 270 Mbit/s |
