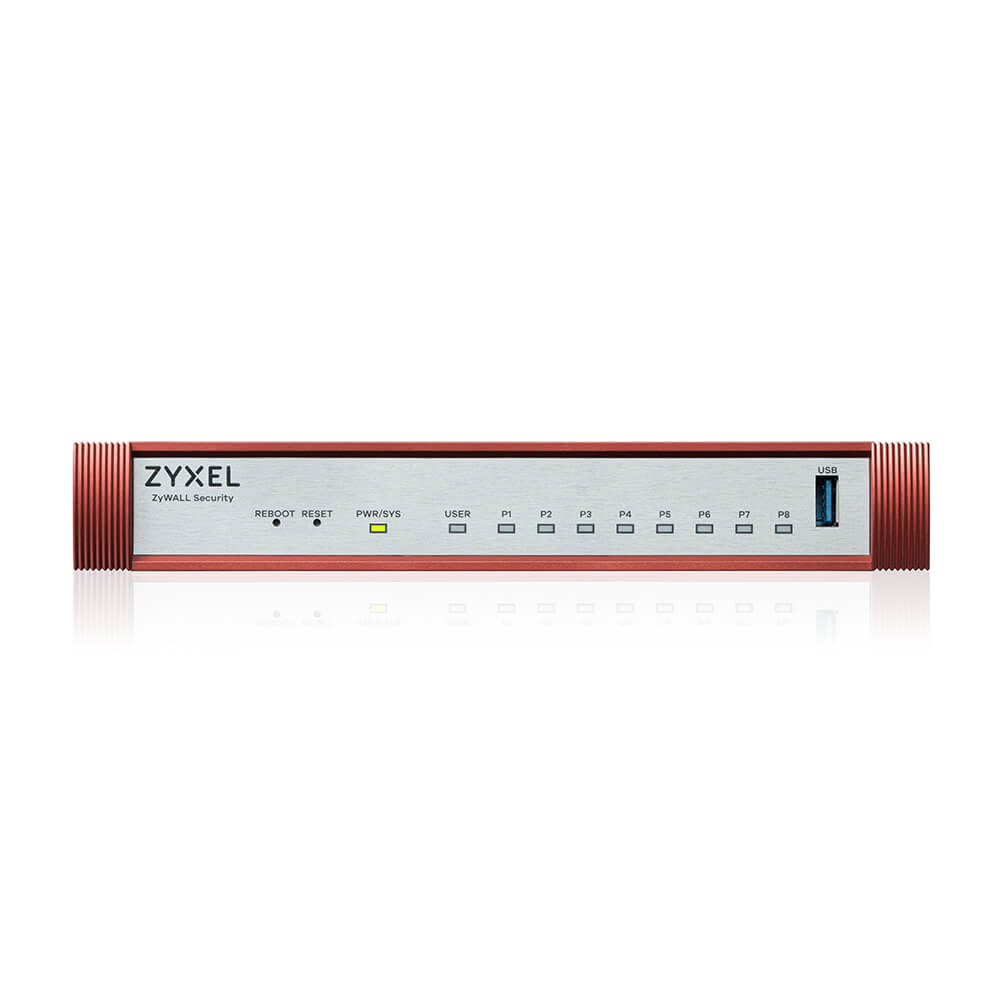

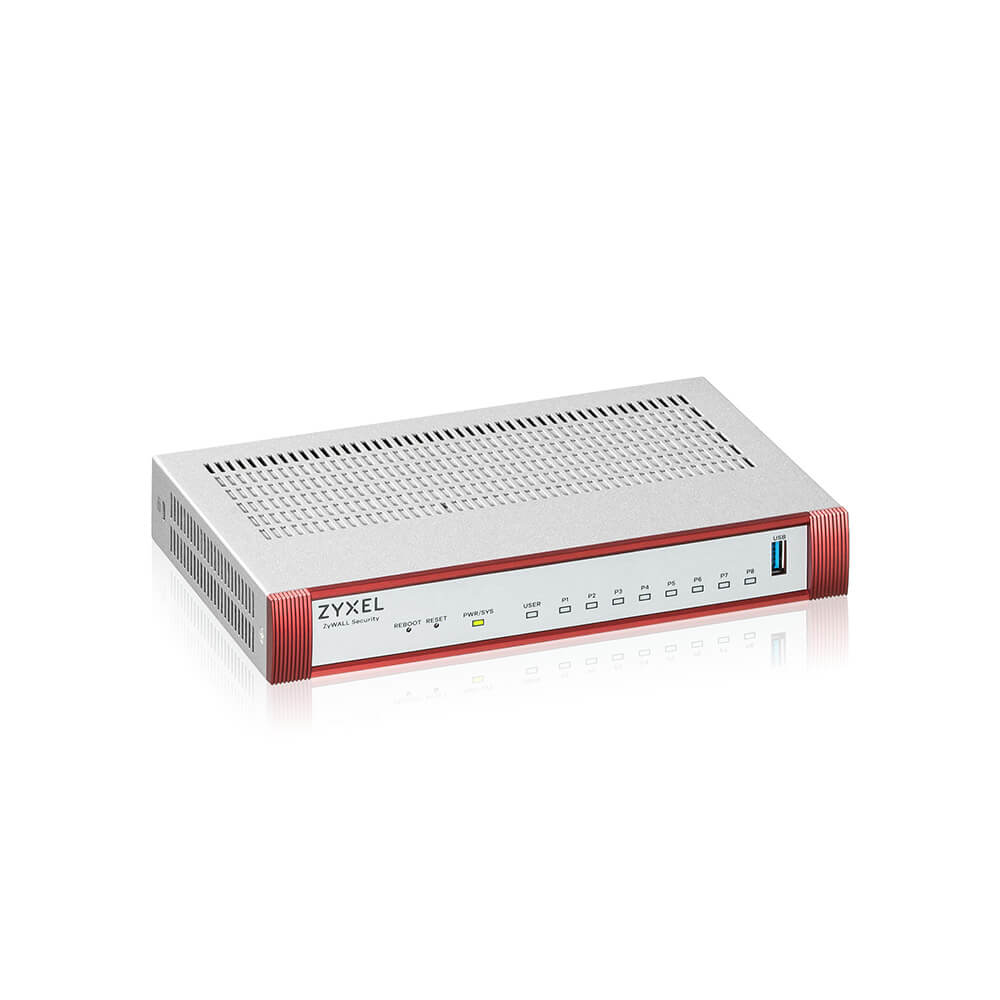

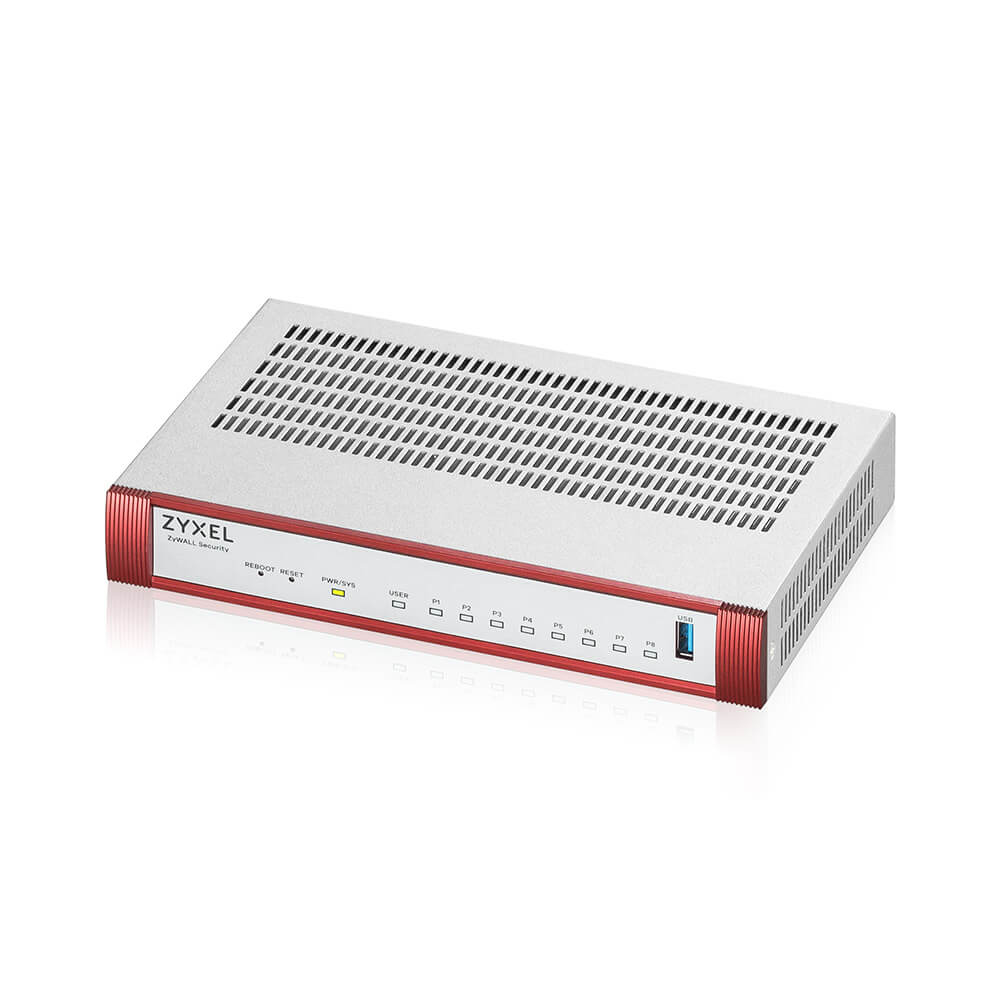

USG FLEX 100H
Model USG FLEX 100HPart no. USGFLEX100H-EU0101FEAN 760559128838
31 specifications
- ConnectivityWired
- Weight1.04 kg
- Firewall throughput3 Gbit/s
- Heat dissipation40.365 BTU/h
- VPN tunnels quantity50
- VPN supportIKEv2, IPSec, SSL
Overview
- Connectivity
- Wired
- Weight
- 1.04 kg
- Firewall throughput
- 3 Gbit/s
- Heat dissipation
- 40.365 BTU/h
- VPN tunnels quantity
- 50
- VPN support
- IKEv2, IPSec, SSL
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG FLEX 100H
- Part number
- USGFLEX100H-EU0101F
- EAN / UPC
- 760559128838, 4718937622429
- Also known as
- Zyxel USG FLEX 100H hardware firewall 3 Gbit/s
Specifications
31 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 3 Gbit/s |
| VPN throughput | 0.75 Gbit/s |
| IPS/IDS throughput | 1500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 40.365 BTU/h |
Network
| Specification | Value |
|---|---|
| VPN tunnels quantity | 50 |
| Number of VLANs | 16 |
Security
| Specification | Value |
|---|---|
| VPN support | IKEv2, IPSec, SSL |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |

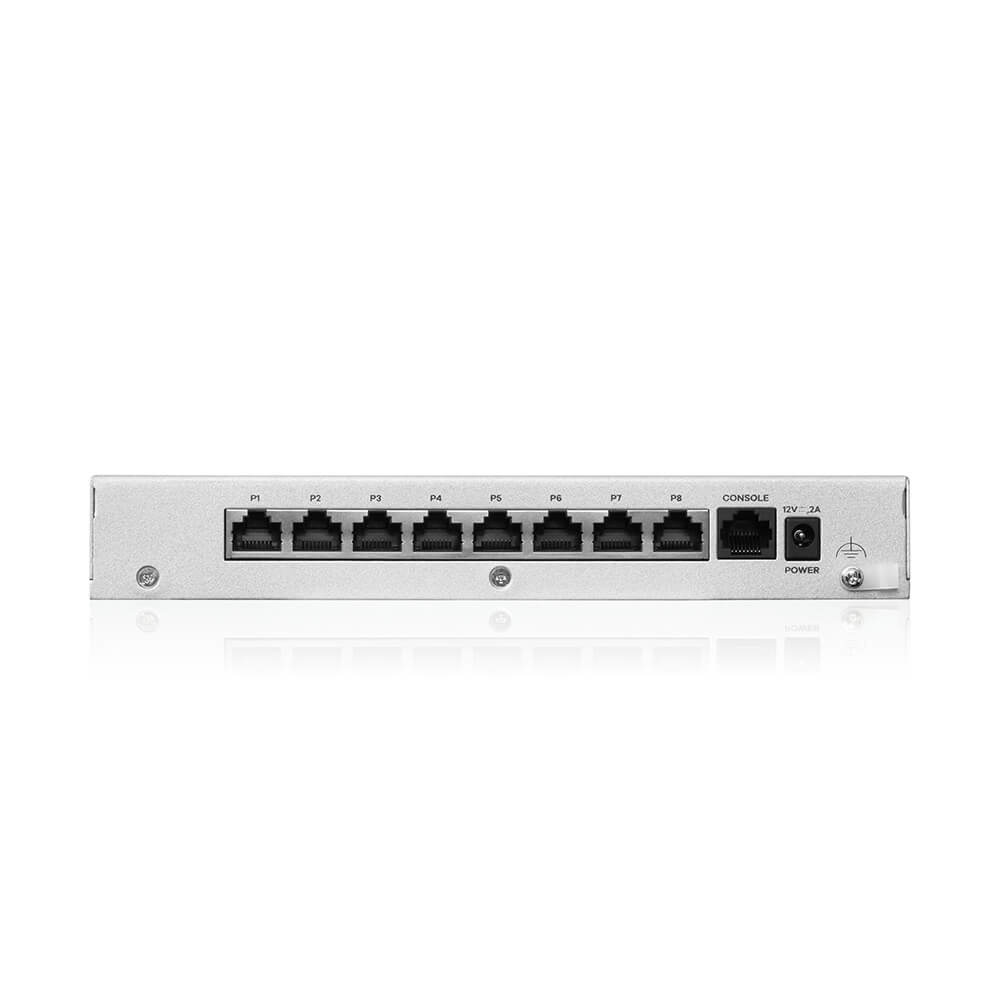

| Ethernet LAN (RJ-45) ports | 8 |
| Console port | RJ-45 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| DC input voltage | 12 V |
| Power consumption (max) | 17 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 143 mm |
| Height | 33 mm |
| Weight | 1.04 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 278 mm |
| Package height | 189 mm |
| Package depth | 99 mm |
| Package weight | 1.62 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 3000 Mbit/s |
| VPN throughput | 750 Mbit/s |
