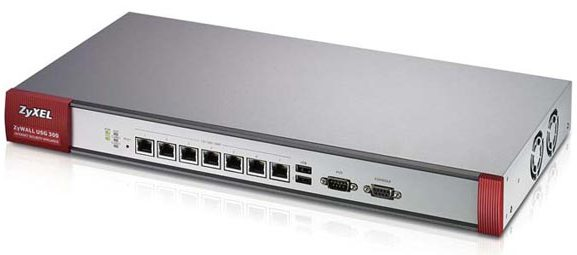

USG 300
Model USG 300Part no. 91-009-034012BEAN 4718937536221
33 specifications
- ConnectivityWired
- Weight2.8 kg
- Firewall throughput0.35 Gbit/s
- Mean time between failures (MTBF)180382 h
- Wi-FiNo
- Security algorithms3DES, 802.1x RADIUS, DES
Overview
- Connectivity
- Wired
- Weight
- 2.8 kg
- Firewall throughput
- 0.35 Gbit/s
- Mean time between failures (MTBF)
- 180382 h
- Wi-Fi
- No
- Security algorithms
- 3DES, 802.1x RADIUS, DES
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG 300
- Part number
- 91-009-034012B
- EAN / UPC
- 4718937536221
- Also known as
- Zyxel USG 300 hardware firewall 0.35 Gbit/s
Specifications
33 specifications in 11 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 0.35 Gbit/s |
| VPN throughput | 0.13 Gbit/s |
| Maximum firewall connections | 60000 |
| Maximum firewall connections per second | 1500 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 180382 h |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Networking standards | IEEE 802.1Q |
| Number of users | 25 user(s) |
| VPN tunnels quantity | 200 |
| DHCP client | Yes |
| DHCP server | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 802.1x RADIUS, DES |
| Firewall security | ICSA, SIP/H.323 NAT, ALG, DoS/DDoS |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP/FTP/SMTP/POP3/IMAP4 |
| Routing protocols | OSPF, RIP-1, RIP-2 |
| Supported network protocols | IPv6 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 7 |
| ExpressCard slot | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.5 A |
| Power consumption (typical) | 35 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part15, CE EMC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 201 x 42 mm |
| Weight | 2.8 kg |
Other features
| Specification | Value |
|---|---|
| Safety | Syslog |
| Firewall throughput | 350 Mbit/s |
| VPN throughput | 130 Mbit/s |
