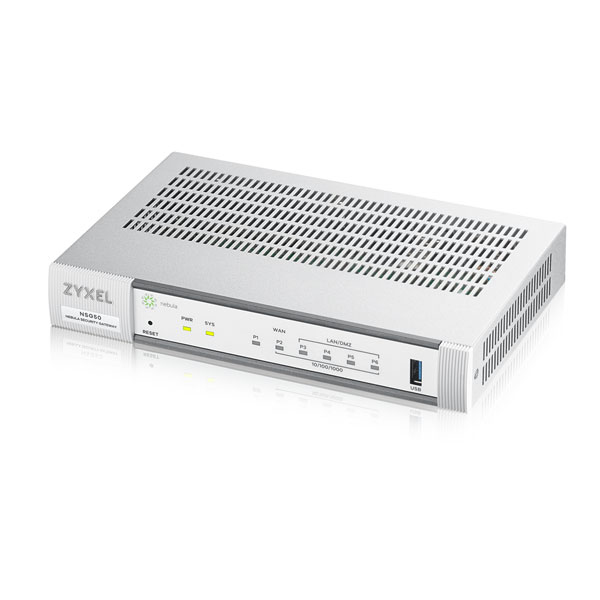

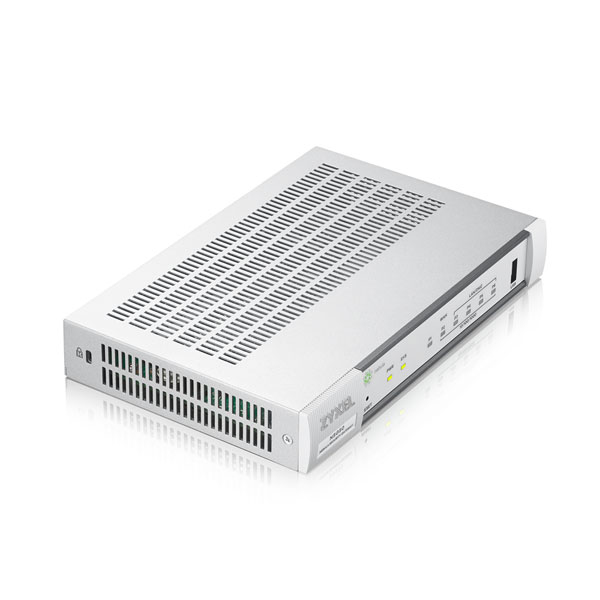

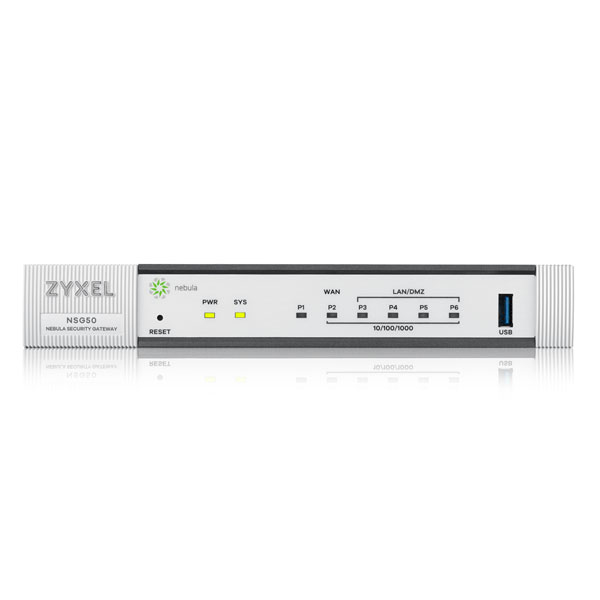

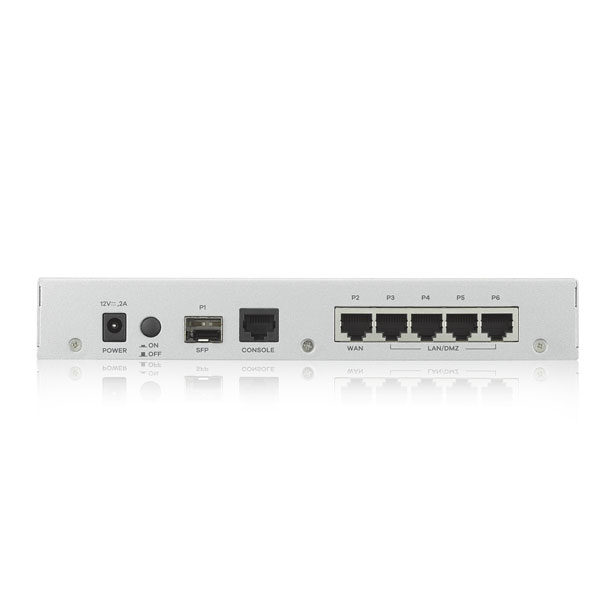

NSG50 hardware firewall
Model NSG50Part no. NSG50-ZZ0101FEAN 4718937596003
19 specifications
- Weight1.04 kg
- VPN throughput0.07 Gbit/s
- Heat dissipation40.95 BTU/h
- Number of VLANs8
- VPN supportIPSec, L2TP over IPSec
- Ethernet LAN data rates10,100,1000 Mbit/s
Overview
- Weight
- 1.04 kg
- VPN throughput
- 0.07 Gbit/s
- Heat dissipation
- 40.95 BTU/h
- Number of VLANs
- 8
- VPN support
- IPSec, L2TP over IPSec
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- NSG50
- Part number
- NSG50-ZZ0101F
- EAN / UPC
- 4718937596003
- Also known as
- Zyxel NSG50 hardware firewall
Specifications
19 specifications in 10 groups
Data transmission
| Specification | Value |
|---|---|
| VPN throughput | 0.07 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 40.95 BTU/h |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Number of VLANs | 8 |
Security
| Specification | Value |
|---|---|
| Firewall security | Yes |
| VPN support | IPSec, L2TP over IPSec |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 216 x 143 x 33 mm |
| Weight | 1.04 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 276 mm |
| Package height | 98 mm |
| Package depth | 185 mm |
| Package weight | 1.41 kg |
Other features
| Specification | Value |
|---|---|
| VPN throughput | 70 Mbit/s |
