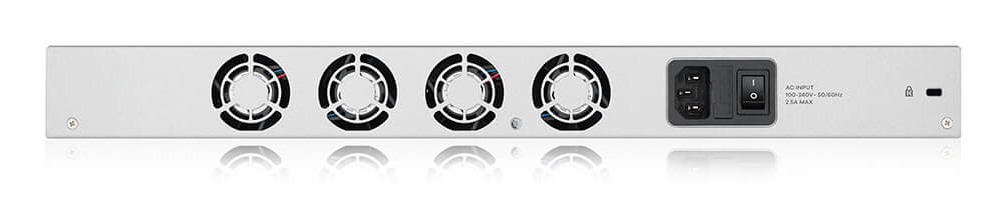

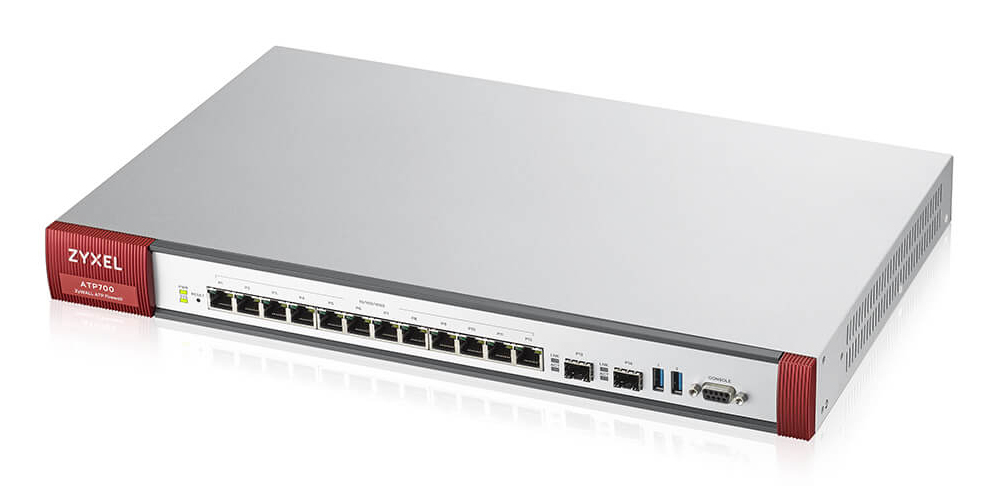

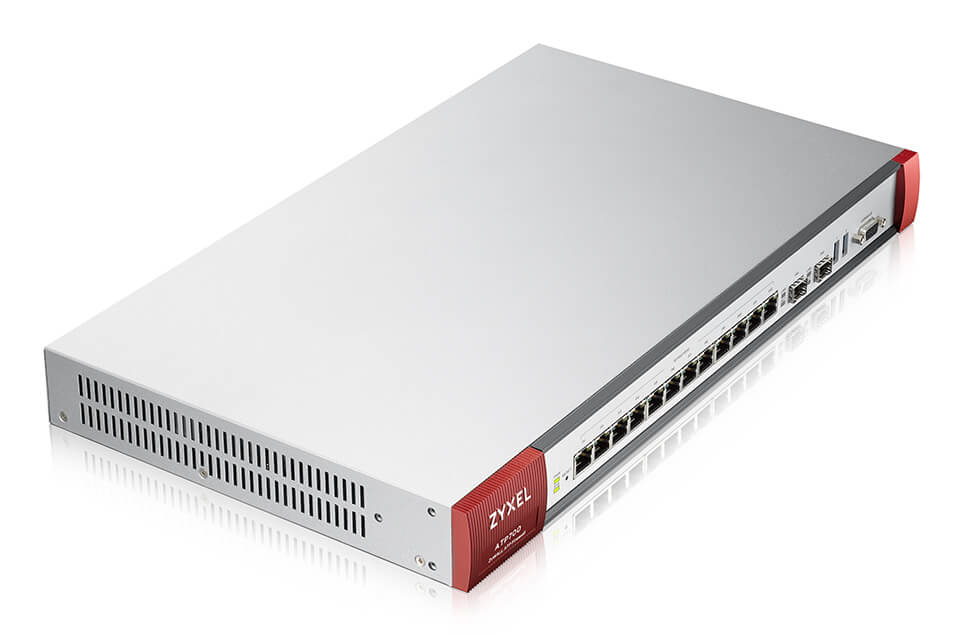

ATP700 hardware firewall 1U 6 Gbit/s
Model ATP700Part no. ATP700-EU0102FEAN 4718937610525
41 specifications
- ConnectivityWired
- Noise25.3 dB
- Type1U
- Weight3.3 kg
- Firewall throughput6 Gbit/s
- Heat dissipation120.1 BTU/h
Overview
- Connectivity
- Wired
- Noise
- 25.3 dB
- Type
- 1U
- Weight
- 3.3 kg
- Firewall throughput
- 6 Gbit/s
- Heat dissipation
- 120.1 BTU/h
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- ATP700
- Part numbers
- ATP700-EU0102F, ATP700-GB0102F
- EAN / UPC
- 4718937610525, 4718937634958
- Also known as
- Zyxel ATP700 hardware firewall 1U 6 Gbit/s
Specifications
41 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 6 Gbit/s |
| VPN throughput | 1.2 Gbit/s |
| Maximum firewall connections | 1600000 |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 120.1 BTU/h |
| Concurrent connections | 1000 |
| Concurrent users | 150 user(s) |
| Noise level | 25.3 dB |
| Mean time between failures (MTBF) | 947736 h |
Network
| Specification | Value |
|---|---|
| Number of VLANs | 128 |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS, IPSec, SSL/TLS |
| Stateful Packet Inspection (SPI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 12 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of console ports | 1 |
| SFP module slots quantity | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 46 W |
Certificates
| Specification | Value |
|---|---|
| Certification | LVD, BSMI, FCC, CE EMC, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 519 mm |
| Package height | 392 mm |
| Package depth | 163 mm |
| Package weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 6000 Mbit/s |
| VPN throughput | 1200 Mbit/s |
