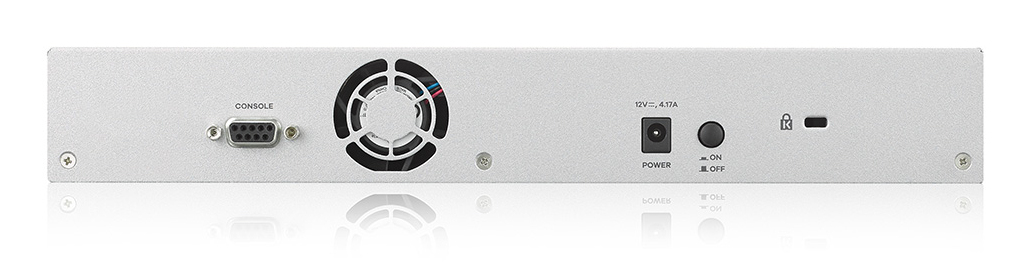

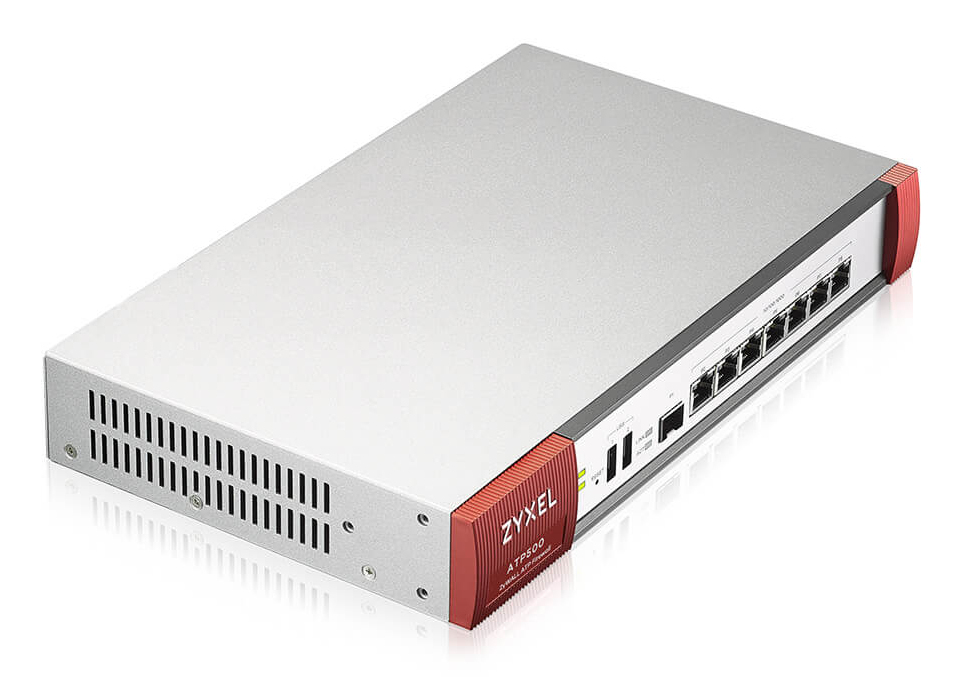

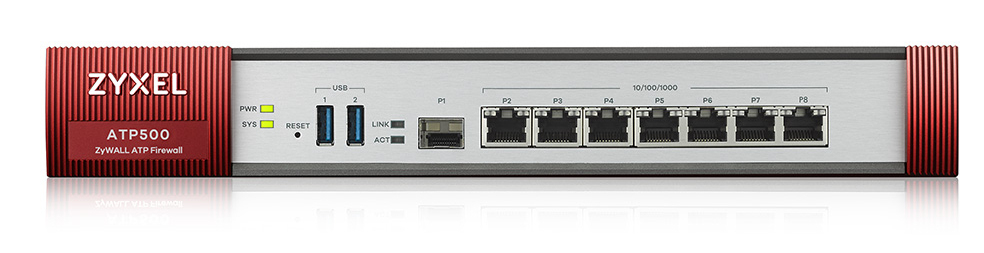

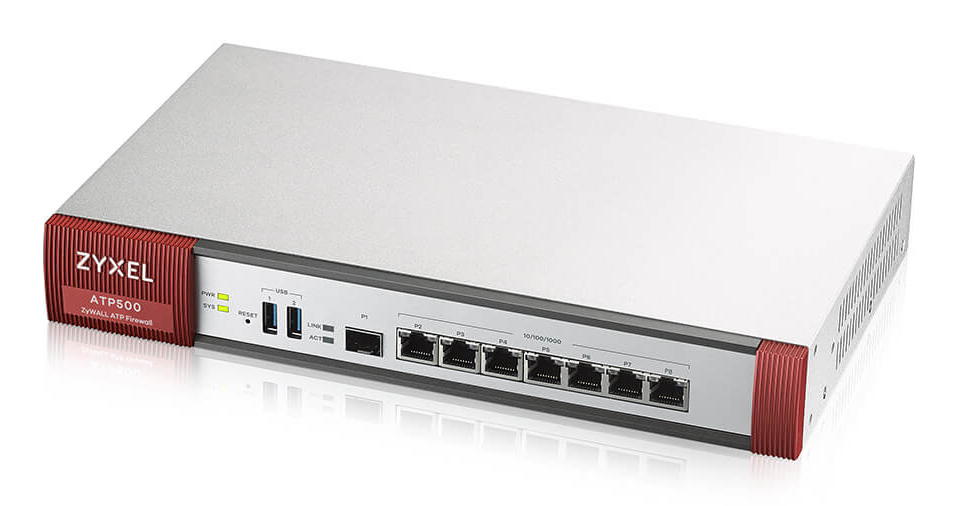

ATP500 hardware firewall Desktop 2.6 Gbit/s
Model ATP500Part no. ATP500-EU0102FEAN 4718937599264
29 specifications
- ConnectivityWired
- TypeDesktop
- Weight1.65 kg
- Firewall throughput2.6 Gbit/s
- Heat dissipation82.23 BTU/h
- Active TCP connections (max)1000000
Overview
- Connectivity
- Wired
- Type
- Desktop
- Weight
- 1.65 kg
- Firewall throughput
- 2.6 Gbit/s
- Heat dissipation
- 82.23 BTU/h
- Active TCP connections (max)
- 1000000
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- ATP500
- Part number
- ATP500-EU0102F
- EAN / UPC
- 4718937599264
- Also known as
- Zyxel ATP500 hardware firewall Desktop 2.6 Gbit/s
Specifications
29 specifications in 13 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 2.6 Gbit/s |
| VPN throughput | 0.9 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 82.23 BTU/h |
| Mean time between failures (MTBF) | 529688.2 h |
Network
| Specification | Value |
|---|---|
| Active TCP connections (max) | 1000000 |
| Number of VLANs | 64 |
Security
| Specification | Value |
|---|---|
| Content filtering | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 7 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | Desktop |
Power
| Specification | Value |
|---|---|
| Input current | 4.17 A |
| Power consumption (max) | 24.1 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI, LVD (EN60950-1), BSMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 300 x 188 x 44 mm |
| Weight | 1.65 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 351 mm |
| Package height | 245 mm |
| Package depth | 152 mm |
| Package weight | 2.83 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 2600 Mbit/s |
| VPN throughput | 900 Mbit/s |
