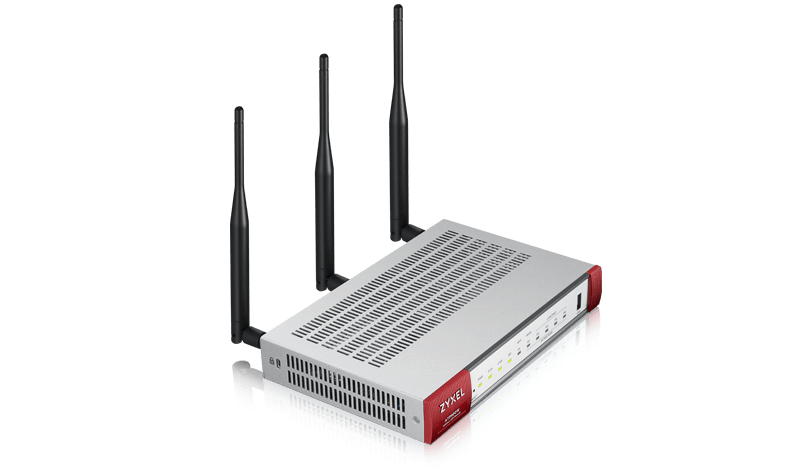

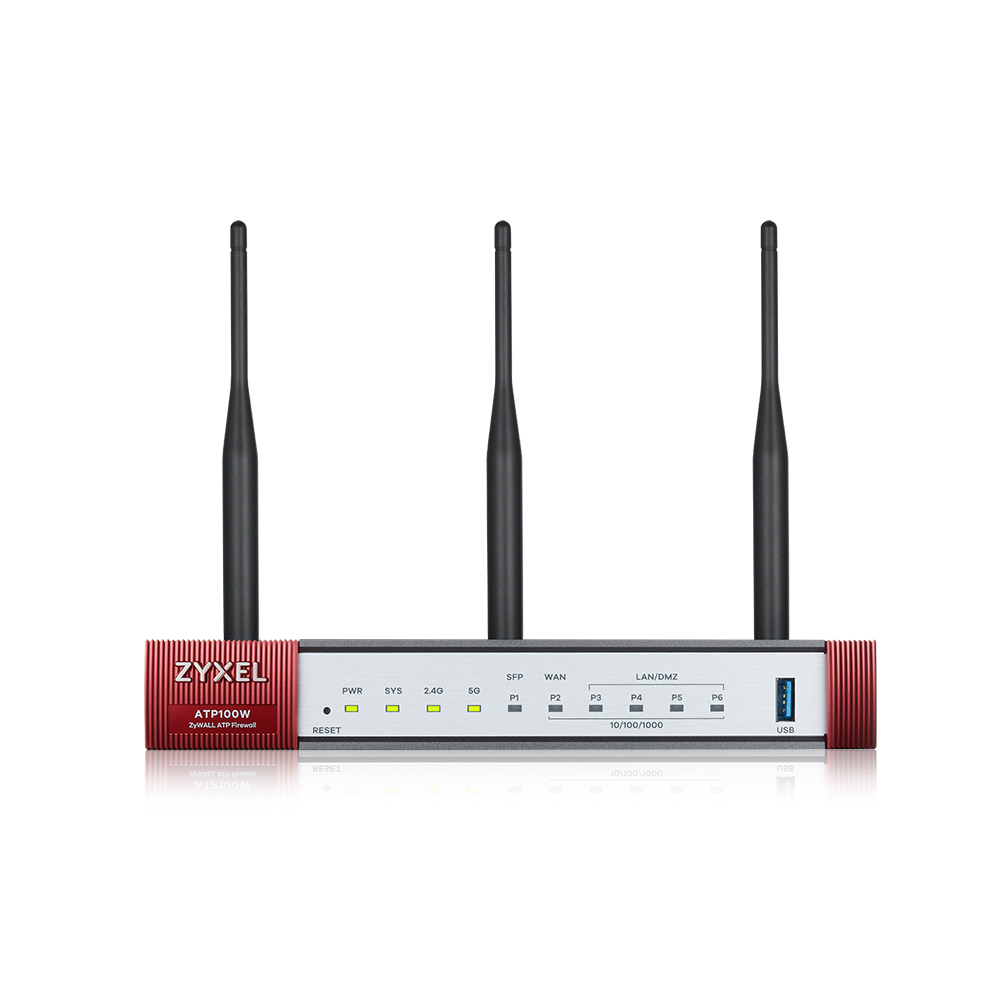

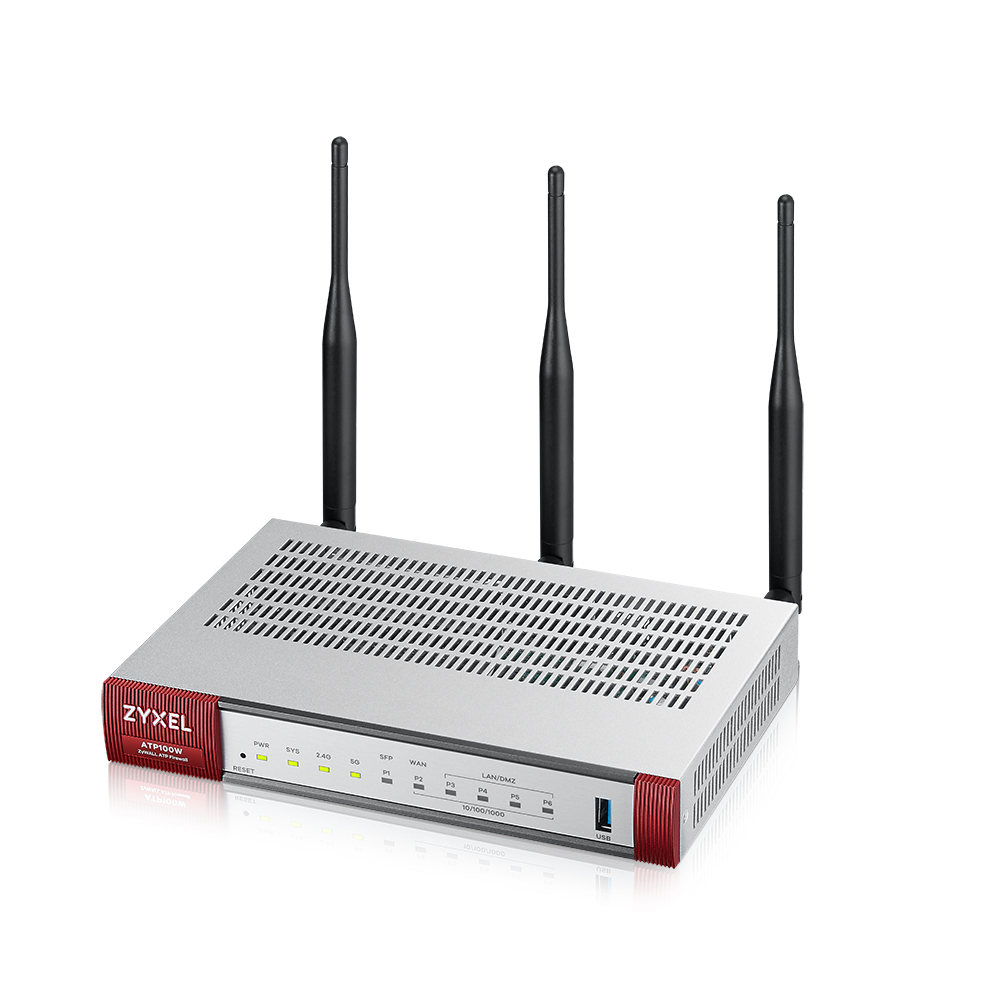

ATP100W hardware firewall Desktop 1 Gbit/s
Model ATP100WPart no. ATP100W-EU0102FEAN 4718937608232
43 specifications
- ConnectivityWired & Wireless
- TypeDesktop
- Weight850 g
- Firewall throughput1 Gbit/s
- Heat dissipation42.65 BTU/h
- Wi-FiYes
Overview
- Connectivity
- Wired & Wireless
- Type
- Desktop
- Weight
- 850 g
- Firewall throughput
- 1 Gbit/s
- Heat dissipation
- 42.65 BTU/h
- Wi-Fi
- Yes
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- ATP100W
- Part number
- ATP100W-EU0102F
- EAN / UPC
- 4718937608232
- Also known as
- Zyxel ATP100W hardware firewall Desktop 1 Gbit/s
Specifications
43 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 1 Gbit/s |
| VPN throughput | 0.3 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 42.65 BTU/h |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 3 |
| Mean time between failures (MTBF) | 989810.8 h |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users | 30 user(s) |
| VPN tunnels quantity | 40 |
| Active TCP connections (max) | 300000 |
| Number of VLANs | 8 |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS, IPSec, SSL/TLS |
| Stateful Packet Inspection (SPI) | Yes |

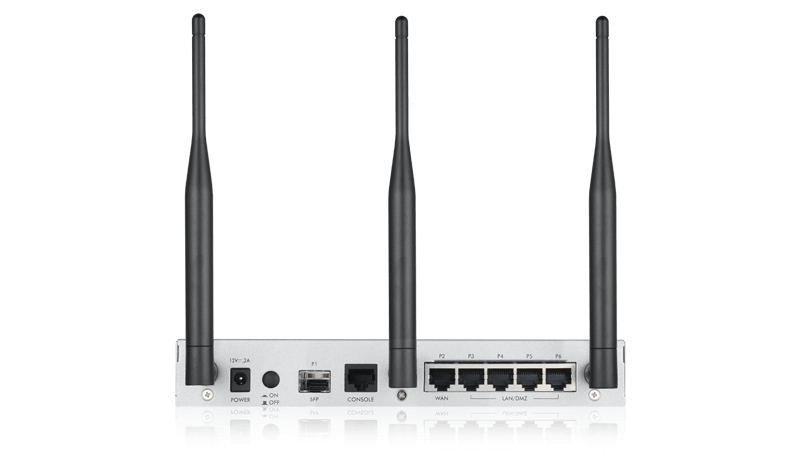

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Console port | RJ-45 |
| Number of console ports | 1 |
| Ethernet DMZ ports quantity | 1 |
| SFP module slots quantity | 1 |
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Power consumption (max) | 12.5 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE EMC, BSMI, LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 147.3 mm |
| Height | 33 mm |
| Weight | 850 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 284 mm |
| Package height | 190 mm |
| Package depth | 100 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45), RS-232 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1000 Mbit/s |
| VPN throughput | 300 Mbit/s |
