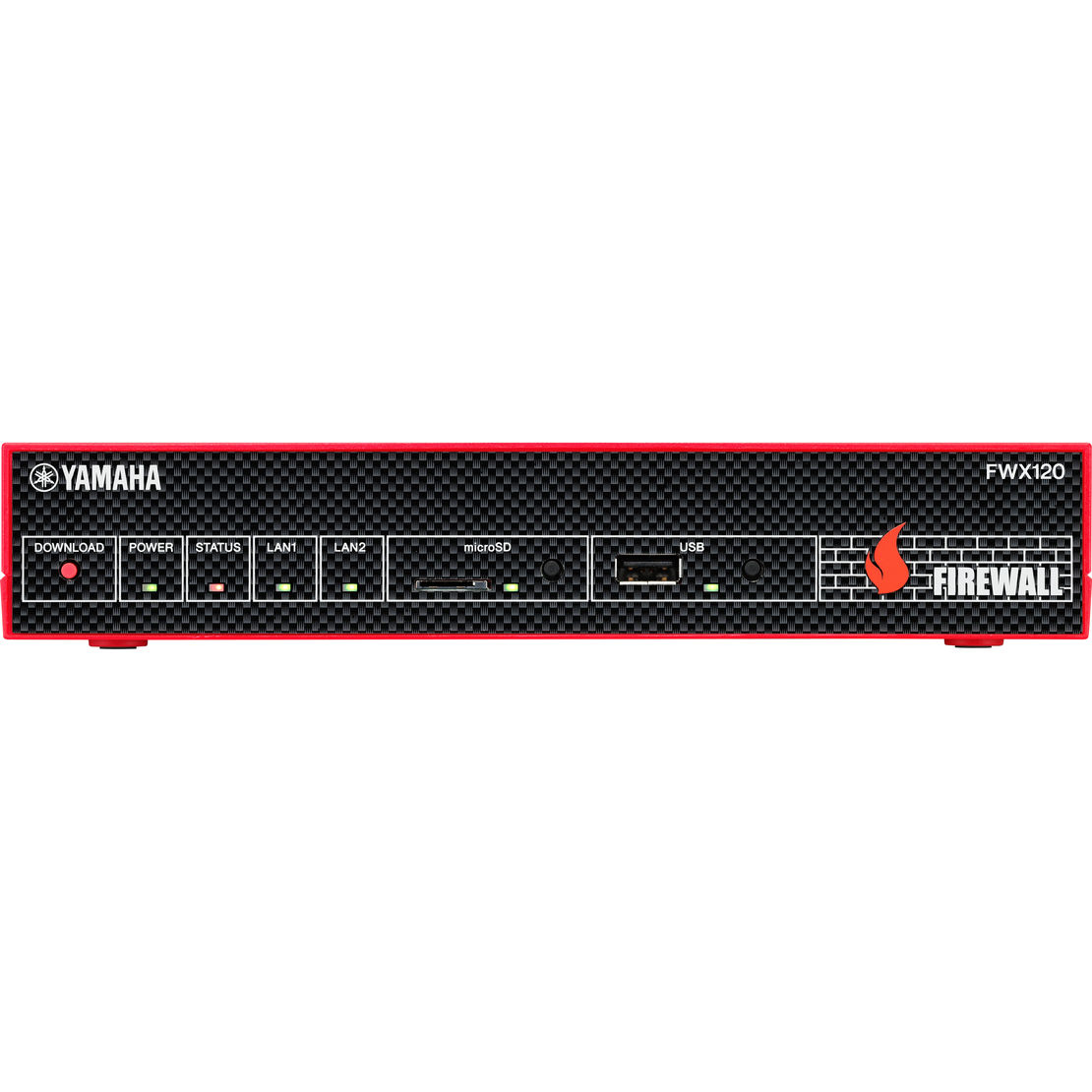

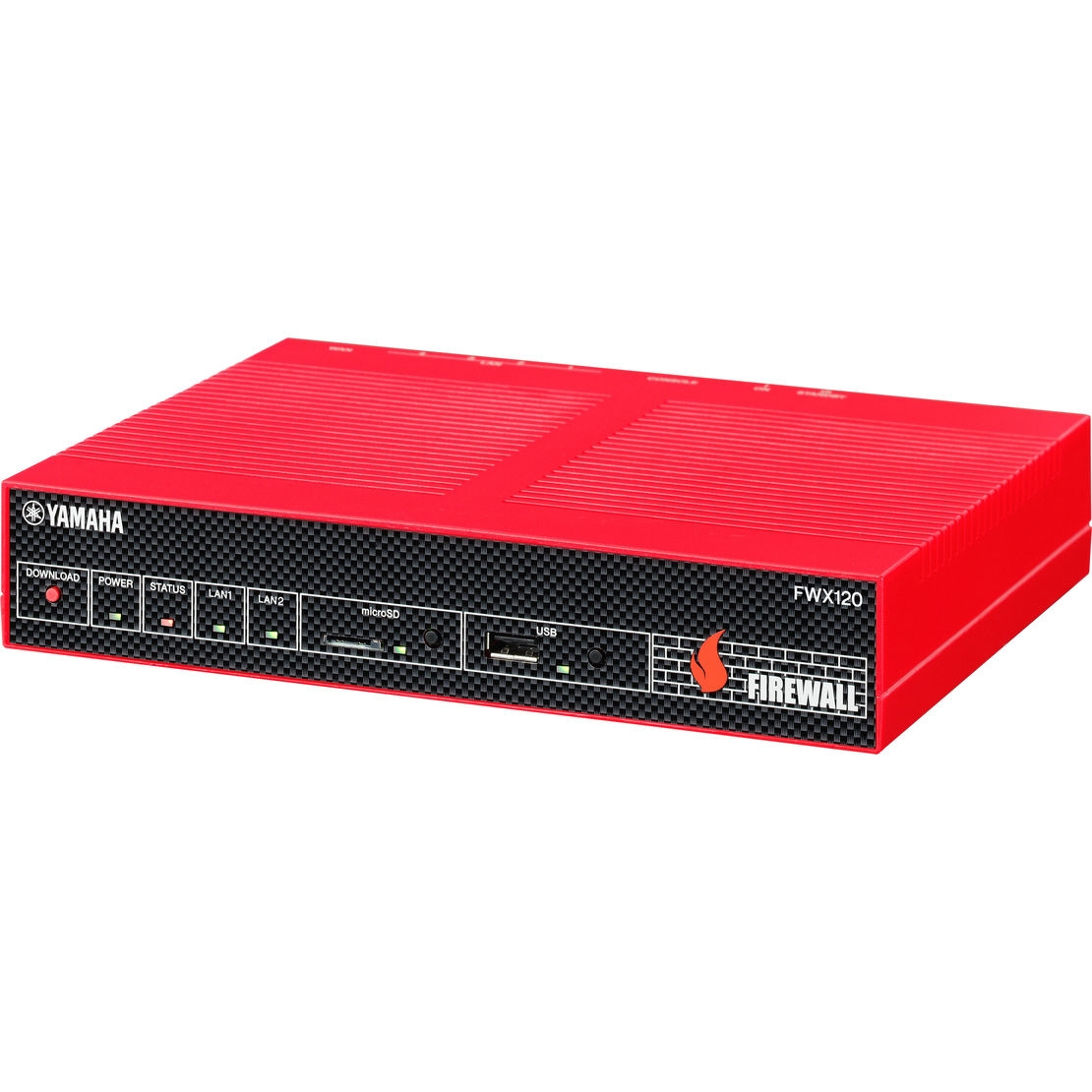

FWX120 hardware firewall 1.024 Gbit/s
Model FWX120EAN 4960693236864
28 specifications
- Memory256 MB
- ConnectivityWired
- Weight870 g
- Firewall throughput1.024 Gbit/s
- DHCP clientYes
- Management protocolsSNMP (v1, v2c, v3)
Overview
- Memory
- 256 MB
- Connectivity
- Wired
- Weight
- 870 g
- Firewall throughput
- 1.024 Gbit/s
- DHCP client
- Yes
- Management protocols
- SNMP (v1, v2c, v3)
- Brand
- Yamaha
- Category
- Hardware Firewall
- Model
- FWX120
- Part number
- FWX120
- EAN / UPC
- 4960693236864
- Also known as
- Yamaha FWX120 hardware firewall 1.024 Gbit/s
Specifications
28 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 1.024 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
Network
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Quality of Service (QoS) support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP (v1, v2c, v3) |
| Routing protocols | BGP4, OSPF, RIP, RIP-2 |
Management features
| Specification | Value |
|---|---|
| LED indicators | LAN, Link, Power, Speed, Status, USB |
| URL filtering | Yes |

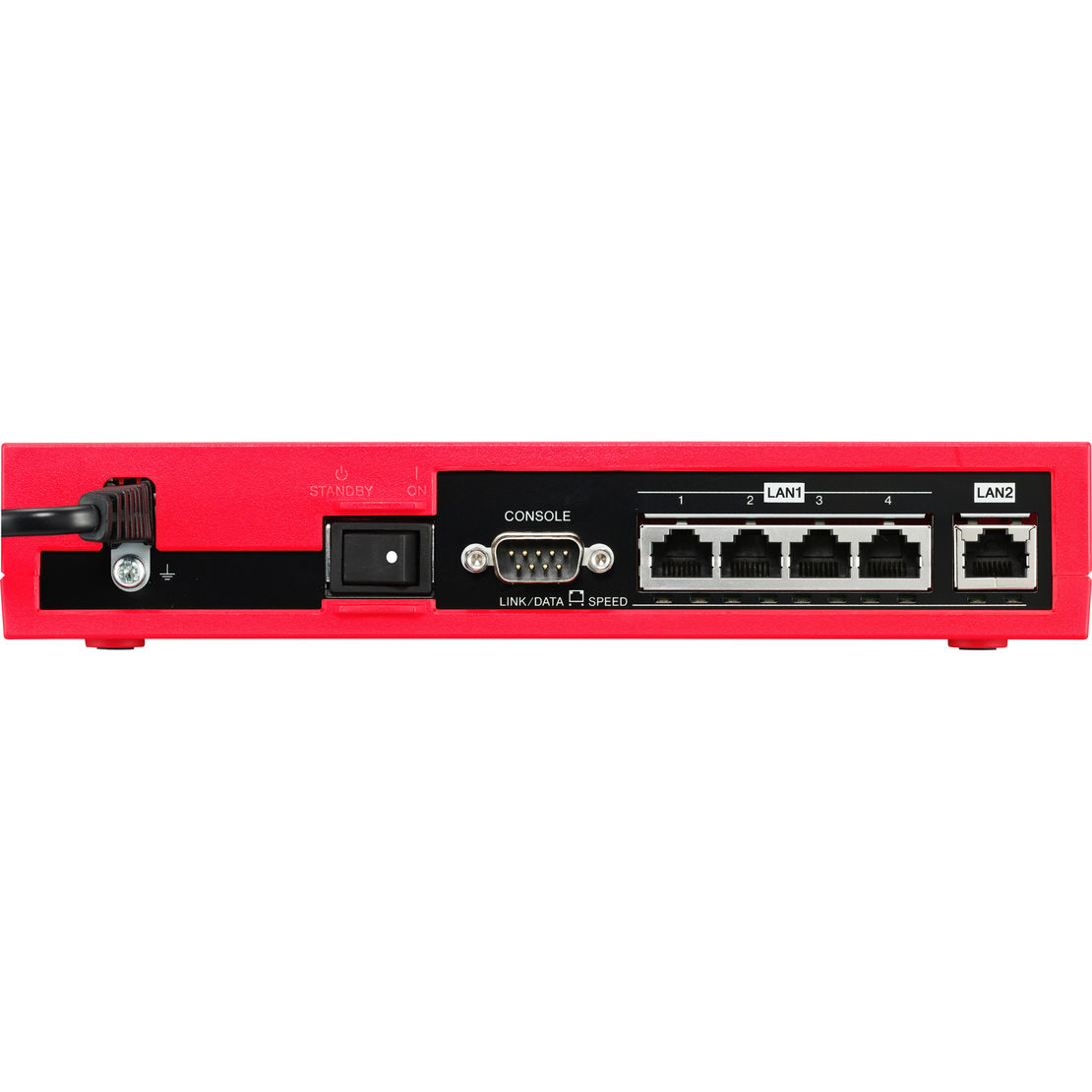

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Storage
| Specification | Value |
|---|---|
| Storage media type | Memory card |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.23 A |
| Power consumption (max) | 11 W |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI Class A, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 220 x 160.5 x 42.6 mm |
| Weight | 870 g |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1024 Mbit/s |
