Securepoint RC100 G5 (Rev. 1): Full Specifications

Overview

Connectivity: Wired & Wireless
Type: Desktop
Firewall throughput: 3.74 Gbit/s
TLS interception: 1800 MB/s
Wi-Fi: Yes
Security algorithms: IPSec, TLS

Brand: Securepoint
Category: Hardware Firewall
Model: RC100 G5 (Rev. 1)
Part number: SP-UTM-11717
EAN / UPC: 4039407068852
Also known as: Securepoint RC100 G5 Security UTM Appliance

Specifications

34 specifications in 12 groups

Data transmission

Specification	Value
Firewall throughput	3.74 Gbit/s
VPN throughput	0.69 Gbit/s

Performance

Specification	Value
TLS interception	1800 MB/s
Reset button	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Number of users	25 user(s)

Security

Specification	Value
Security algorithms	IPSec, TLS

Management features

Specification	Value
LED indicators	HDD, Link, Power, Status
On/off switch	Yes

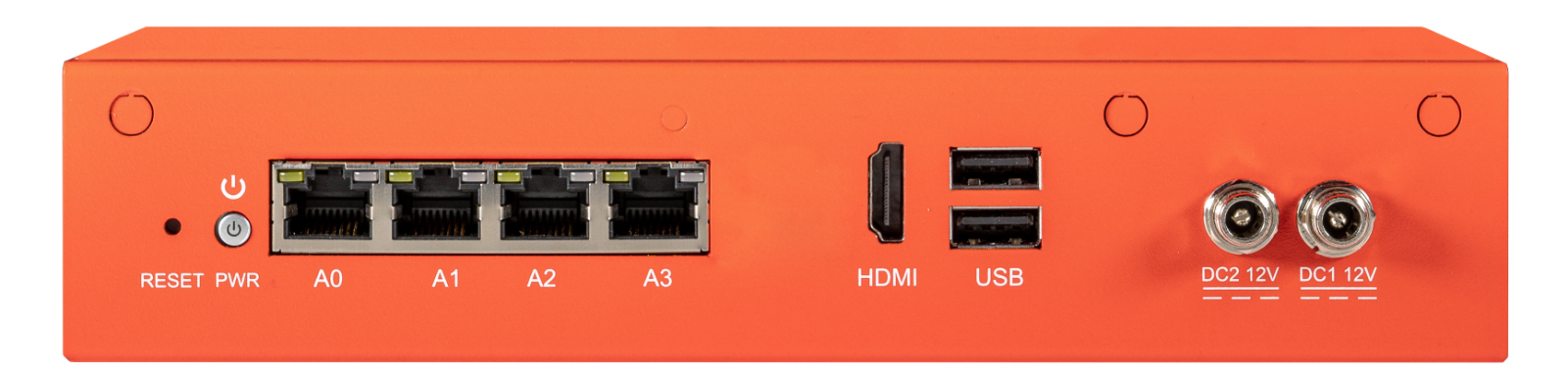

Ports & interfaces

Specification	Value
Connectivity technology	Wired & Wireless
Gigabit Ethernet (copper) ports quantity	4
USB 2.0 ports quantity	2
HDMI ports quantity	1
DC-in jack	Yes
Ethernet DMZ ports quantity	1
WAN connection	Ethernet (RJ-45), Wi-Fi

Storage

Specification	Value
Storage media type	SSD

Design

Specification	Value
Rack mounting	Yes
Form factor	Desktop

Power

Specification	Value
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Input current	1.2 A
DC input voltage	12 V
Power consumption (typical)	46 W
Redundant power supply (RPS) support	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%

Weight & dimensions

Specification	Value
Width	210 mm
Depth	105 mm
Height	44 mm

Other features

Specification	Value
Firewall throughput	3740 Mbit/s
VPN throughput	690 Mbit/s
