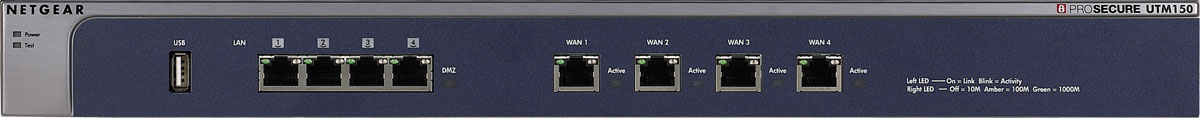

UTM150 + 1Y Lic.
Model UTM150 + 1Y Lic.Part no. UTM150EW-100EUSEAN 606449078008
31 specifications
- Memory1024 MB
- ConnectivityWired
- Weight2.9 kg
- Firewall throughput0.9 Gbit/s
- VPN tunnels quantity150
- Content filteringHTML
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Weight
- 2.9 kg
- Firewall throughput
- 0.9 Gbit/s
- VPN tunnels quantity
- 150
- Content filtering
- HTML
- Brand
- NETGEAR
- Category
- Hardware Firewall
- Model
- UTM150 + 1Y Lic.
- Part number
- UTM150EW-100EUS
- EAN / UPC
- 606449078008, 6064490780082
- Also known as
- NETGEAR UTM150 + 1Y Lic. hardware firewall 0.9 Gbit/s
Specifications
31 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 0.9 Gbit/s |
| VPN throughput | 0.4 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Concurrent connections | 65000 |
| Compatible operating systems | Windows 2000/XP/Vista/7 Mac X 10.4/10.6 |
Network
| Specification | Value |
|---|---|
| VPN tunnels quantity | 150 |
| DHCP server | Yes |
| Number of VLANs | 255 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1 |
| Content filtering | HTML |
| VPN support | LDAP |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | HTTP, HTTPS, SNMP |
| Management protocols | DHCP, PPPoE, PPTP |
| Supported network protocols | HTTP, HTTPS, FTP, SMTP, IMAP, POP3, DHCP, PPPoE, PPTP |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet DMZ ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Storage
| Specification | Value |
|---|---|
| Flash memory | 2048 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | ICSA, VPNC, FCC, CE, VCCI, CE/LVD, cUL, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 44 x 25.3 x 4.3 mm |
| Weight | 2.9 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 V, 50 - 60 Hz, 1 A |
| Authentication method | NAT, PAT |
| Firewall throughput | 900 Mbit/s |
| Networking features | Gigabit Ethernet |
| VPN throughput | 400 Mbit/s |
