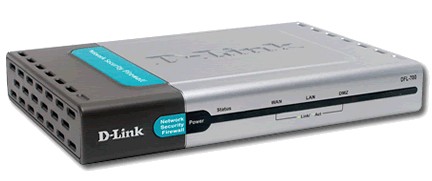

DFL-700 SMB Firewall
Model DFL-700 SMB FirewallPart no. DFL-700/EEAN 790069264498
21 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight513 g
- Processor frequency300 MHz
- VPN tunnels quantity200
- Security algorithms3DES, DES
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 513 g
- Processor frequency
- 300 MHz
- VPN tunnels quantity
- 200
- Security algorithms
- 3DES, DES
- Brand
- D-Link
- Category
- Hardware Firewall
- Model
- DFL-700 SMB Firewall
- Part number
- DFL-700/E
- EAN / UPC
- 790069264498, 790069264504, 790069264535
- Also known as
- D-Link DFL-700 SMB Firewall hardware firewall
Specifications
21 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Processor frequency | 300 MHz |
Network
| Specification | Value |
|---|---|
| VPN tunnels quantity | 200 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, DES |
| Firewall security | NAT, SPI, DoS, ICMP Filter, MADI |
| VPN support | - IPSec PPTP, L2TP - IPSec/PPTP/L2TP pass through |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
| Management protocols | SNTP, SNMP, HTTPS |
Management features
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, Status, WAN |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 235 x 162 x 35.6 mm |
| Weight | 513 g |
Other features
| Specification | Value |
|---|---|
| Safety | UL, TUV/GS, LVD (EN60950), ICSA |
| Authentication method | MD5 & SHA-1, User Authentication |
| Maximum data transfer rate | 100 Mbit/s |
| Networking features | WAN, LAN |
| I/O ports | 1x 10/100BASE-TX LAN 1x 10/100BASE-TX DMZ 1x 10/100BASE-TX WAN 1x Serial COM (console) 1x Power |
