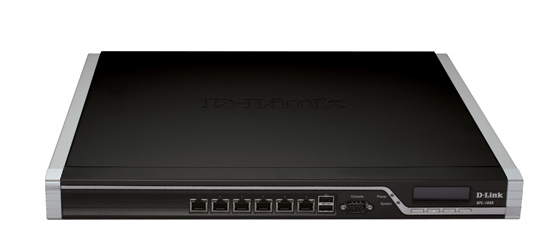

DFL-1660-NB hardware firewall 1U 1.2 Gbit/s
Model DFL-1660-NBEAN 790069334290
34 specifications
- Memory1024 MB
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Networking standardsIEEE 802.1Q
- VPN supportPPTP/L2TP/IPSec
Overview
- Memory
- 1024 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Networking standards
- IEEE 802.1Q
- VPN support
- PPTP/L2TP/IPSec
- Brand
- D-Link
- Category
- Hardware Firewall
- Model
- DFL-1660-NB
- Part number
- DFL-1660-NB
- EAN / UPC
- 790069334290, 7900693342902
- Also known as
- D-Link DFL-1660-NB hardware firewall 1U 1.2 Gbit/s
Specifications
34 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Firewall throughput | 1.2 Gbit/s |
| VPN throughput | 0.35 Gbit/s |
| IPS/IDS throughput | 400 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Processor frequency | 2000 MHz |
| Syslog | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q |
| VPN tunnels quantity | 2500 |
| DHCP client | Yes |
| DHCP server | Yes |
| Multicast support | Yes |
Security
| Specification | Value |
|---|---|
| VPN support | PPTP/L2TP/IPSec |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | MPLS, OSPF |
| Supported network protocols | HTTP, FTP, SMTP, POP3, IMAP |
Management features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 6 |
| RS-232 ports | 1 |
Storage
| Specification | Value |
|---|---|
| Flash memory | 512 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Input current | 4 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, C-Tick, VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 400 x 44 mm |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1200 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Power LED | Yes |
| VPN throughput | 350 Mbit/s |
