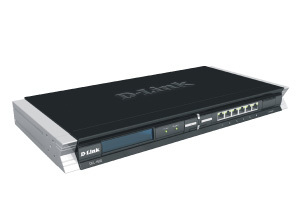

DFL-1600 Medium Business/Workgroup Firewall with ZoneDefense
Model DFL-1600 Medium Business/Workgroup Firewall with ZoneDefensePart no. DFL-1600EAN 790069282164
24 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Number of VPN connections400000
- Management protocolsHTTP, HTTPS, CLI/SSH
- Management platformConsole, Web-Based, CMS
- Operating temperature (T-T)0 - 60 °C
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Number of VPN connections
- 400000
- Management protocols
- HTTP, HTTPS, CLI/SSH
- Management platform
- Console, Web-Based, CMS
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- D-Link
- Category
- Hardware Firewall
- Model
- DFL-1600 Medium Business/Workgroup Firewall with ZoneDefense
- Part number
- DFL-1600
- EAN / UPC
- 790069282164, 790069282225, 790069282508, 7900692825086
- Also known as
- D-Link DFL-1600 Medium Business/Workgroup Firewall with ZoneDefense hardware firewall 0.32 Gbit/s
Specifications
24 specifications in 9 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Firewall throughput | 0.32 Gbit/s |
| VPN throughput | 0.12 Gbit/s |
Network
| Specification | Value |
|---|---|
| Number of VPN connections | 400000 |
Security
| Specification | Value |
|---|---|
| Firewall security | PPPoE, NAT, PAT, OSPF, H.323 NAT, ALG, Zone-Defense |
| Content filtering | HTTP(URL, Keyword), Script (Java, Cookie, ActiveX, VB), E-mail (Black List, Keyword) |
| VPN support | PPTP/L2TP Server IPSec NAT Traversal Hub & Spoke PPTP/L2TP/IPSec pass-through IKE v.2 & X.509 v.3 authentication |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, HTTPS, CLI/SSH |
Management features
| Specification | Value |
|---|---|
| Management platform | Console, Web-Based, CMS |
| Logging and monitoring | Internal & External log, Event Log & Alarm, SNMP v1, v2c |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 254 x 44 mm |
Other features
| Specification | Value |
|---|---|
| Special features | IM/P2P Blocking |
| Safety | UL, LVD (EN60950) |
| Authentication method | RADIUS, LDAP, Active Directory, XAUTH, IP & MAC Binding |
| Firewall throughput | 320 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking features | DHCP Server/Client, DHCP Relay, VLAN, IGMP, IGMP Snooping |
| VPN throughput | 120 Mbit/s |
| I/O ports | 6x Gigabit 1x RS-232 |
| Electromagnetic emissions | FCC Class A, CE Class A |
