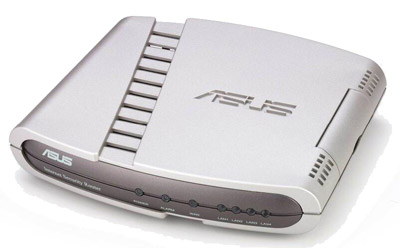

VPN-firewall router SL1000
Model VPN-firewall router SL1000Part no. 90-QR02AF2N0Y3UA0
16 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight485 g
- Management protocolsTelnet, SNMPv1
- LED indicatorsLAN, Power, WAN
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 485 g
- Management protocols
- Telnet, SNMPv1
- LED indicators
- LAN, Power, WAN
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ASUS
- Category
- Hardware Firewall
- Model
- VPN-firewall router SL1000
- Part number
- 90-QR02AF2N0Y3UA0
- Also known as
- ASUS VPN-firewall router SL1000 hardware firewall
Specifications
16 specifications in 7 groups
Security
| Specification | Value |
|---|---|
| Firewall security | Firewall performance: 100Mbps • Stateful Packet Inspection (SPI) • Access Control List (ACL) • 29 DOS (Denial of Service) Protection • 20+ ALG (Application Layer Gateway) • URL Filtering • Application Command Filtering • Remote Access • Logging and Reporting |
| VPN support | Performance: 80Mbps Tunnels: 25 VPN Tunnels IKE (Internet Key Exchange): - Manual Key - Pre-shared Key - Perfect Forward Secrecy: D-H 1/2/5 - IKE Mode: Main/Quick IPSec (IP security) - AH/ESP Hardware accelerated encryption: DES (56-bit)/3DES (168-bit) Hardware accelerated authentication: MD5, SHA-1 |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | TCP, UDP, ICMP, ARP, SNTP, DDNS, RIPv1, RIPv2 |
| Management protocols | Telnet, SNMPv1 |
Management features
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, WAN |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 202.95 x 182.5 x 34.6 mm |
| Weight | 485 g |
Other features
| Specification | Value |
|---|---|
| Interface | WAN, LAN |
| Special features | NAT (RFC1631): - Static NAT - Dynamic NAT - PAT (Port Address Translation) - Virtual Server |
| Safety | FCC, CE, UL |
| Maximum data transfer rate | 100 Mbit/s |
| Networking features | Ethernet, Fast Ethernet |
| I/O ports | 4x 10/100 (RJ-45) Base-T ports 1x WAN RJ-45 port 1x RS-232 port |
