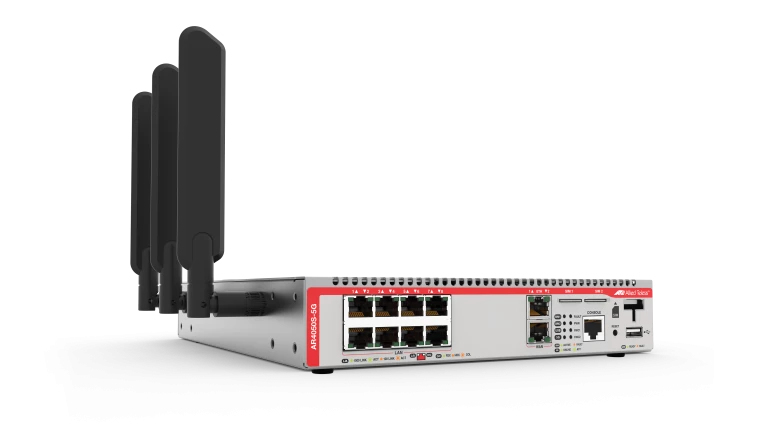

R4050S-5G hardware firewall 1.9 Gbit/s
Model R4050S-5GPart no. AT-AR4050S-5G-50EAN 767035222288
41 specifications
- Memory2048 MB
- ConnectivityWired
- Weight2 kg
- Firewall throughput1.9 Gbit/s
- Built-in processorYes
- Networking standardsIEEE 802.1Q, IEEE 802.3ad
Overview
- Memory
- 2048 MB
- Connectivity
- Wired
- Weight
- 2 kg
- Firewall throughput
- 1.9 Gbit/s
- Built-in processor
- Yes
- Networking standards
- IEEE 802.1Q, IEEE 802.3ad
- Brand
- Allied Telesis
- Category
- Hardware Firewall
- Model
- R4050S-5G
- Part number
- AT-AR4050S-5G-50
- EAN / UPC
- 767035222288
- Also known as
- Allied Telesis R4050S-5G hardware firewall 1.9 Gbit/s
Specifications
41 specifications in 13 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 1.9 Gbit/s |
| VPN throughput | 1 Gbit/s |
| IPS/IDS throughput | 750 Mbit/s |
| Maximum firewall connections per second | 1200 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 2048 MB |
| Processor frequency | 1500 MHz |
| Processor cores | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| DHCP client | Yes |
| DHCP server | Yes |
| Multicast support | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Port forwarding | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, WEP, WPA |
| VPN support | IPsec, SHA-1, SHA-256, SHA-512, IKEv2, SSL/TLS VPN |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IPv6, SNMPv6, Telnetv6, SSHv6 |
| Routing protocols | BGP4, OSPF, RIP-1, RIP-2 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WAN connection | Ethernet (RJ-45) |
Storage
| Specification | Value |
|---|---|
| Storage media type | Flash |
| Flash memory | 4096 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90-264 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 28 W |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55022 class A, FCC class A, VCCI class A EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TuV RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 260 mm |
| Height | 42.5 mm |
| Weight | 2 kg |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1900 Mbit/s |
| VPN throughput | 1000 Mbit/s |
