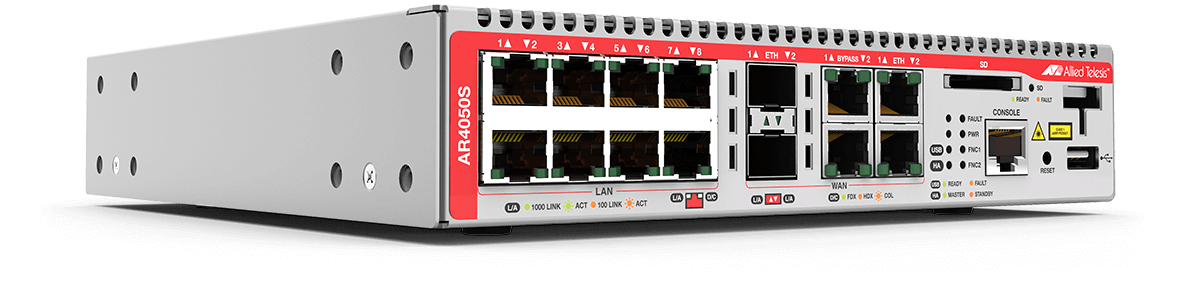

AT-AR4050S-30 hardware firewall 1.9 Gbit/s
Model AT-AR4050S-30EAN 767035202433
32 specifications
- Memory2048 MB
- ConnectivityWired
- Noise28.4 dB
- Weight1.7 kg
- Firewall throughput1.9 Gbit/s
- Built-in processorYes
Overview
- Memory
- 2048 MB
- Connectivity
- Wired
- Noise
- 28.4 dB
- Weight
- 1.7 kg
- Firewall throughput
- 1.9 Gbit/s
- Built-in processor
- Yes
- Brand
- Allied Telesis
- Category
- Hardware Firewall
- Model
- AT-AR4050S-30
- Part number
- AT-AR4050S-30
- EAN / UPC
- 767035202433
- Also known as
- Allied Telesis AT-AR4050S-30 hardware firewall 1.9 Gbit/s
Specifications
32 specifications in 10 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 1.9 Gbit/s |
| VPN throughput | 1 Gbit/s |
| IPS/IDS throughput | 750 Mbit/s |
| Maximum firewall connections per second | 12000 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 2048 MB |
| Processor frequency | 1560 MHz |
| Processor cores | 2 |
| Concurrent connections | 300000 |
| Noise level | 28.4 dB |
Network
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Multicast support | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Port forwarding | Yes |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | BGP4, OSPF, RIP-1, RIP-2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 8 |
| WAN connection | Ethernet (RJ-45) |
Storage
| Specification | Value |
|---|---|
| Flash memory | 4096 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90-260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 27 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 425 x 210 x 220 mm |
| Weight | 1.7 kg |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1900 Mbit/s |
| VPN throughput | 1000 Mbit/s |
