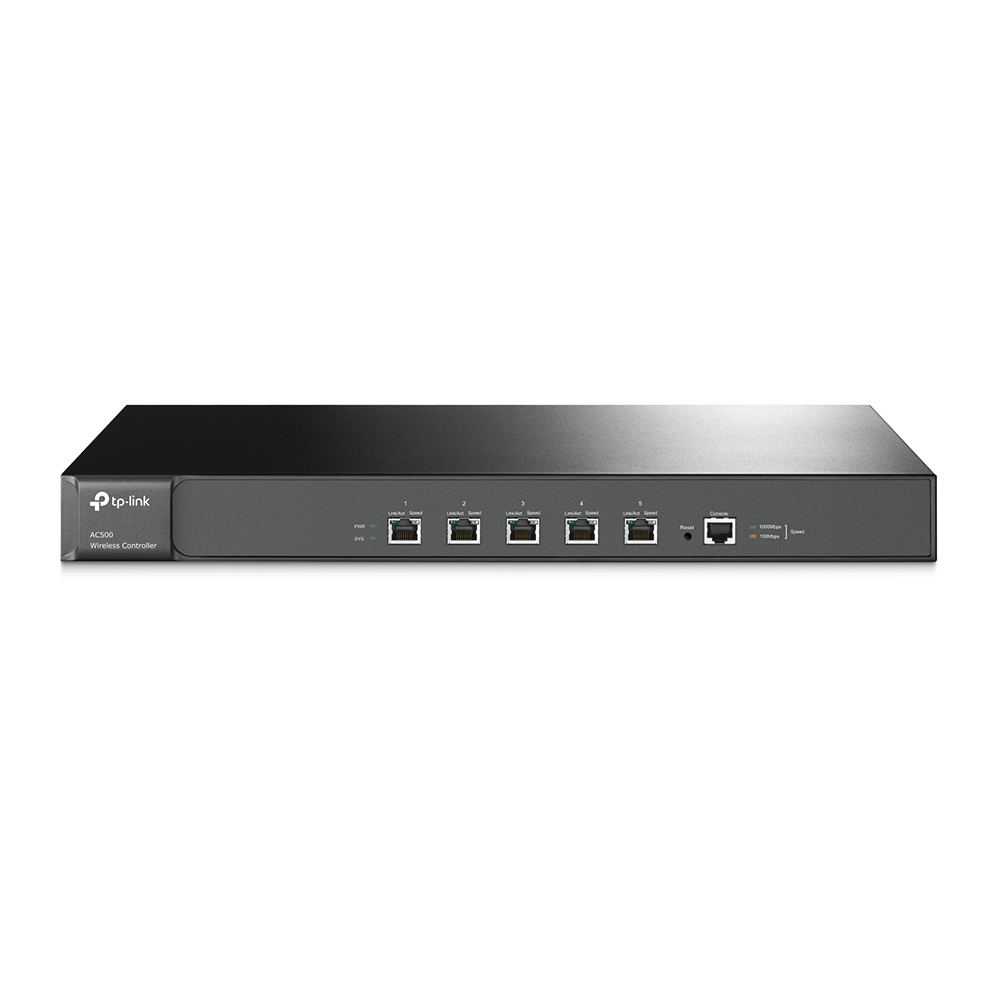

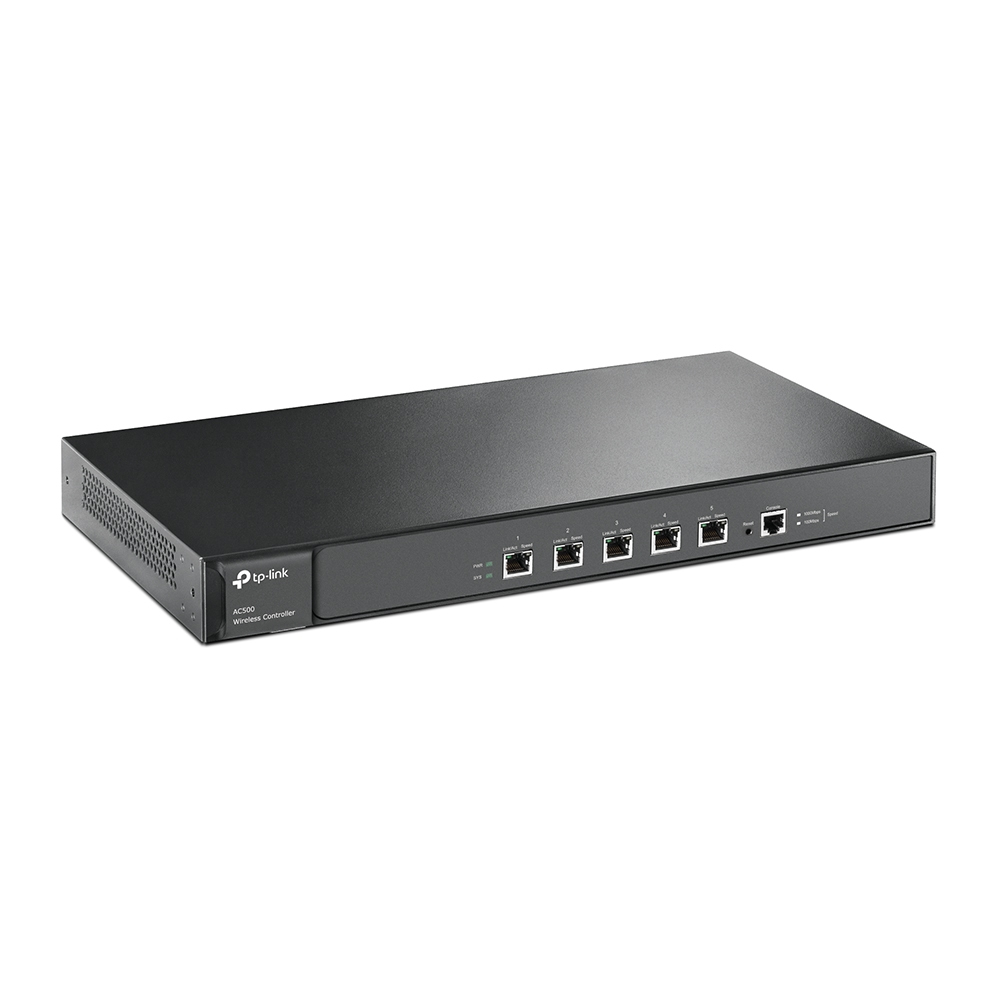

AC500 Wireless Controller
Model AC500 Wireless ControllerPart no. AC500EAN 845973099480
29 specifications
- Memory256 MB
- ColourBlack
- Built-in processorYes
- Ethernet LAN data rates10,100,1000 Mbit/s
- Security algorithms802.1x RADIUS, SSID, WPA, WPA2
- Console portRJ-45
Overview
- Memory
- 256 MB
- Colour
- Black
- Built-in processor
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Security algorithms
- 802.1x RADIUS, SSID, WPA, WPA2
- Console port
- RJ-45
- Brand
- TP-Link
- Category
- Gateways/Controllers
- Model
- AC500 Wireless Controller
- Part number
- AC500
- EAN / UPC
- 845973099480
- Also known as
- TP-Link AC500 Wireless Controller gateway/controller 10, 100, 1000 Mbit/s
Specifications
29 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, Power, System |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Number of processors installed | 1 |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, SSID, WPA, WPA2 |
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
| Number of console ports | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100-240 V |
| Input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Width | 440 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
