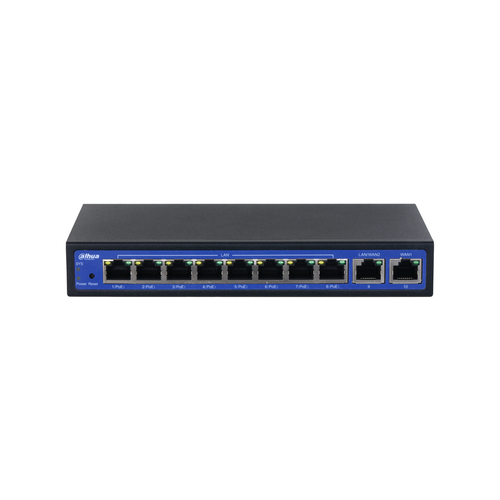

EAC10-P Wireless Access Controller
Model EAC10-PPart no. DH-EAC10-PEAN 6923172590152
60 specifications
- Memory256 MB
- Weight460 g
- ColourBlack, Blue
- Mean time between failures (MTBF)40000 h
- Control display unitNo
- Static routeYes
Overview
- Memory
- 256 MB
- Weight
- 460 g
- Colour
- Black, Blue
- Mean time between failures (MTBF)
- 40000 h
- Control display unit
- No
- Static route
- Yes
- Brand
- Dahua Technology
- Category
- Gateways/Controllers
- Model
- EAC10-P
- Part number
- DH-EAC10-P
- EAN / UPC
- 6923172590152
- Also known as
- Dahua Technology EAC10-P Wireless Access Controller
Specifications
60 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Number of processors installed | 1 |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
Data transmission
| Specification | Value |
|---|---|
| Static route | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Routing protocols | IP |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 500 Mpps |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Flow control support | Yes |
| Load balancing | Yes |
| Congestion avoidance & management | Yes |
| Dynamic DNS (DDNS) | Yes |
| Firewall throughput | 500 Mbit/s |
| PPTP/L2TP VPN tunnels (max) | 128 |
| Sessions per second | 128 |
| VPN support | L2TP VPN PPTP VPN |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs |
| Security algorithms | 128-bit WEP, SSID, TKIP, WEP, WPA, WPA2, WPA3 |
| ICMP attack prevention | Yes |
| Authentication | Captive portal authentication, MAC authentication |
| Firewall security | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 10 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Concurrent SSL/VPN connections (maximum) | 200000 |
| Maximum number of virtual gateways | 100 |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Traffic shaping | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 72 W |
| Power consumption (typical) | 8 W |
| Input current | 1.33 A |
| DC input voltage | 54 V |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 190 mm |
| Height | 29.5 mm |
| Width | 97.5 mm |
| Weight | 460 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 225 mm |
| Package height | 66 mm |
| Package width | 216 mm |
| Package weight | 980 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
