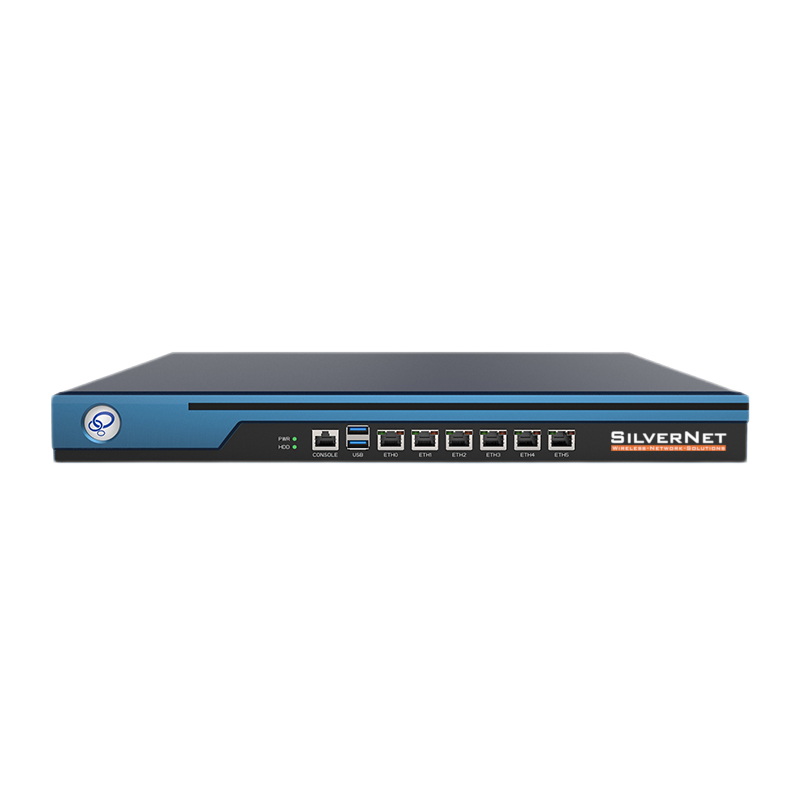

SIL WAC-AX
Model SIL WAC-AXEAN 5060693982651
65 specifications
- ProcessorIntel Atom®
- Memory2048 MB
- Storage32 GB
- Weight2.2 kg
- ColourBlack, Blue
- Built-in processorYes
Overview
- Processor
- Intel Atom®
- Memory
- 2048 MB
- Storage
- 32 GB
- Weight
- 2.2 kg
- Colour
- Black, Blue
- Built-in processor
- Yes
- Brand
- SilverNet
- Category
- Gateways/Controllers
- Model
- SIL WAC-AX
- Part number
- SIL WAC-AX
- EAN / UPC
- 5060693982651
- Also known as
- SilverNet SIL WAC-AX gateway/controller 10, 100, 1000 Mbit/s
Specifications
65 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
| Rack capacity | 1U |
| Enclosure material | Aluminum |
| Mounting type | Desktop/Rack mounting |
| LED indicators | Power, SSD |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor family | Intel Atom® |
| Processor manufacturer | Intel |
| Processor frequency | 1800 MHz |
| Number of processors installed | 1 |
| Internal memory | 2048 MB |
| Internal memory type | DDR |
| SSD capacity | 32 GB |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web / CLI / Telnet Management, Remote Management |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IEEE 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP, CAPWAP Protocol |
| Supported protocols | ACL / URL Filtering Routing / NAT / Session Limit / Bandwidth Control IPSec / L2TP / PPTP / OpenVPN Voucher / Local User / SMS / RADIUS / External Portal Server Authentication / MAC Authentication / Accounting Load Balancing / MWAN / 802.1x |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11e, IEEE 802.1Q |
| Flow control support | Yes |
| Load balancing | Yes |
| Rate limiting | Yes |
| Response time to ethernet ping | 0.1 s |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Full duplex | Yes |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP |
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Console port | RJ-45 |
| Number of console ports | 1 |
| Ethernet LAN (RJ-45) ports | 6 |
Management features
| Specification | Value |
|---|---|
| Graphical user interface (GUI) | Yes |
| Configuring Location Settings (CLI) | Yes |
| Management platform | SilverCloud |
| Quality of Service (QoS) support | Yes |
| Traffic statistics | Yes |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 110-240 V |
| Output voltage | 12 V |
| Output current | 5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 300 mm |
| Height | 44.5 mm |
| Width | 430 mm |
| Weight | 2.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 505 mm |
| Package height | 125 mm |
| Package width | 380 mm |
| Package type | Box |
| Package weight | 4.32 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
