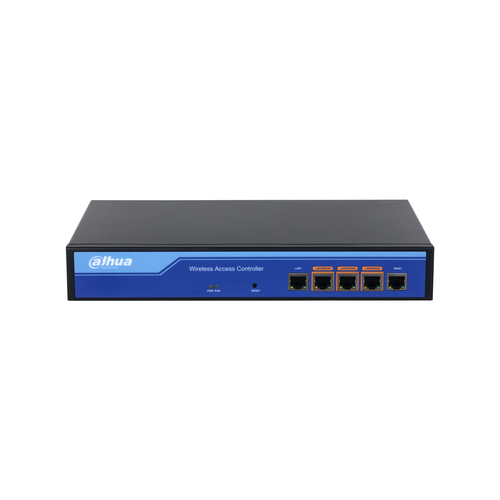

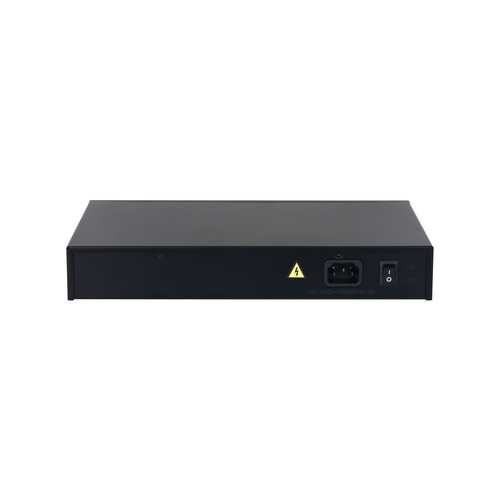

EAC64 Wireless Access Controller
Model EAC64Part no. DH-EAC64EAN 6923172590145
60 specifications
- Memory256 MB
- Weight1.42 kg
- ColourBlack, Blue
- Mean time between failures (MTBF)40000 h
- Control display unitNo
- Static routeYes
Overview
- Memory
- 256 MB
- Weight
- 1.42 kg
- Colour
- Black, Blue
- Mean time between failures (MTBF)
- 40000 h
- Control display unit
- No
- Static route
- Yes
- Brand
- Dahua Technology
- Category
- Gateways/Controllers
- Model
- EAC64
- Part number
- DH-EAC64
- EAN / UPC
- 6923172590145
- Also known as
- Dahua Technology EAC64 Wireless Access Controller
Specifications
60 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Number of processors installed | 1 |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
Data transmission
| Specification | Value |
|---|---|
| Static route | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Routing protocols | IP |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 500 Mpps |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Flow control support | Yes |
| Load balancing | Yes |
| Congestion avoidance & management | Yes |
| Dynamic DNS (DDNS) | Yes |
| Firewall throughput | 500 Mbit/s |
| PPTP/L2TP VPN tunnels (max) | 128 |
| Sessions per second | 128 |
| VPN support | L2TP VPN PPTP VPN |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | EAP |
| ICMP attack prevention | Yes |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Number of managed Wi-Fi Access Points (max) | 64 |
| Concurrent SSL/VPN connections (maximum) | 200000 |
| Maximum number of virtual gateways | 100 |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Traffic shaping | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 12 W |
| Power consumption (typical) | 0.96 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 2 A |
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 294 mm |
| Height | 44 mm |
| Width | 180 mm |
| Weight | 1.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 325 mm |
| Package height | 81 mm |
| Package width | 241 mm |
| Package weight | 1.86 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
