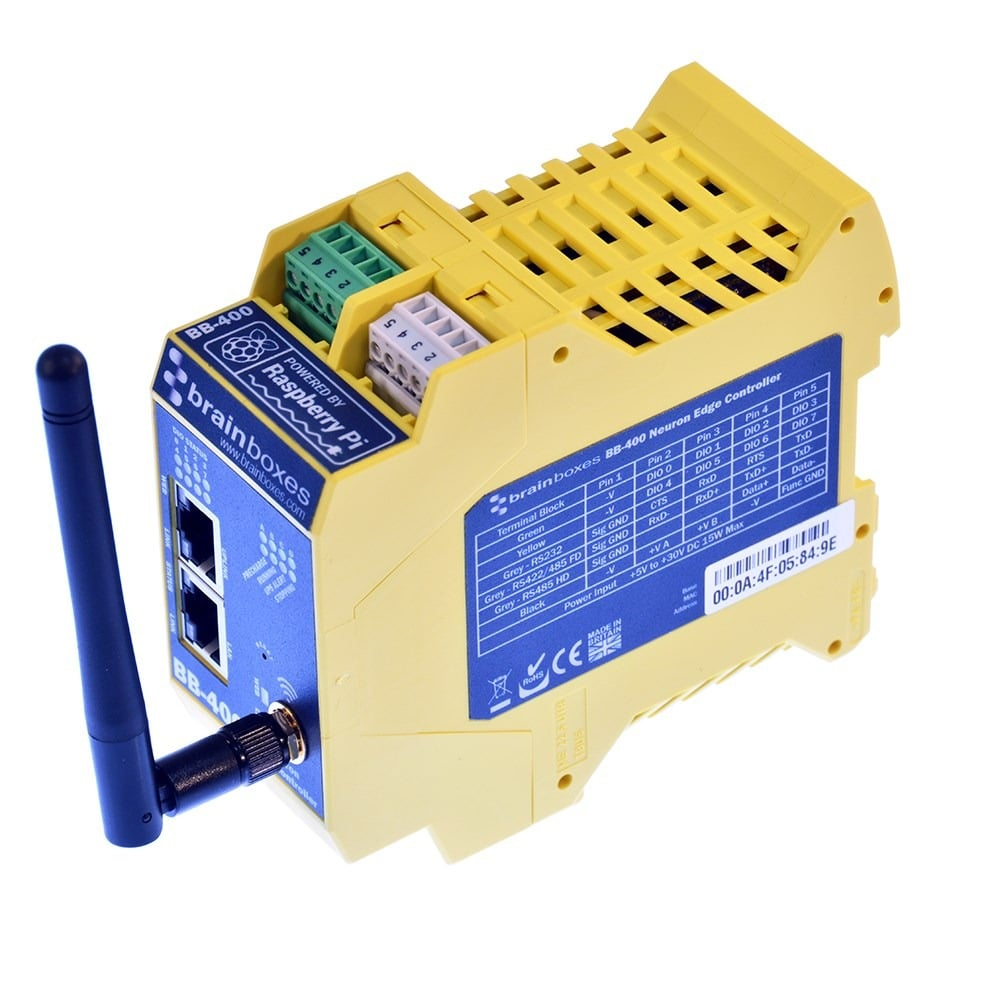

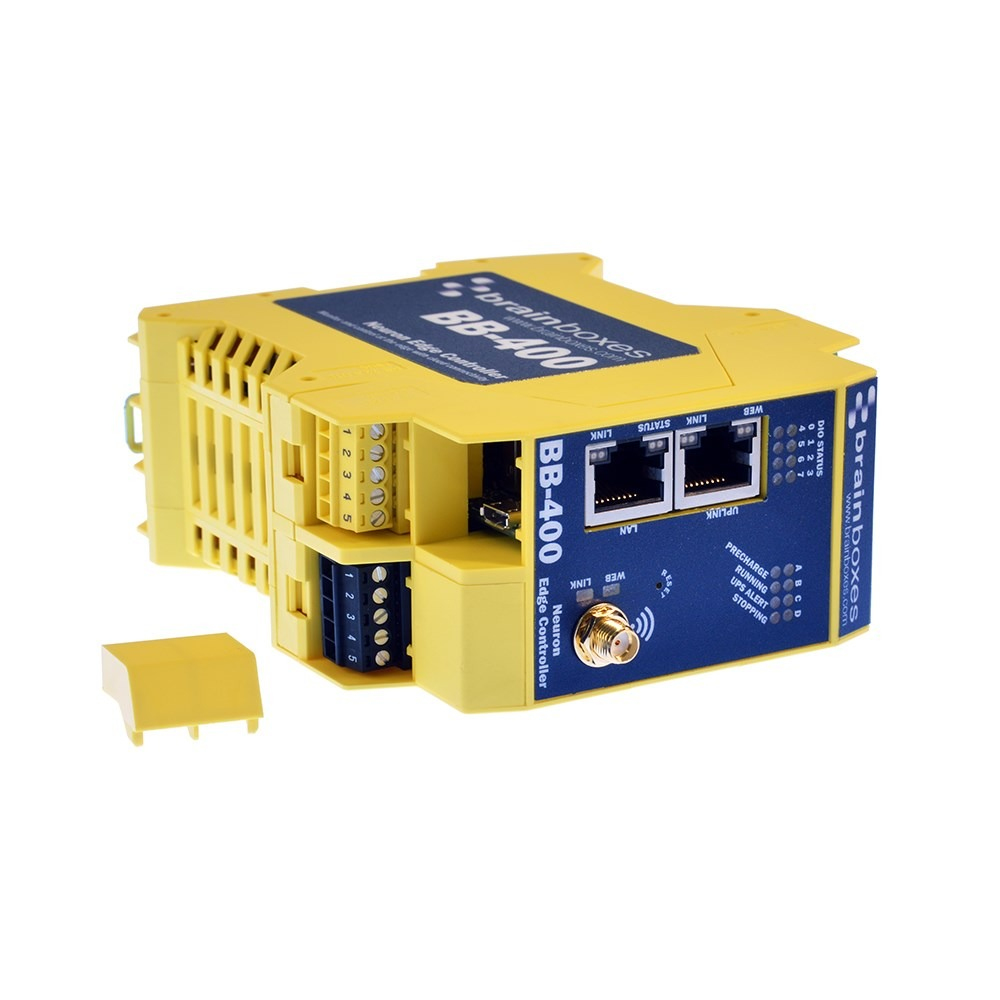

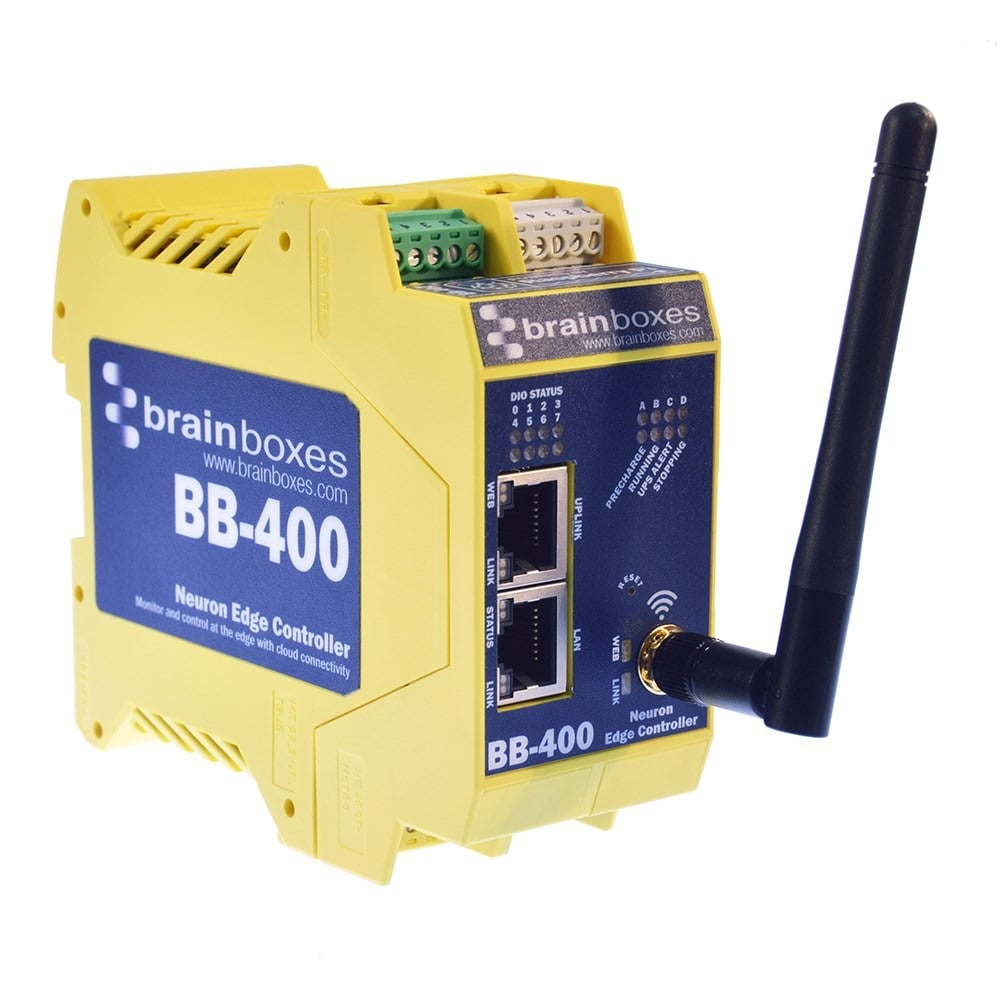

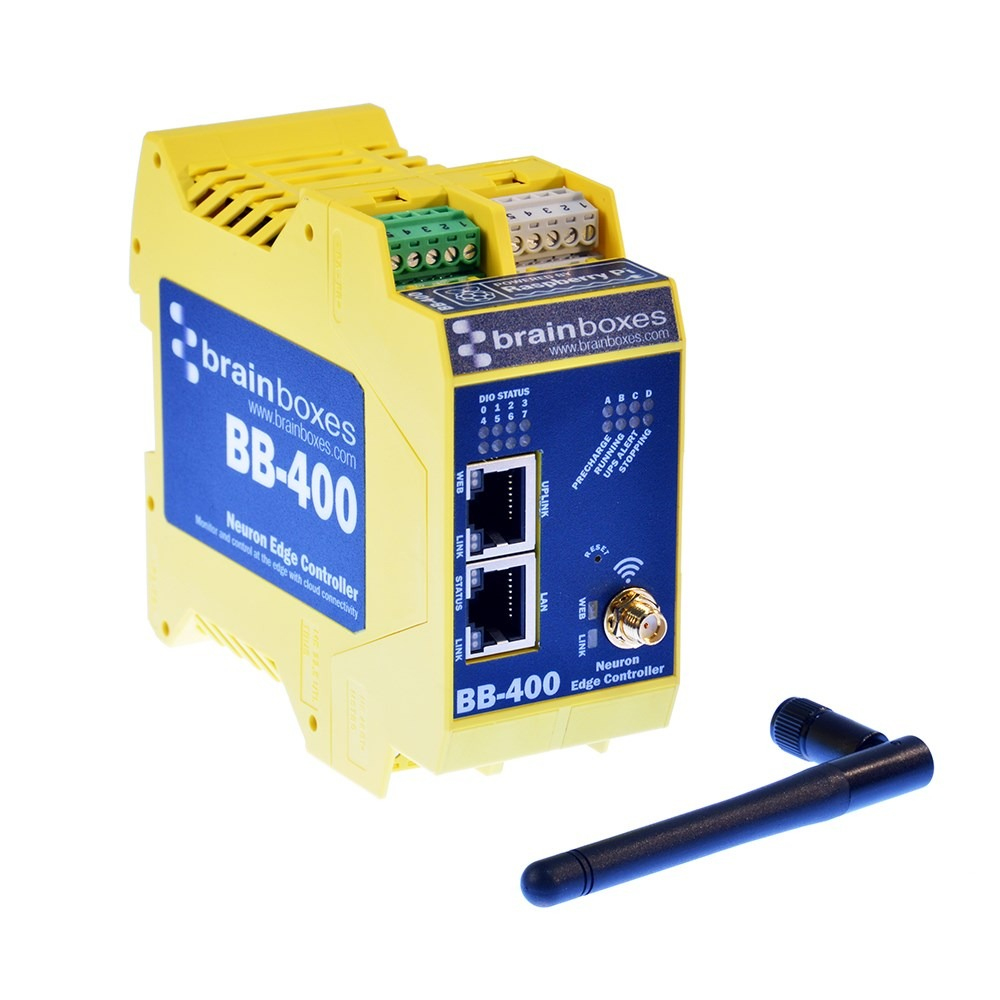

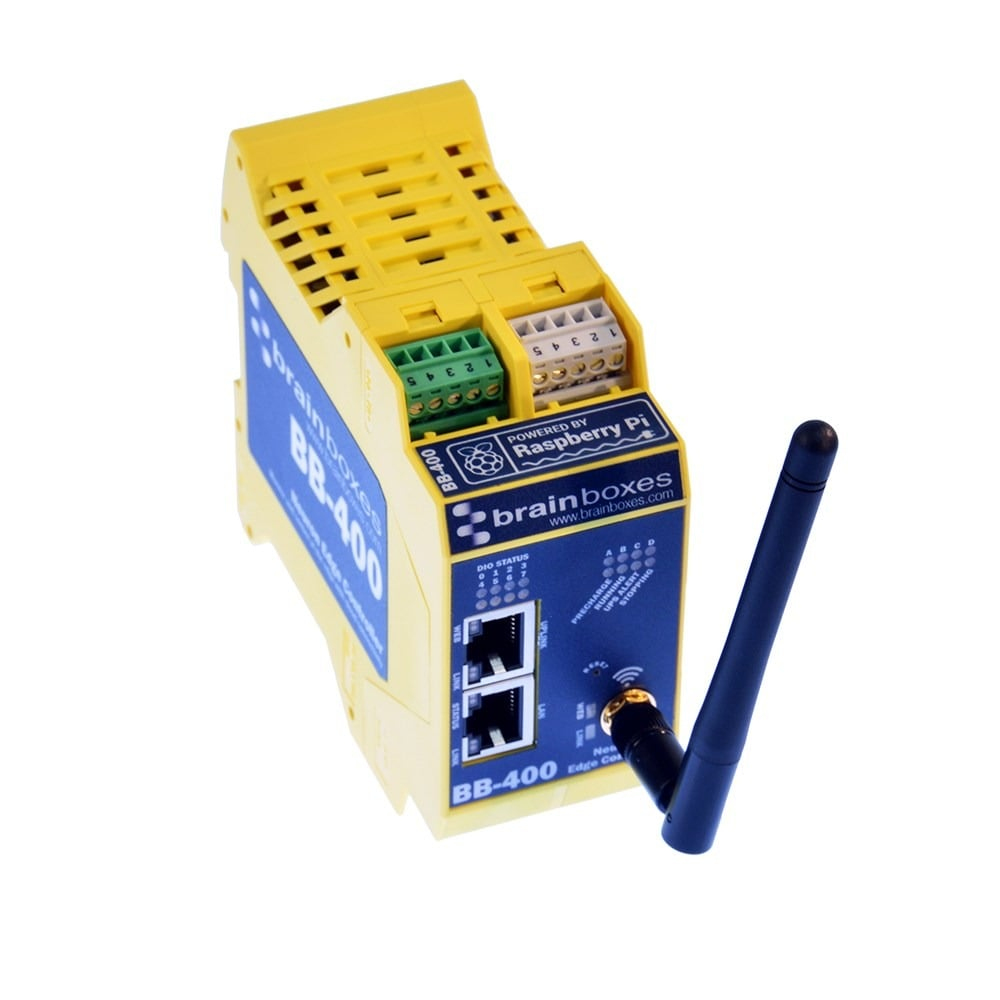

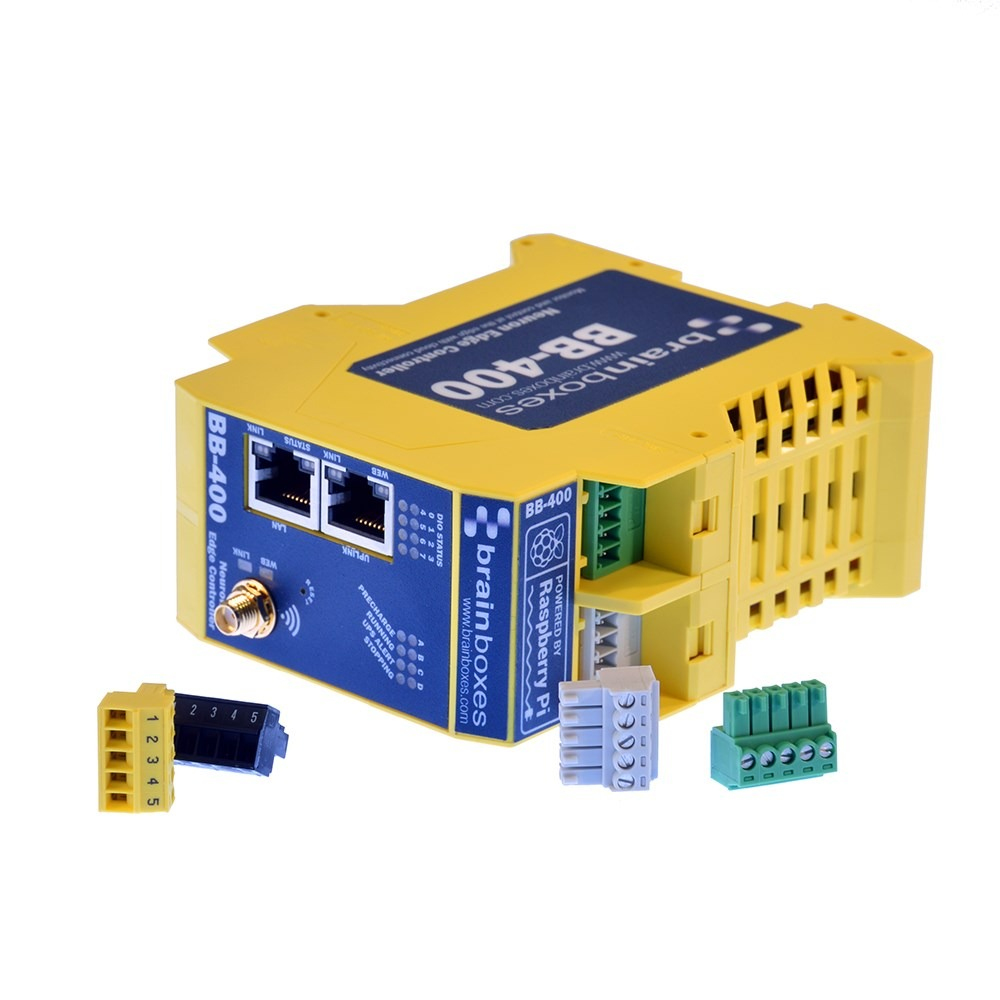

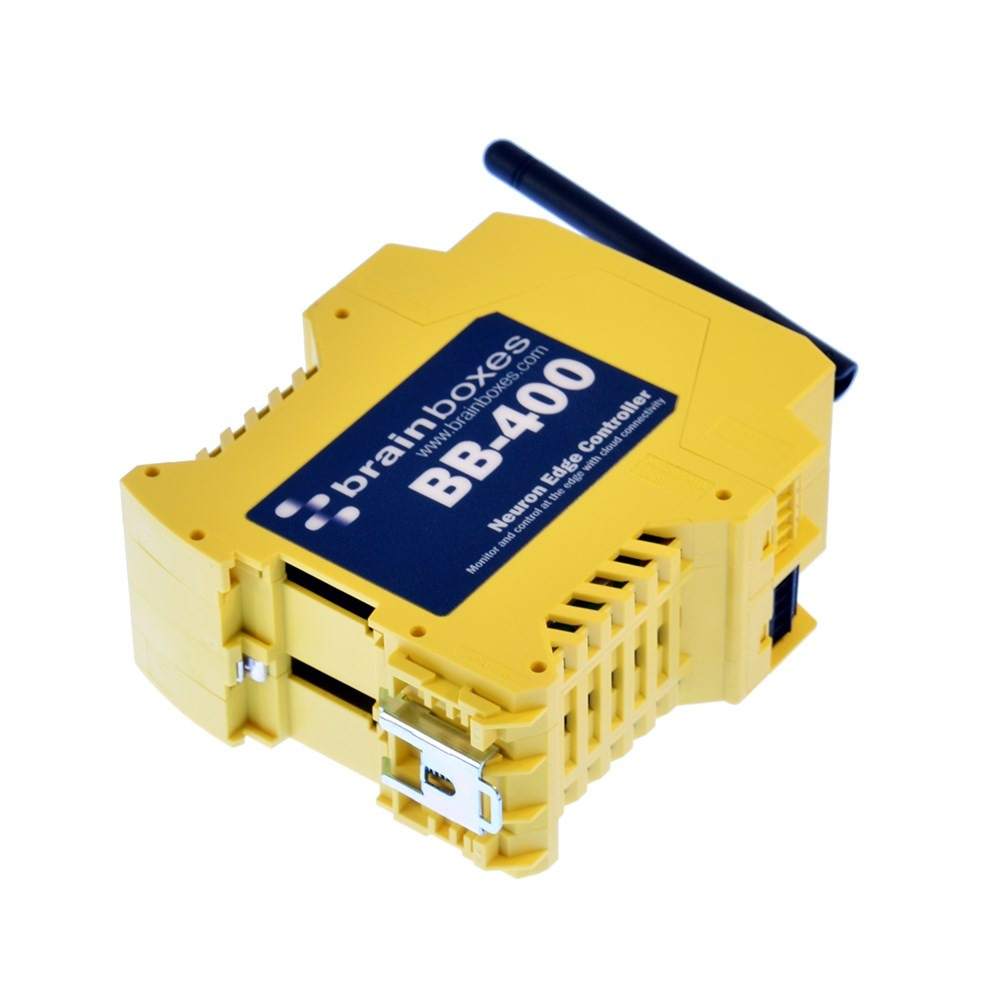

BB-400
Model BB-400EAN 837324004441
43 specifications
- Memory1024 MB
- Weight334 g
- Enclosure materialPlastic
- Antenna typeExternal
- Control display unitNo
- Ethernet LAN data rates10,100 Mbit/s
Overview
- Memory
- 1024 MB
- Weight
- 334 g
- Enclosure material
- Plastic
- Antenna type
- External
- Control display unit
- No
- Ethernet LAN data rates
- 10,100 Mbit/s
- Brand
- Brainboxes
- Category
- Gateways/Controllers
- Model
- BB-400
- Part number
- BB-400
- EAN / UPC
- 837324004441
Specifications
43 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Enclosure material | Plastic |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Features
| Specification | Value |
|---|---|
| Antenna type | External |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Internal memory | 1024 MB |
| Internal memory type | DDR2 |
| Flash memory | 32000 MB |
Protocols
| Specification | Value |
|---|---|
| Supported protocols | MQTT, OPC-UA, REST, Modbus, WebSockets, ASCII TCP, Unix Domain Socket |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Frequency band | 2.45 GHz |
| Full duplex | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, TLS |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RS-232 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial interface type | RS-232, RS-422, RS-485 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 15 W |
| Power consumption (typical) | 4 W |
| Input voltage | 5 - 30 V |
| Output voltage | 30 V |
| Output current | 4 A |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Raspberry Pi Android Linux |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 160 mm |
| Height | 49 mm |
| Width | 135 mm |
| Weight | 334 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 135 mm |
| Package height | 49 mm |
| Package width | 160 mm |
| Package weight | 334 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UL, WEEE, RoHS, CE, UKCA |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A992.C |
| Harmonized System (HS) code | 851762 |
