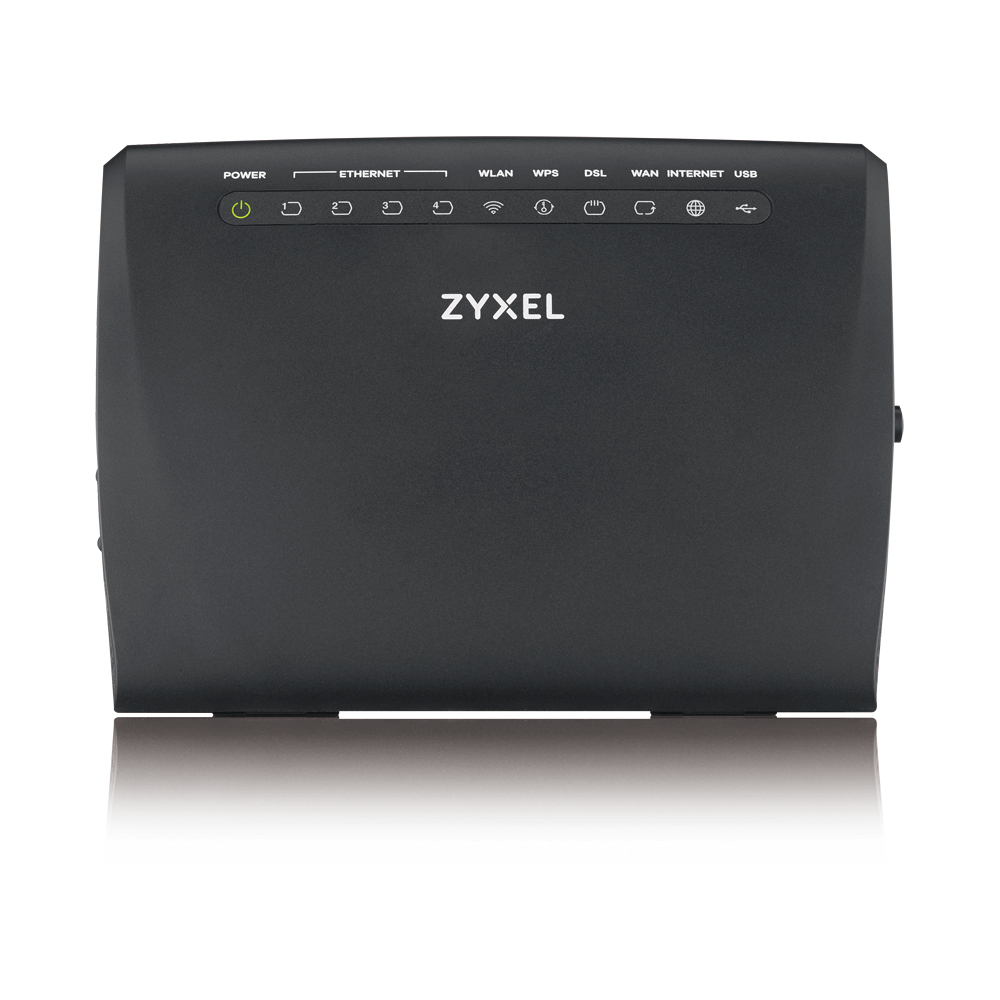

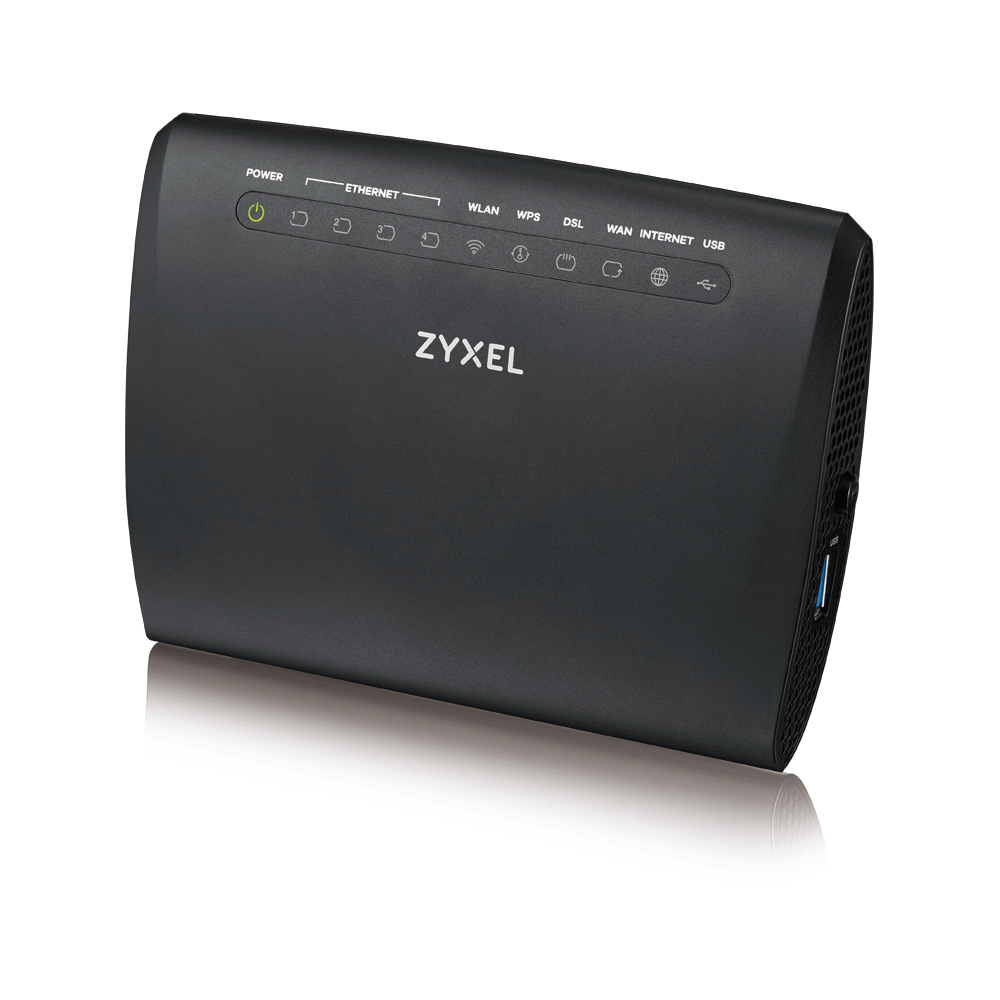

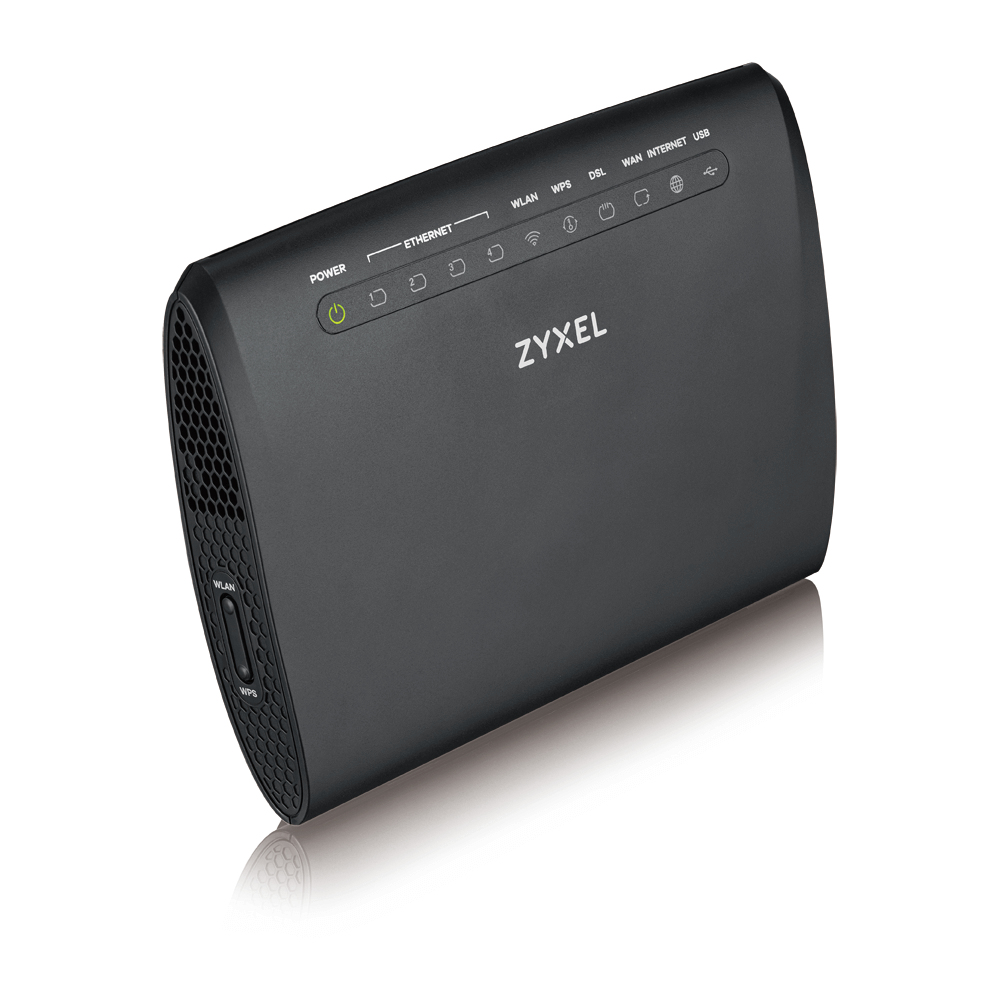

VMG3312-T20A gateway/controller 10, 100 Mbit/s
Model VMG3312-T20AEAN 4718937597789
42 specifications
- Weight220 g
- ColourBlack
- Antenna typeInternal
- Control display unitNo
- Static routeYes
- Ethernet LAN data rates10,100 Mbit/s
Overview
- Weight
- 220 g
- Colour
- Black
- Antenna type
- Internal
- Control display unit
- No
- Static route
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Brand
- Zyxel
- Category
- Gateways/Controllers
- Model
- VMG3312-T20A
- Part number
- VMG3312-T20A
- EAN / UPC
- 4718937597789, 4718937602889
- Also known as
- Zyxel VMG3312-T20A gateway/controller 10, 100 Mbit/s
Specifications
42 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| WPS push button | Yes |
| LED indicators | DSL, LAN, Power, USB, WAN, WLAN, WPS |
Features
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
Data transmission
| Specification | Value |
|---|---|
| Static route | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D |
| Wi-Fi | Yes |
| Frequency band | 2.4 GHz |
| DSL specification | TR-069, TR-098, TR-181 issue-2, TR-064, TR-111 |
| Data transfer rate | 0.3 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | AES, SSID, TKIP, WEP, WPA, WPA2, WPA2-PSK, WPS |
| DoS attack prevention | Yes |
| Firewall security | Yes |
| VLAN support | Yes |

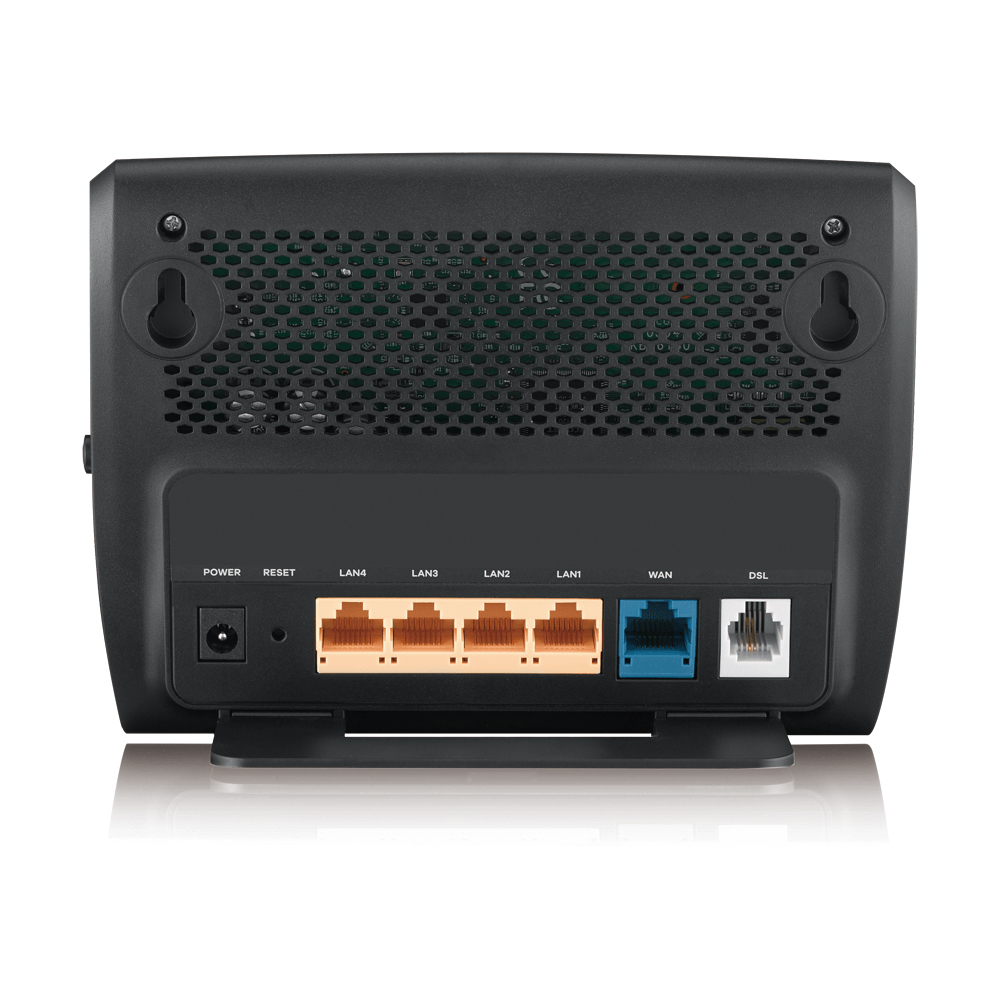

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | ADSL (RJ-11), Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 118 mm |
| Height | 26 mm |
| Width | 158 mm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 145 mm |
| Package height | 37 mm |
| Package width | 260 mm |
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
