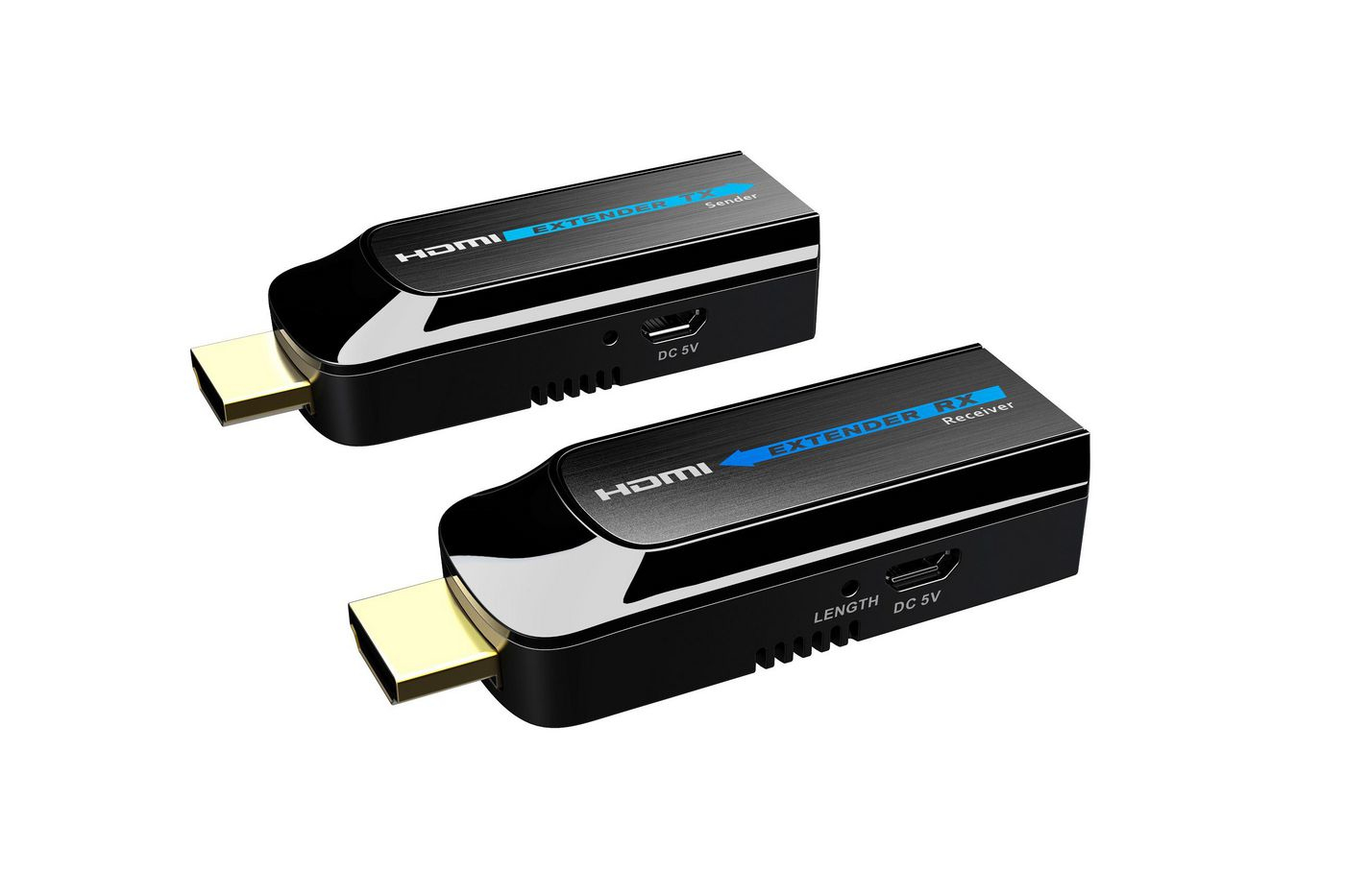

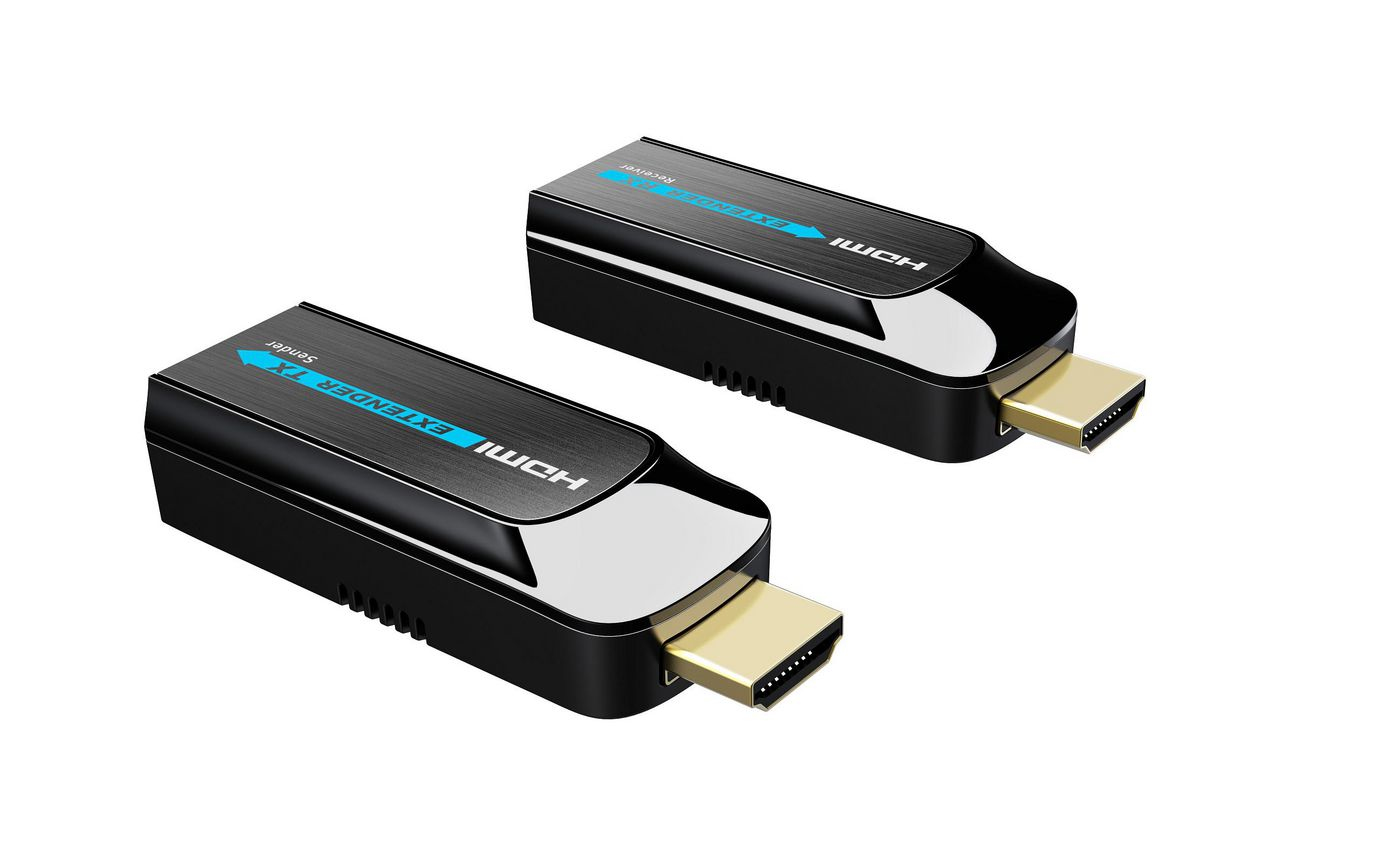

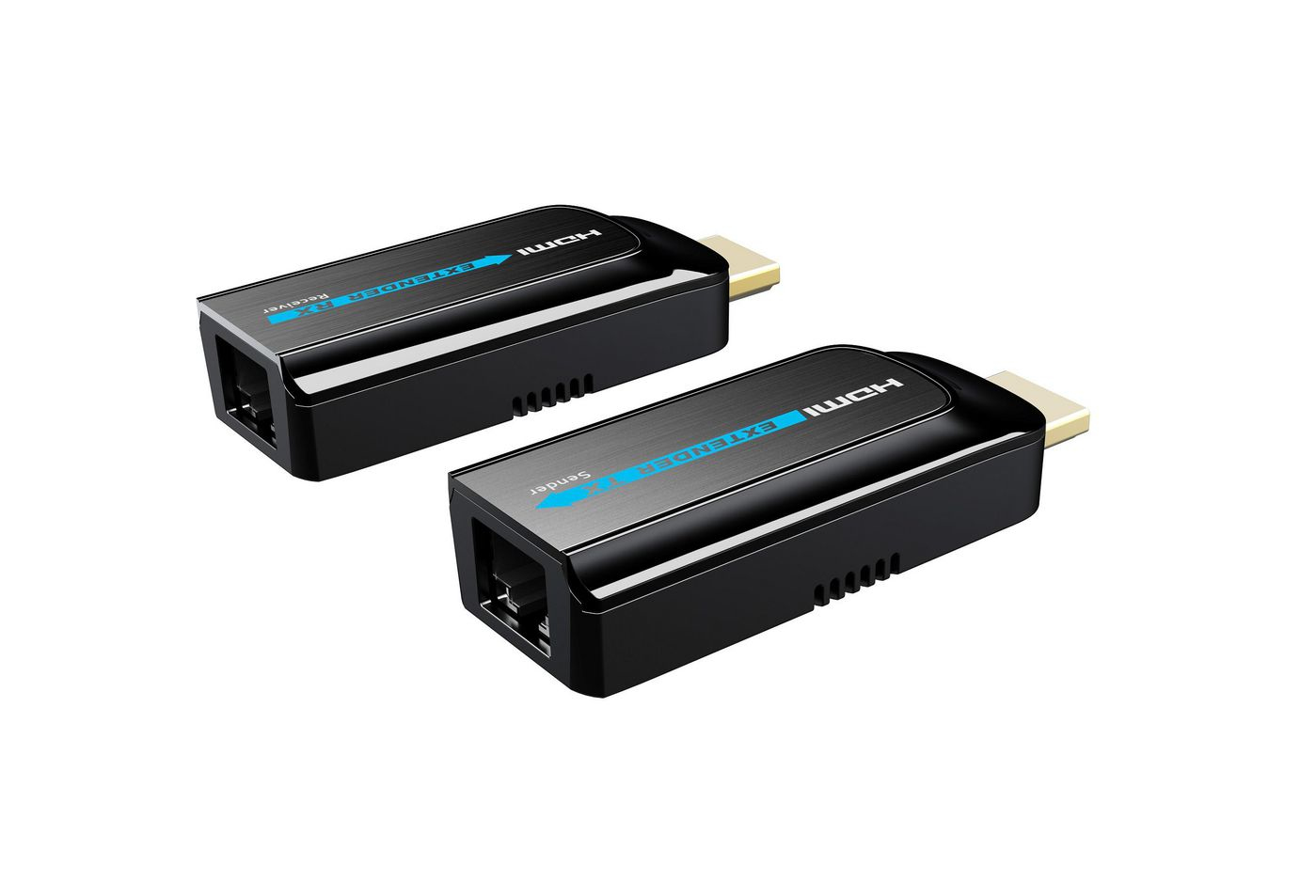

VLHDMIEXTDGL50 AV extender AV transmitter Black
Model VLHDMIEXTDGL50EAN 5704174842712
44 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight318 g
- ColourBlack
- Operating voltage (transmitter)5 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 318 g
- Colour
- Black
- Operating voltage (transmitter)
- 5 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Vivolink
- Category
- AV Extender
- Model
- VLHDMIEXTDGL50
- Part number
- VLHDMIEXTDGL50
- EAN / UPC
- 5704174842712
- Also known as
- Vivolink VLHDMIEXTDGL50 AV extender AV transmitter Black
Specifications
44 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 50 m |
| HDCP pass-through | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 1.2 |
| Material | Acrylonitrile butadiene styrene (ABS) |
| Supported video modes | 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Output current | 1 A |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 3 W |
| External power adapter | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Width | 153 mm |
| Depth | 119 mm |
| Height | 80 mm |
| Weight | 318 g |
| Receiver weight | 10 g |
| Transmitter dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Transmitter weight | 10 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 120 x 80 x 60 mm |
| Package width | 153 mm |
| Package depth | 119 mm |
| Package height | 80 mm |
| Package weight | 320 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| Manual | Yes |
| Packaging content | 1 x Transmitter HDMI dongle |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
