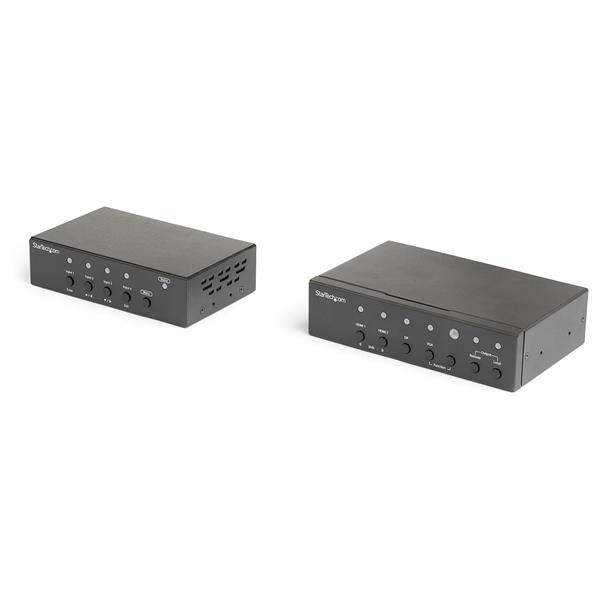

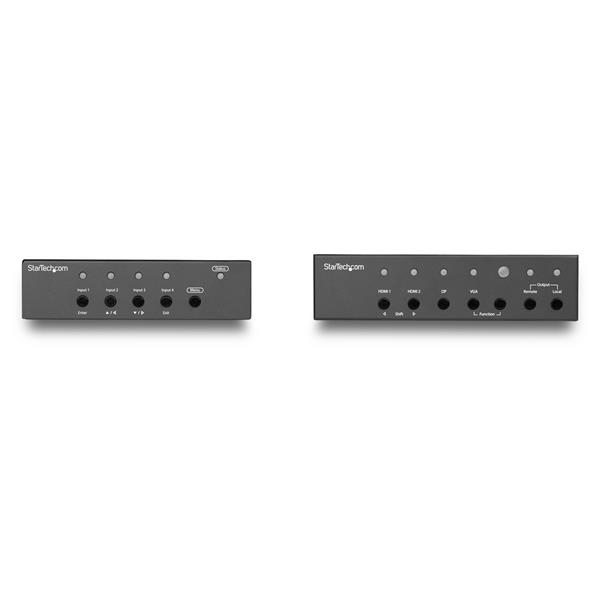

Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler
Model ST121HDBTSCEAN 065030879200
59 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight2 kg
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 2 kg
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST121HDBTSC
- Part number
- ST121HDBTSC
- EAN / UPC
- 065030879200
- Also known as
- StarTech.com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler
Specifications
59 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| Daisy chain | No |
| HDCP & EDID bypass | Yes |
| LED indicators | Yes |
| Material | Aluminium |
| Rack mounting | Yes |
| Rubber feet | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Certification | CE, FCC, TAA |

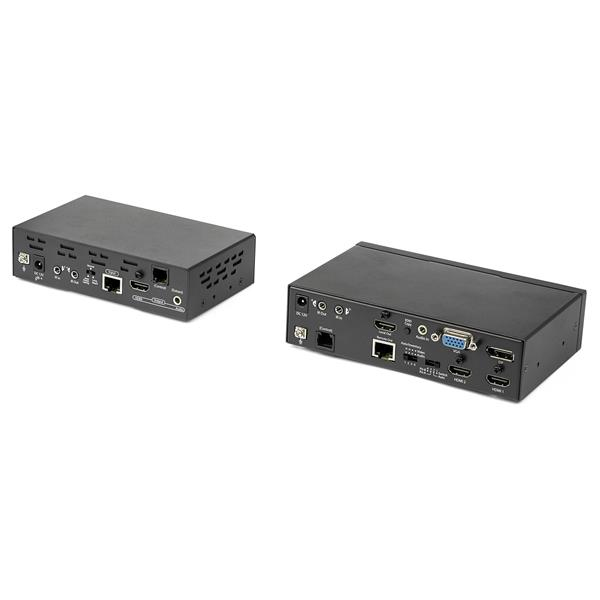

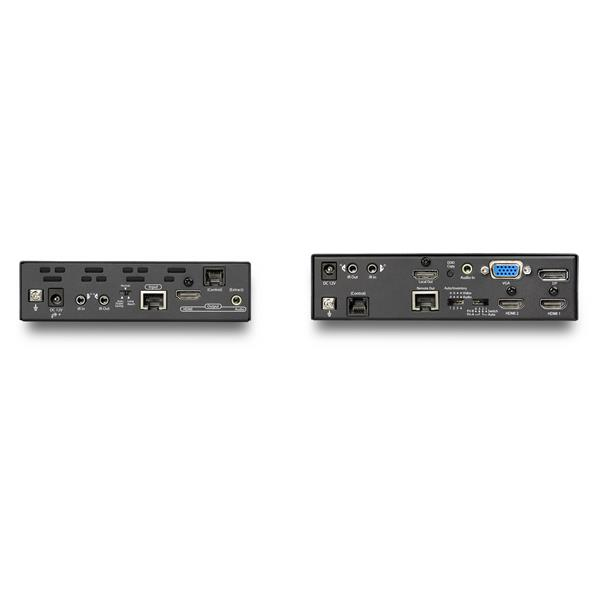

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| DisplayPorts in | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| AUX in | Yes |
| RJ-11 ports quantity | 2 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 106 mm |
| Height | 67 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 98 mm |
| Package depth | 160 mm |
| Package height | 40 mm |

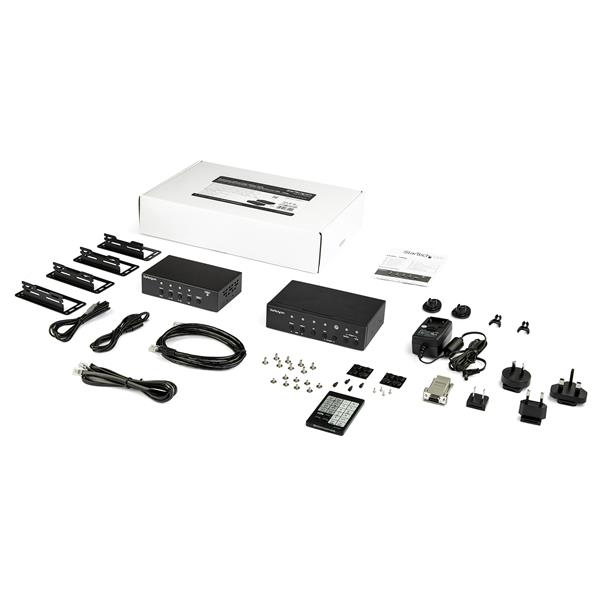

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 385 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 6 pc(s) |
