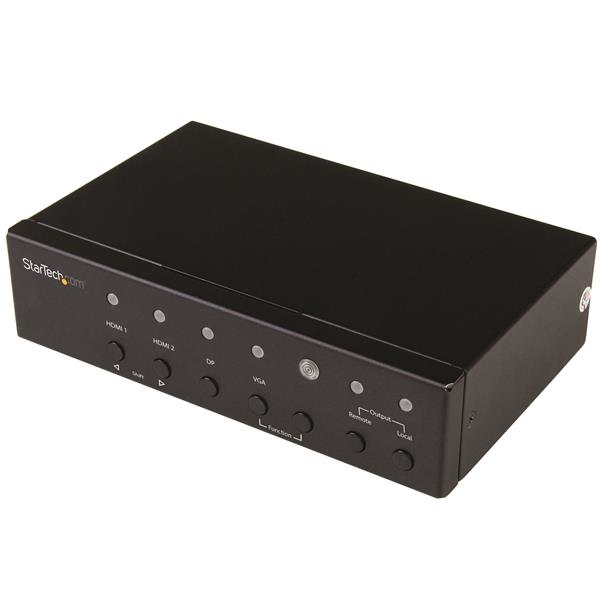

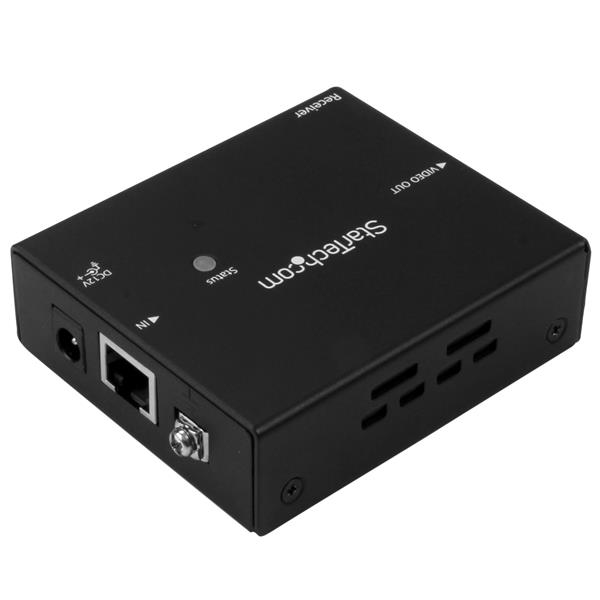

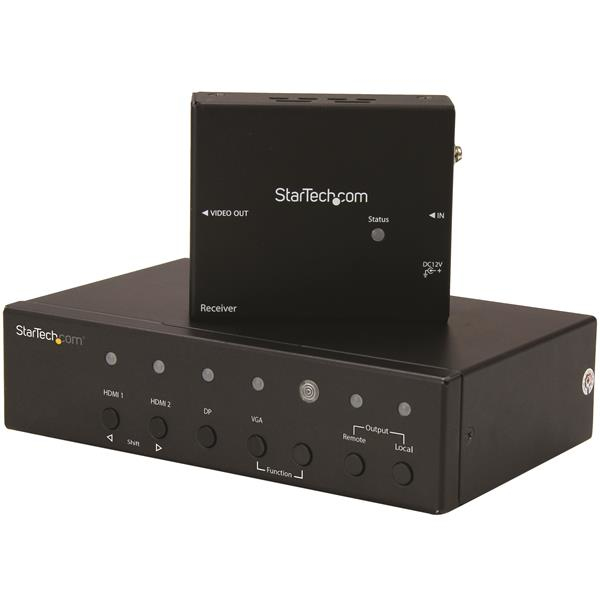

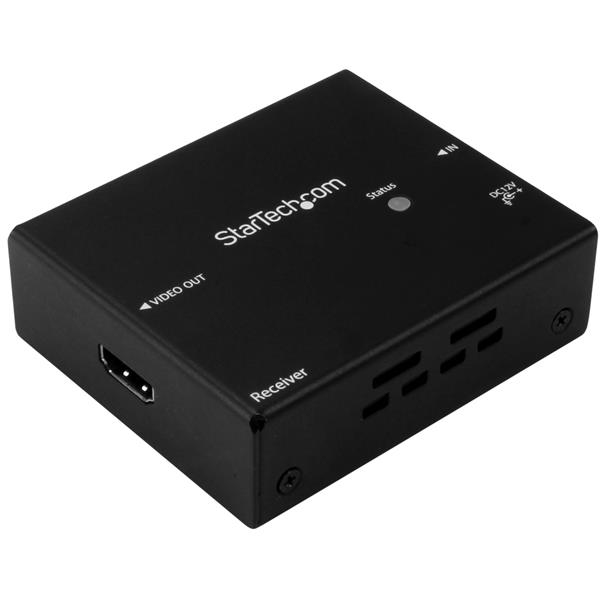

StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K - TAA
StarTech.com

Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K - TAA

Model STDHVHDBTEAN 065030864572

58 specifications
  • TypeAV transmitter & receiver
  • Weight918 g
  • ColourBlack
  • RJ-45 input ports1
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Type
AV transmitter & receiver
Weight
918 g
Colour
Black
RJ-45 input ports
1
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
0 - 80%
Brand
StarTech.com
Category
AV Extender
Model
STDHVHDBT
Part number
STDHVHDBT
EAN / UPC
065030864572
Also known as
StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K - TAA

Specifications

58 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio systemMultichannel
Audio output channels7.1 channels
Daisy chainNo
LED indicatorsYes
Plug and PlayYes
Rack mountingYes
Remote control typeIrDA
Rubber feetYes
Supported video modes720p, 1080p, 2160p
Product colourBlack
HDBaseT certifiedYes
CertificationCE, FCC, REACH, TAA

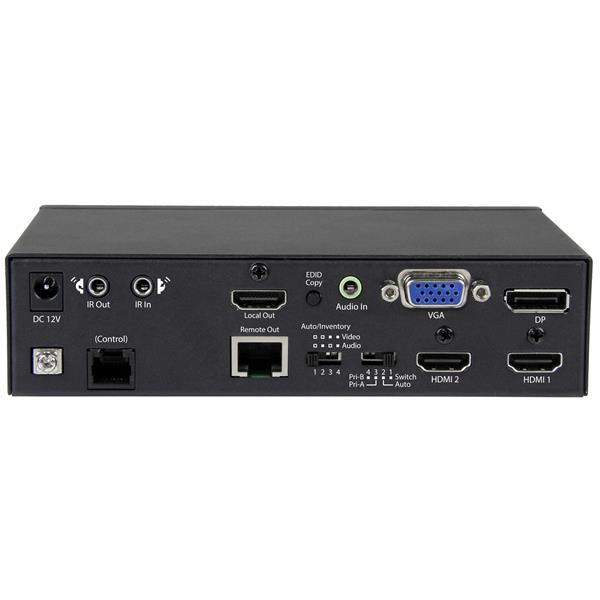

Ports & interfaces

RJ-45 input ports1
RJ-45 output ports1
VGA (D-Sub) input ports1
HDMI in2
Number of HDMI outputs2
DisplayPorts in1
3.5 mm (1/8-inch) inYes
Remote (IR) input1
Remote (IR) output1
DC-in jackYes

Power

AC input voltage100 - 240 V
Operating voltage12 V
Input current0.6 A
Output current1.5 A
Power consumption (typical)18 W
External power adapterYes
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Width160 mm
Depth100 mm
Height40 mm
Weight918 g

Packaging data

Package width220 mm
Package depth311 mm
Package height85 mm
Package weight1.68 kg

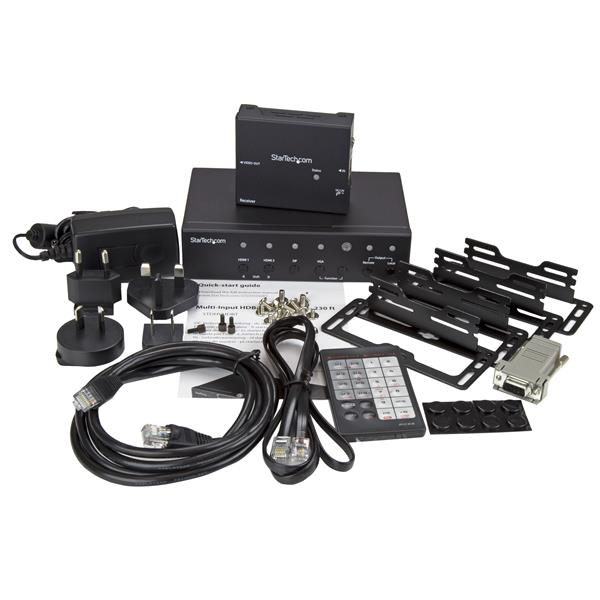

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45), Phone (RJ-11)
Included power plug typesANZ, EU, NA, UK
Quick start guideYes
Mounting brackets includedYes
Mounting kitYes
Remote control includedYes

Technical details

Compliance certificatesRoHS
Audio supportYes

Logistics data

Master (outer) case width324 mm
Master (outer) case length416 mm
Master (outer) case height262 mm
Products per master (outer) case6 pc(s)
