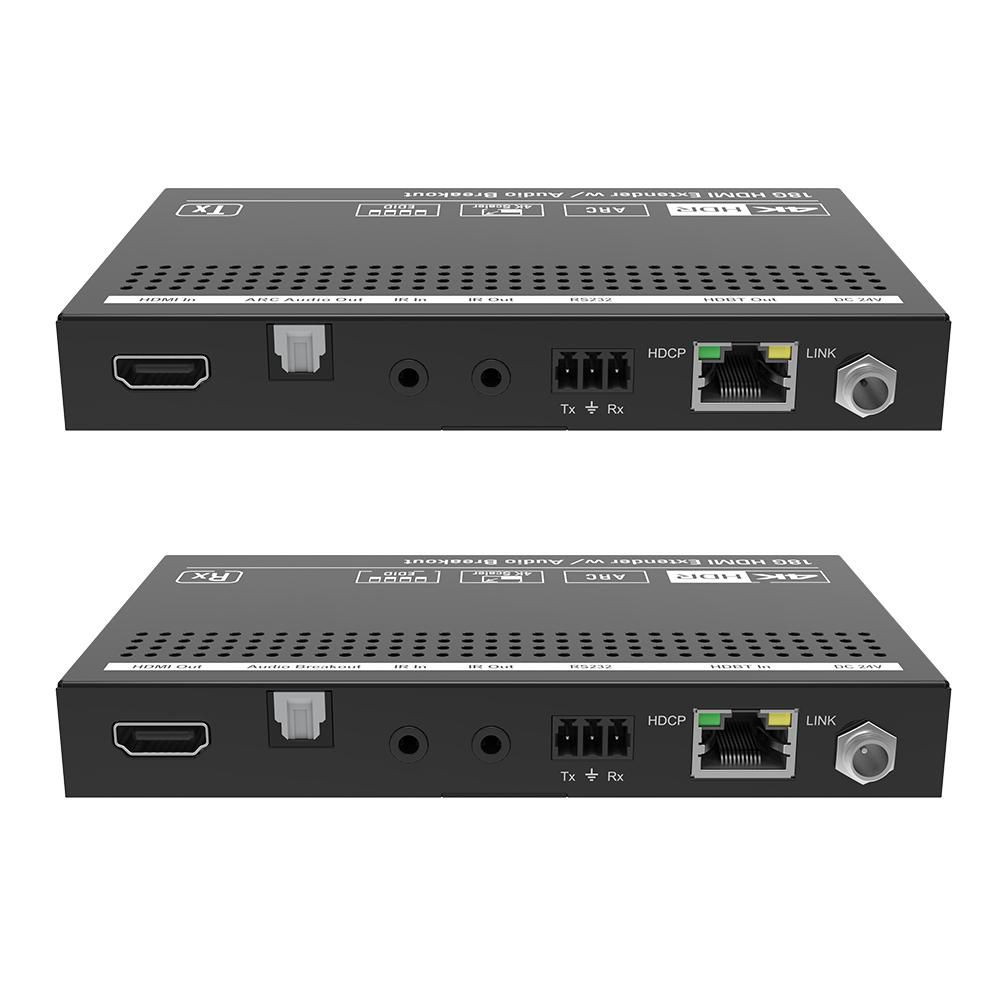

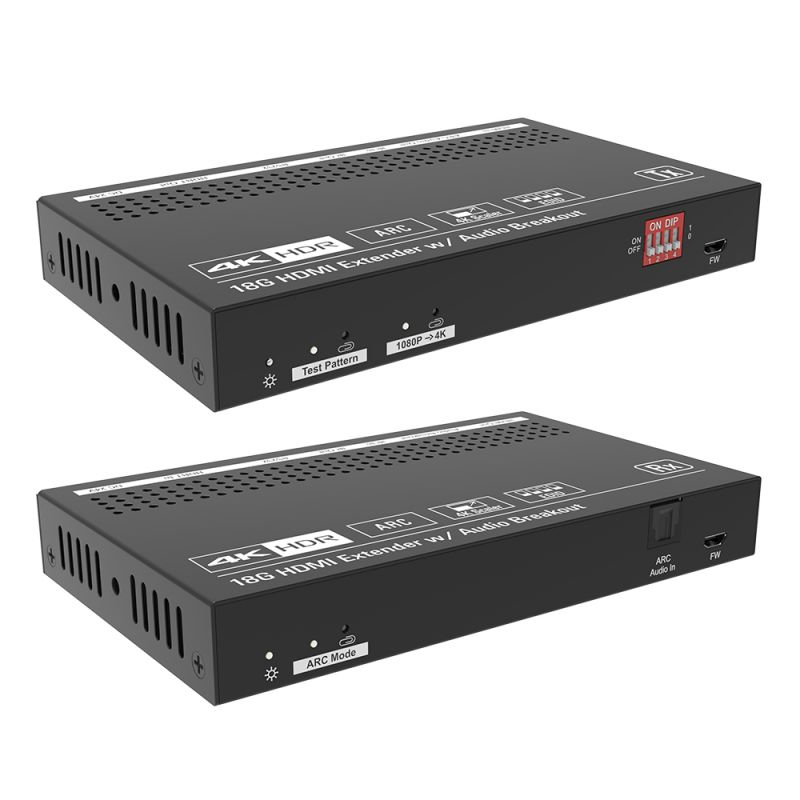

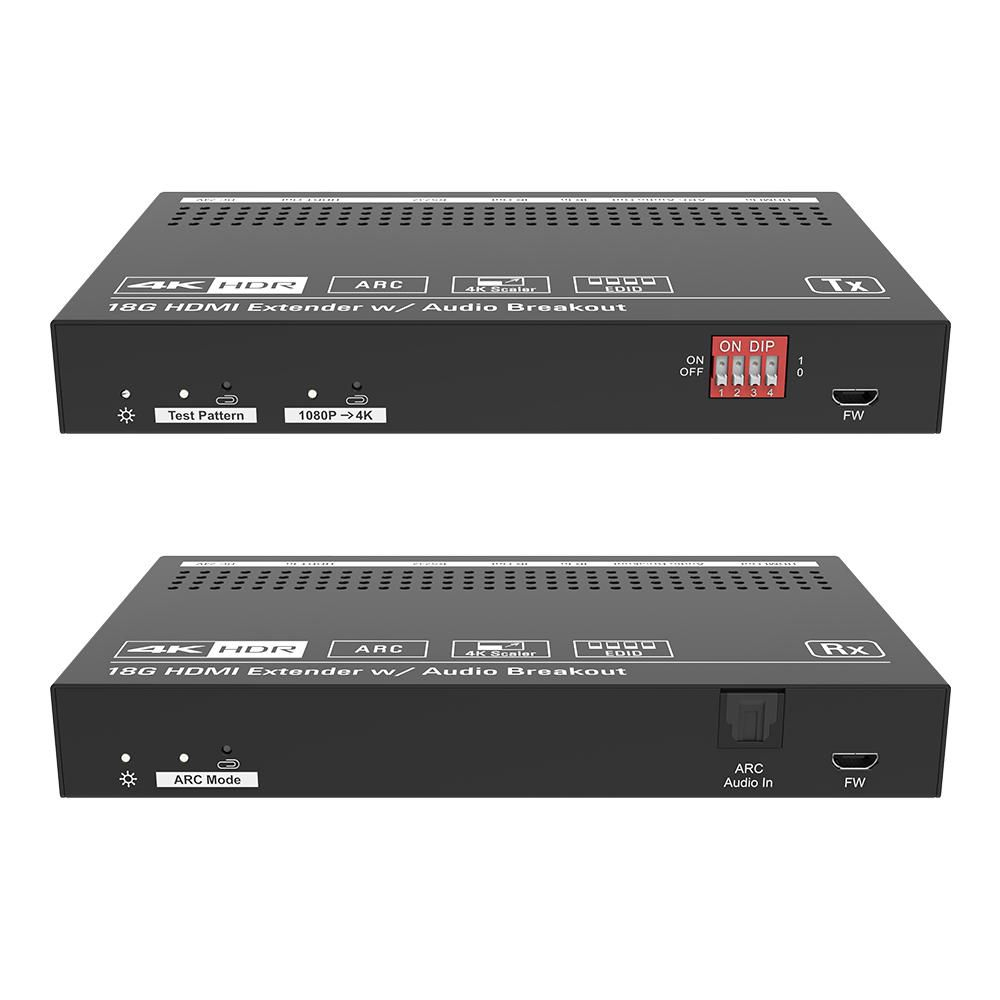

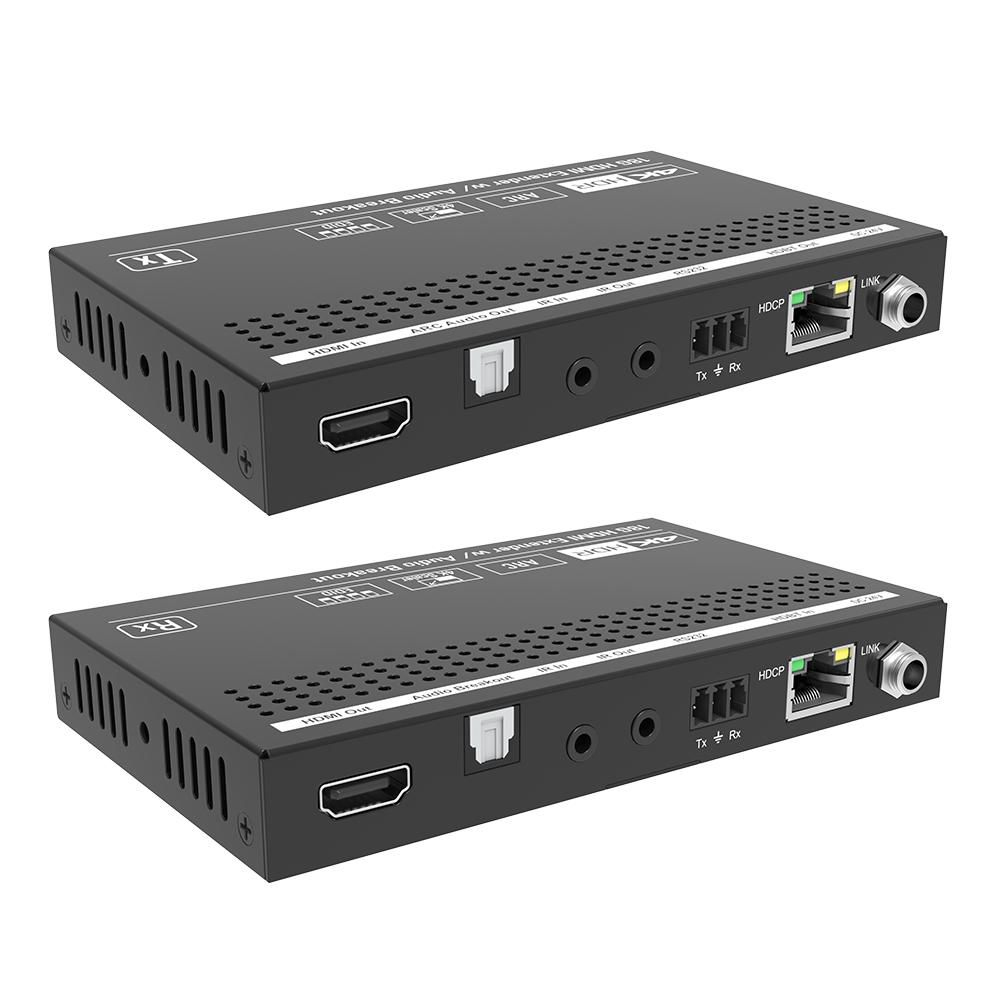

VLHDMIEXTHDB2.0S AV extender AV transmitter & receiver Black
Model VLHDMIEXTHDB2.0SEAN 5715063697863
60 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight500 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating temperature (T-T)-10 - 50 °C
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 500 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- -10 - 50 °C
- Brand
- Vivolink
- Category
- AV Extender
- Model
- VLHDMIEXTHDB2.0S
- Part number
- VLHDMIEXTHDB2.0S
- EAN / UPC
- 5715063697863
- Also known as
- Vivolink VLHDMIEXTHDB2.0S AV extender AV transmitter & receiver Black
Specifications
60 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| CEC pass-through | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| RS-232 pass-through | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| Wall mountable | Yes |
| Product colour | Black |
| HDBaseT certified | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Digital audio optical output type | TOSLINK |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating voltage | 24 V |
| Power consumption (transmitter) (max) | 14 W |
| Power consumption (receiver) (max) | 14 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 161 mm |
| Height | 126 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 184 mm |
| Package depth | 161 mm |
| Package height | 126 mm |
| Package length | 18.5 cm |
| Package weight | 660 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
