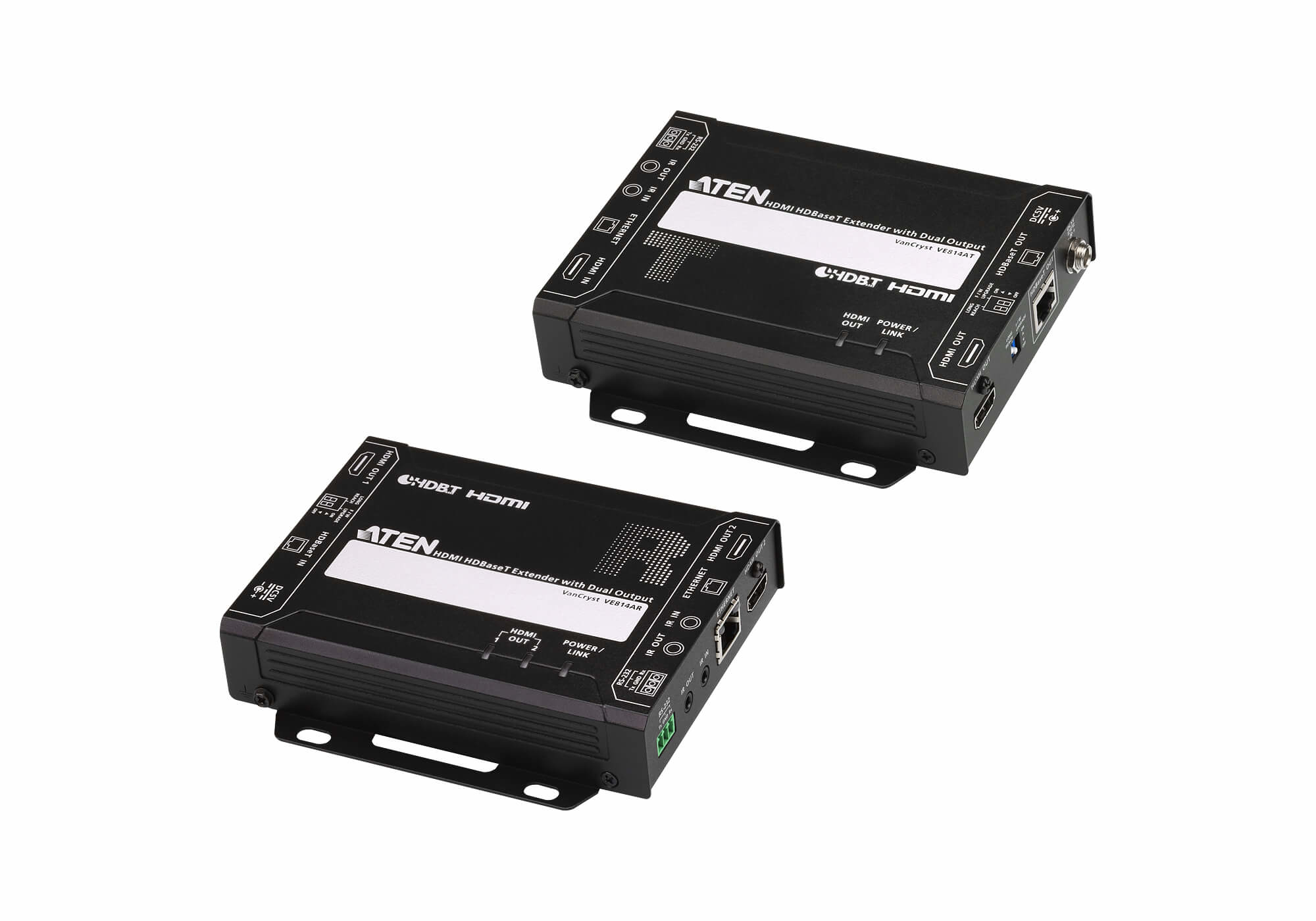

HDMI HDBaseT Extender with Dual output
Model VE814A-AT-GEAN 4719264646041
57 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight1.14 kg
- ColourBlack
- Operating voltage (transmitter)5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 1.14 kg
- Colour
- Black
- Operating voltage (transmitter)
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE814A-AT-G
- Part number
- VE814A-AT-G
- EAN / UPC
- 4719264646041
- Also known as
- ATEN HDMI HDBaseT Extender with Dual output
Specifications
57 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Consumer Electronics Control (CEC) support | Yes |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Impedance | 100 Ω |
| Material | Metal |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 1080p |
| Product colour | Black |
| HDBaseT certified | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 5.09 W |
| Power consumption (RX) | 7.87 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.14 kg |
| Receiver dimensions (WxDxH) | 140.2 x 123 x 30 mm |
| Receiver weight | 470 g |
| Transmitter dimensions (WxDxH) | 140.2 x 123 x 30 mm |
| Transmitter weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.39 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 7.63 kg |
| Master (outer) case net weight | 5.7 kg |
| Products per master (outer) case | 5 pc(s) |
