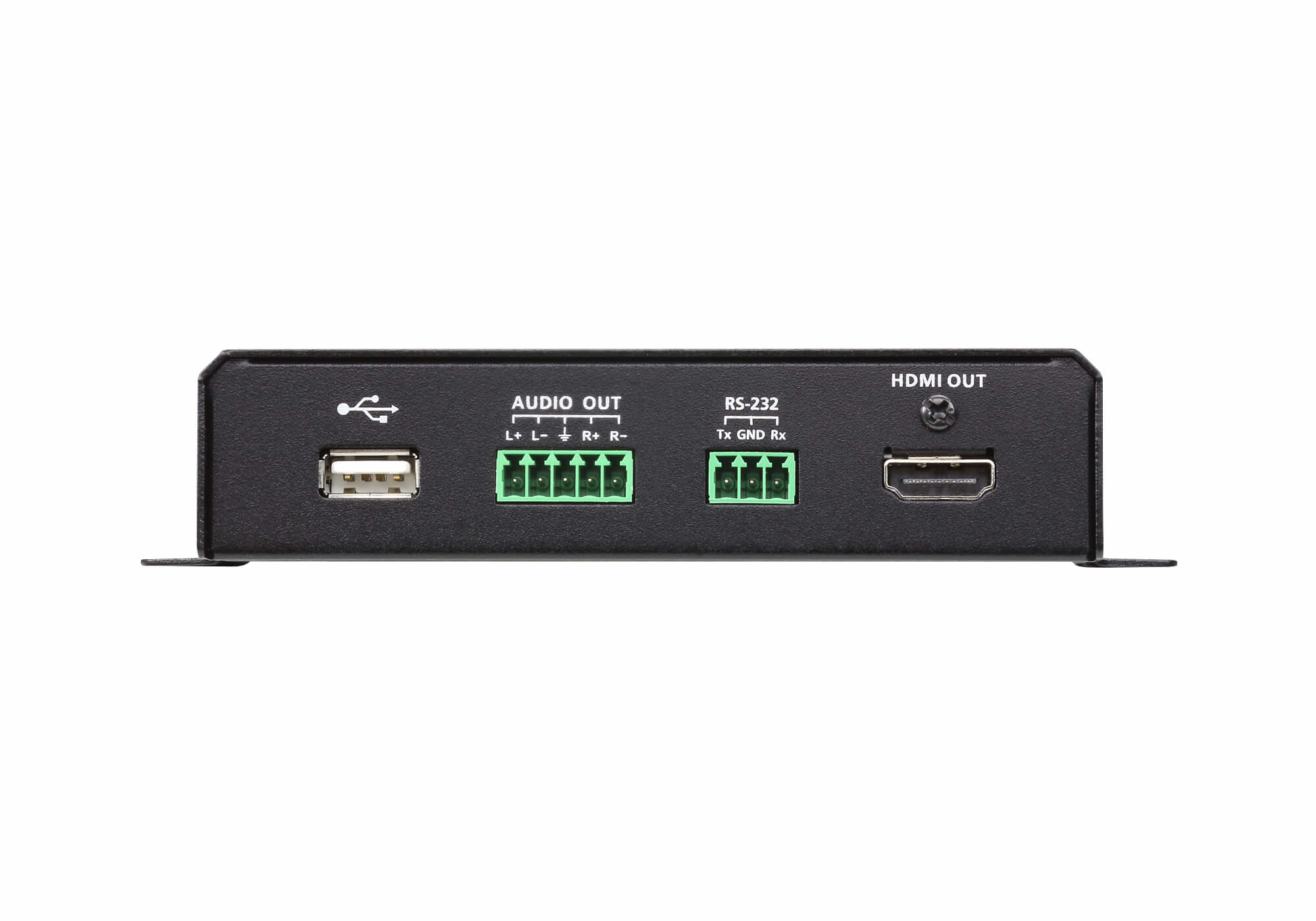

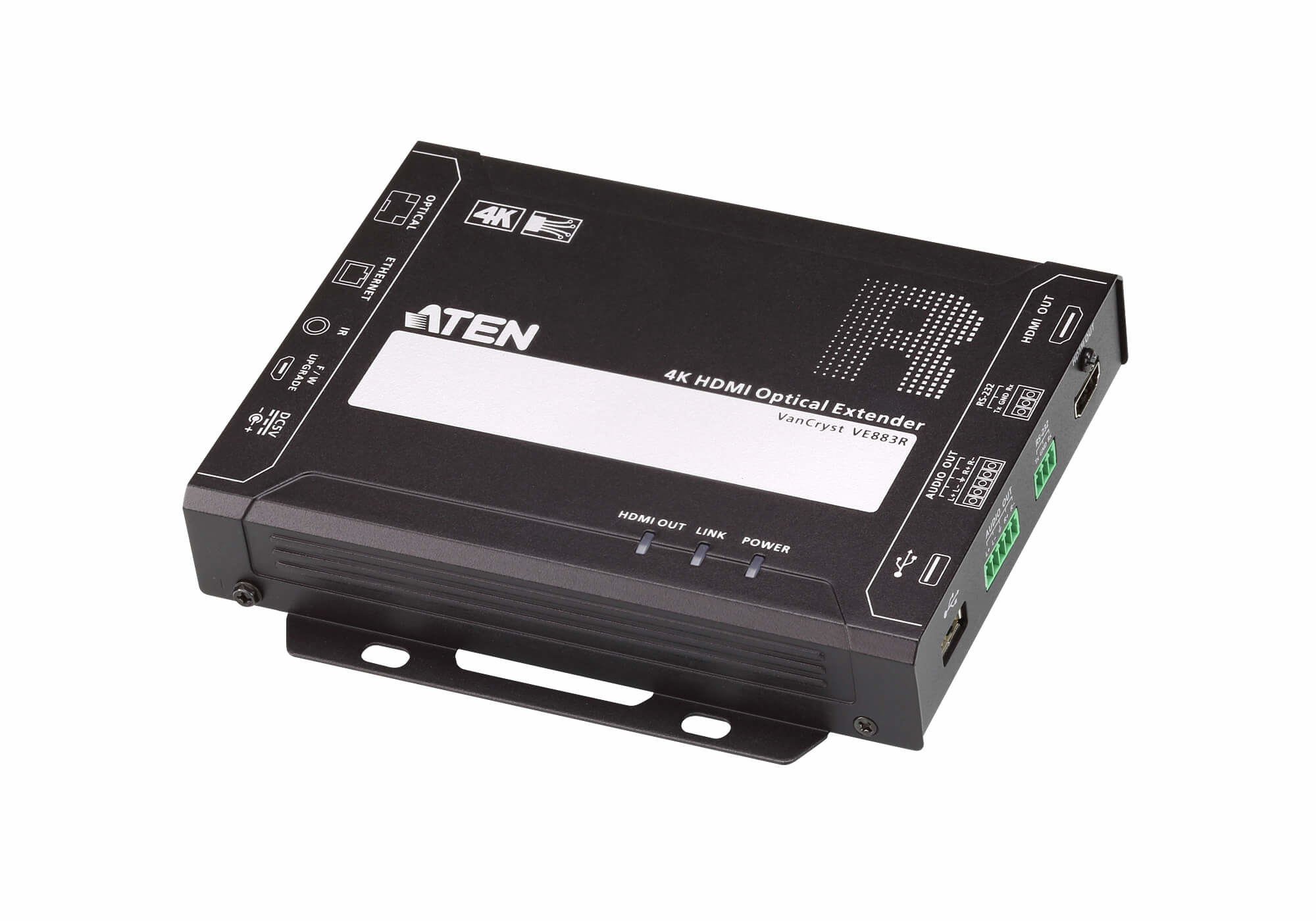

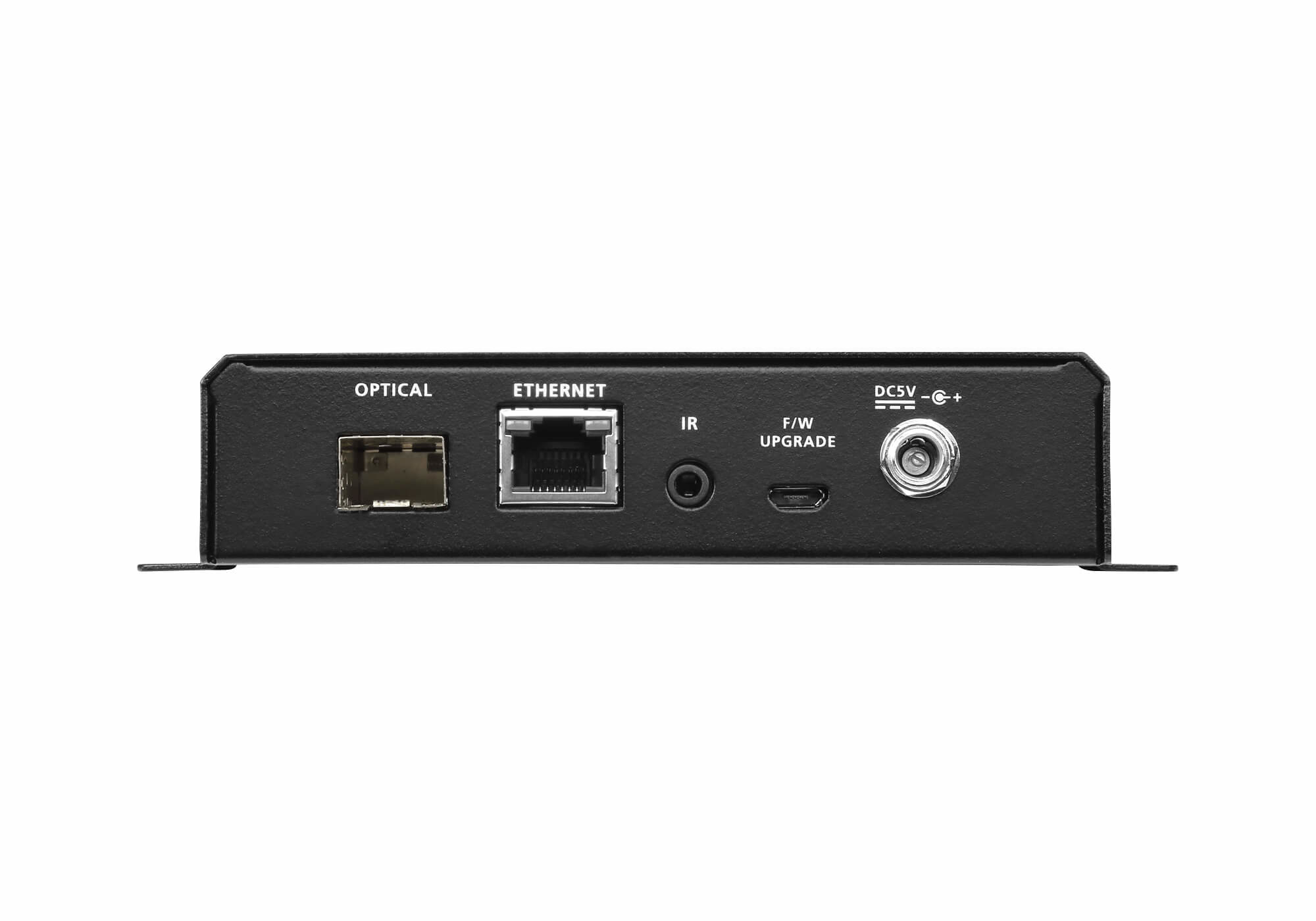

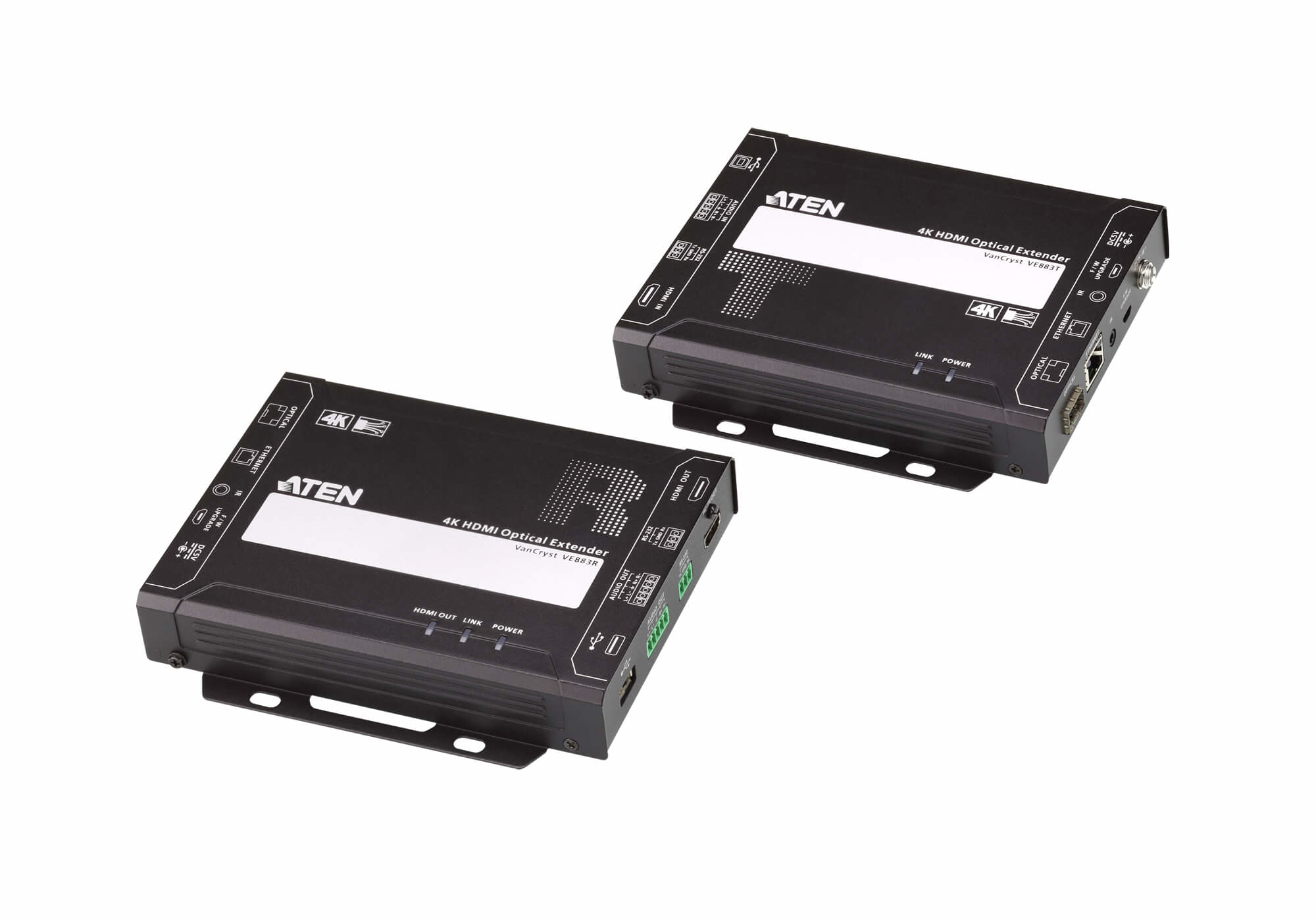

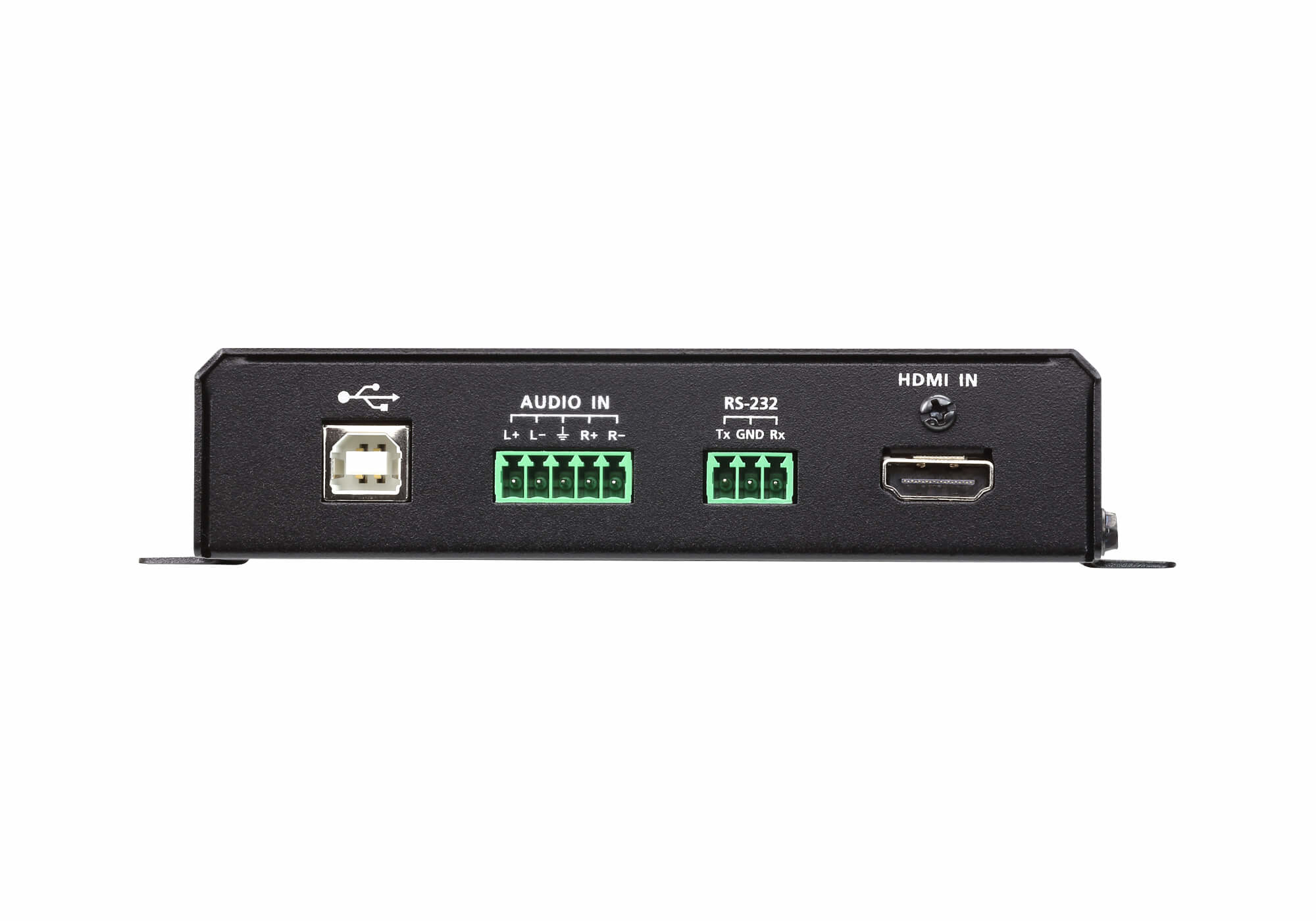

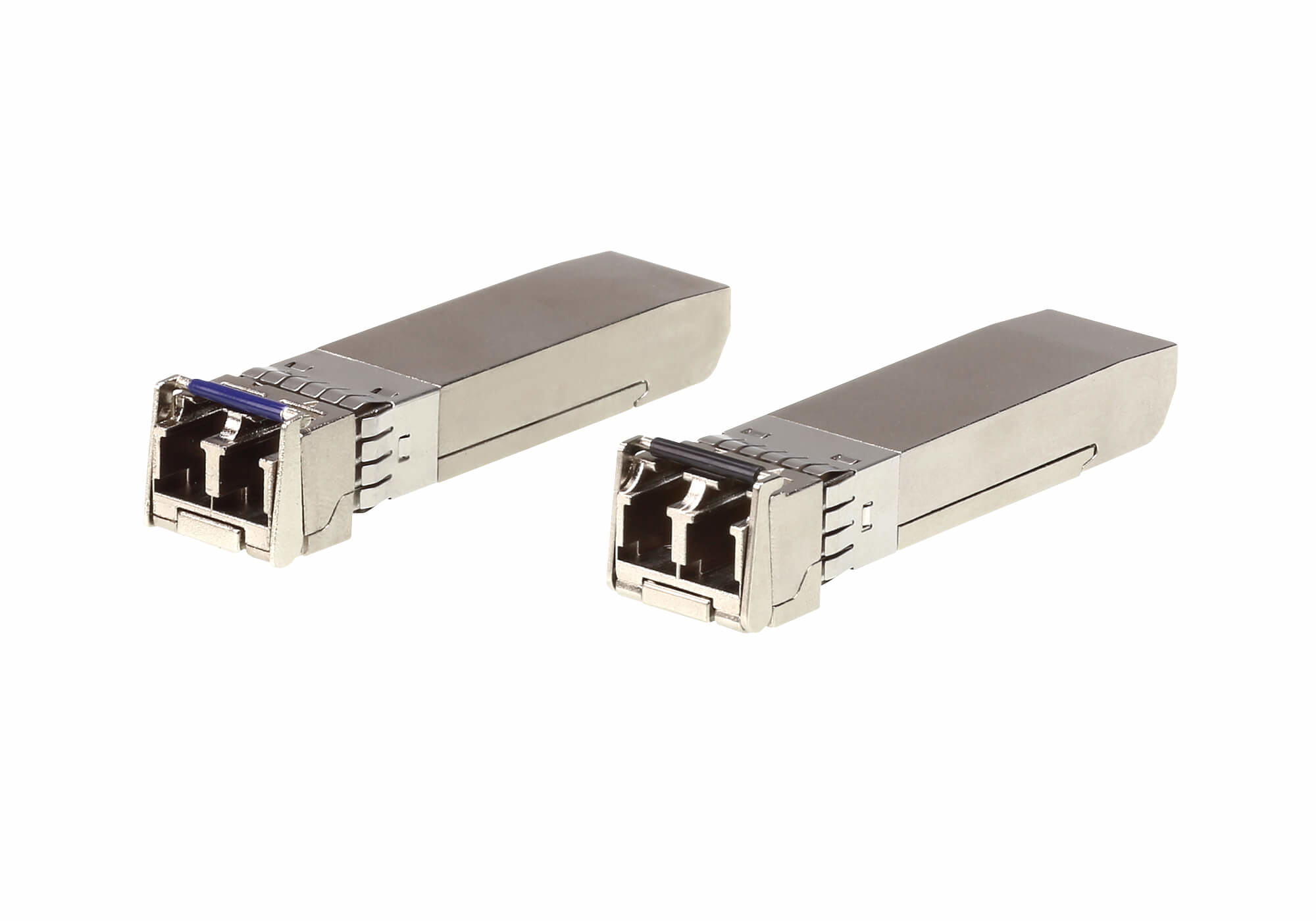

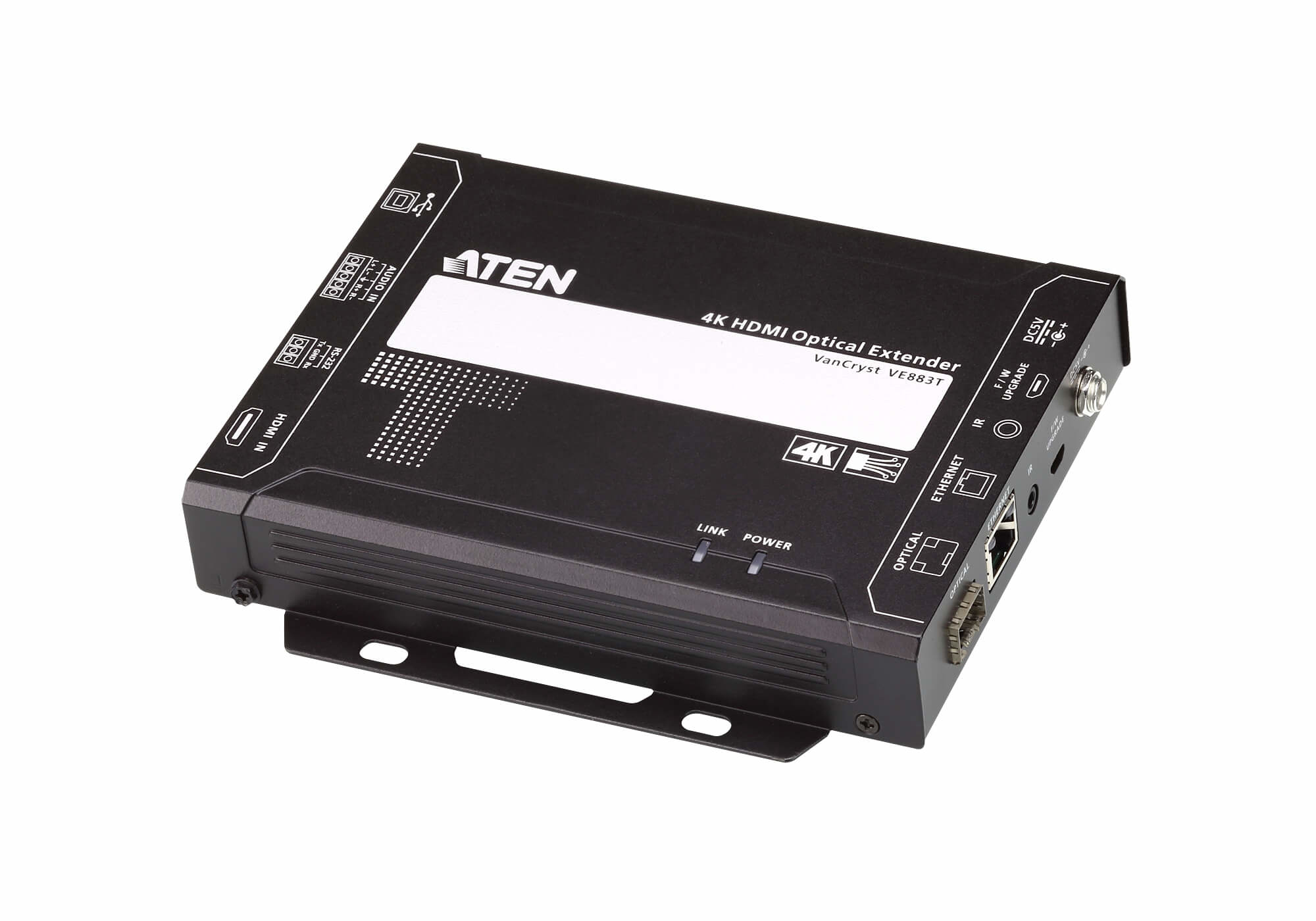

ATEN 4K HDMI Optical Extender (W/10KM SFP
ATEN

4K HDMI Optical Extender (W/10KM SFP

Model VE883K2-AT-GEAN 4719264646256

60 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight1.68 kg
  • ColourBlack
  • Operating voltage5 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
1.68 kg
Colour
Black
Operating voltage
5 V
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VE883K2-AT-G
Part number
VE883K2-AT-G
EAN / UPC
4719264646256, 4719646465666
Also known as
ATEN 4K HDMI Optical Extender (W/10KM SFP

Specifications

60 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedFiber
Maximum transfer distance10000 m
Fiber mode structureSingle-mode
Fiber optic wavelengths supported1310 nm
BidirectionalYes
Electrostatic Discharge (ESD) protectionYes
Electrostatic Discharge (ESD) protection15 kV
3DYes
Bandwidth10.2 Gbit/s
Bandwidth340 MHz
Firmware upgradeableYes
HDCPYes
HDCP version2.2
Impedance100 Ω
LED indicatorsYes
MaterialMetal
Plug and PlayYes
Supported graphics resolutions3840 x 2160, 4096 x 2160
Product colourBlack

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
Fiber optic connectorLC
USB ports quantity1
USB version2.0
USB connector typeMicro-USB B
RS-232 input ports2
3.5 mm (1/8-inch) inYes
DC-in jackYes

Power

Operating voltage5 V
Power consumption (transmitter) (max)7.05 W
Power consumption (receiver) (max)6.77 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width166 mm
Depth124.9 mm
Height29 mm
Weight1.68 kg

Packaging data

Quantity per pack2 pc(s)
Package width98 mm
Package depth325 mm
Package height210 mm
Package weight1.91 kg

Packaging content

AC adapter includedYes
Cables includedUSB
IR emitter includedYes
IR receiver includedYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case width342 mm
Master (outer) case length512 mm
Master (outer) case height232 mm
Master (outer) case gross weight10.4 kg
Master (outer) case net weight8.4 kg
Products per master (outer) case5 pc(s)
