VL120016 AV extender AV transmitter & receiver Black
Model VL120016EAN 5712505765043
62 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight658 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 658 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Vivolink
- Category
- AV Extender
- Model
- VL120016
- Part number
- VL120016
- EAN / UPC
- 5712505765043
- Also known as
- Vivolink VL120016 AV extender AV transmitter & receiver Black

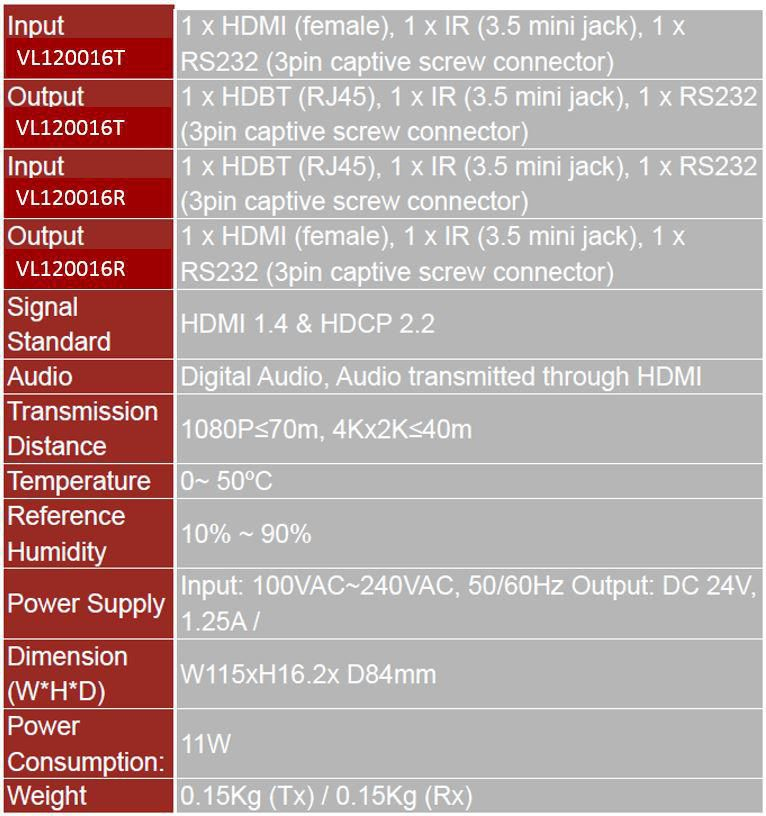

Specifications
62 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| CEC pass-through | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| RS-232 pass-through | Yes |
| Bandwidth | 10.2 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP & EDID bypass | Yes |
| LED indicators | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| Wall mountable | Yes |
| Product colour | Black |
| HDBaseT certified | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating voltage (transmitter) | 24 V |
| Operating voltage (receiver) | 24 V |
| Output current | 1.5 A |
| Power consumption (transmitter) (max) | 11 W |
| Power consumption (receiver) (max) | 11 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 160 mm |
| Height | 129 mm |
| Weight | 658 g |
| Receiver weight | 150 g |
| Transmitter dimensions (WxDxH) | 115 x 84 x 16.2 mm |
| Transmitter weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 184 mm |
| Package depth | 160 mm |
| Package height | 129 mm |
| Package weight | 758 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
