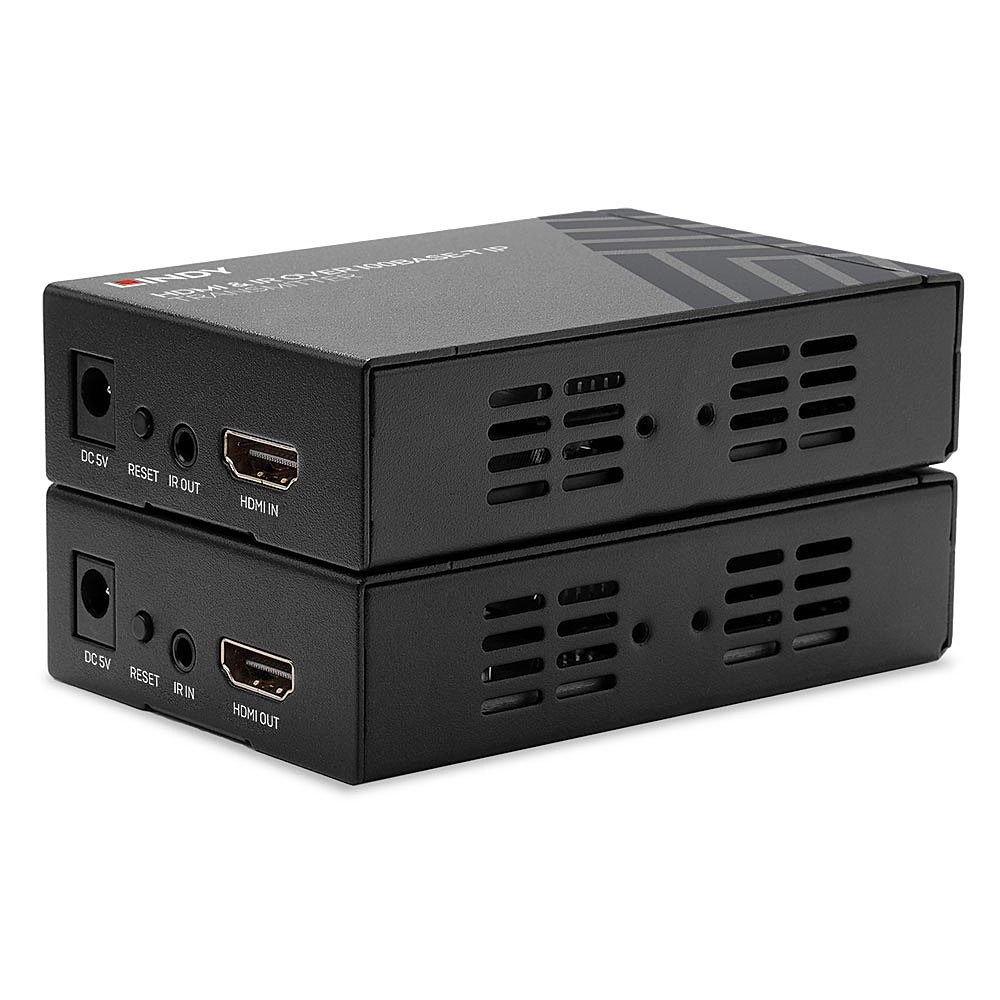

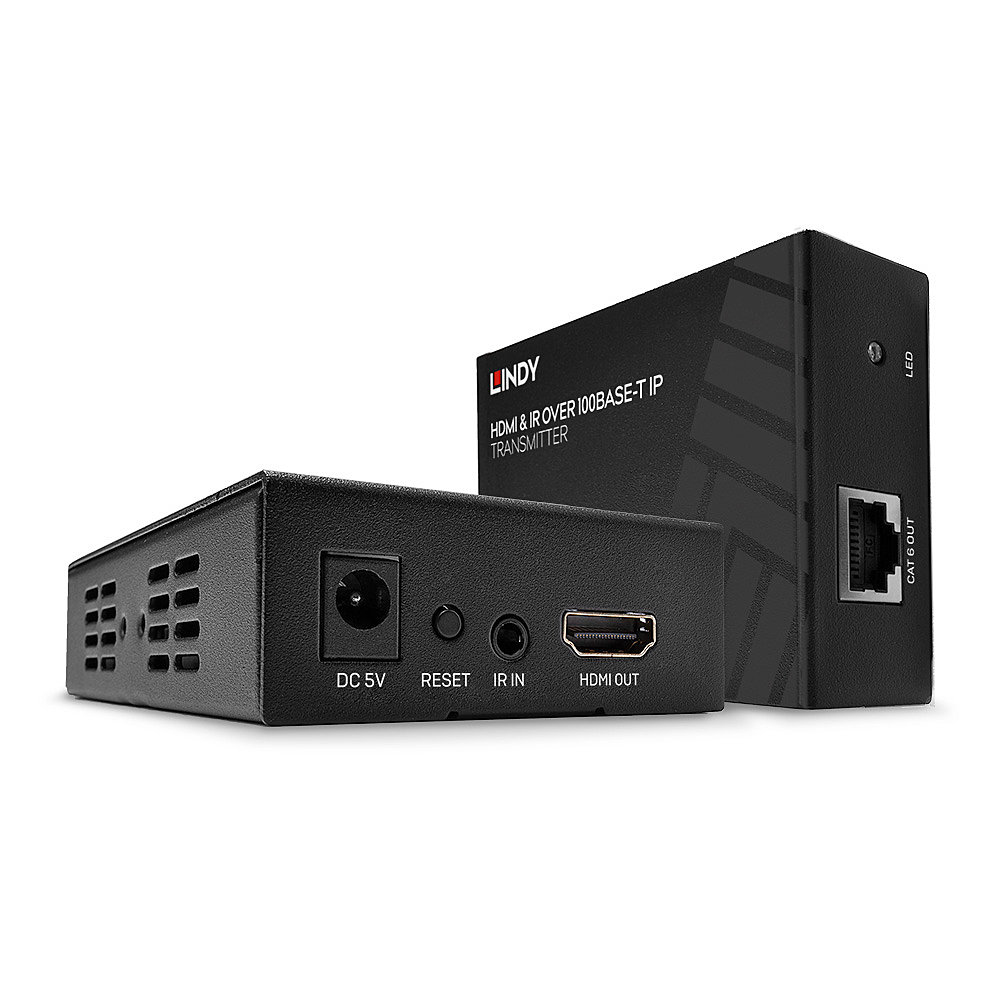

HDMI & IR over 100Base-T IP Extender
Model 38126EAN 4002888381260
61 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- AC input voltage100-240 V
- Operating relative humidity (H-H)20 - 90%
- Receiver dimensions (WxDxH)100 x 26 x 65 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- AC input voltage
- 100-240 V
- Operating relative humidity (H-H)
- 20 - 90%
- Receiver dimensions (WxDxH)
- 100 x 26 x 65 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38126
- Part number
- 38126
- EAN / UPC
- 4002888381260
- Also known as
- Lindy HDMI & IR over 100Base-T IP Extender
Specifications
61 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Chipset | Taifatech 680 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio system | stereo |
| Audio output channels | 2.0 channels |
| HDCP pass-through | Yes |
| Supported network protocols | IP |
| Infrared (IR) frequency range | 20 - 60 kHz |
| 3D | No |
| Audio formats supported | PCM |
| Bandwidth | 4.95 Gbit/s |
| Colour depth | 8 bit |
| Consumer Electronics Control (CEC) support | No |
| HDCP | Yes |
| Image formats supported | JPG |
| LED indicators | Yes |
| Material | Metal |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | CE, UKCA, FCC, REACH, RoHS |

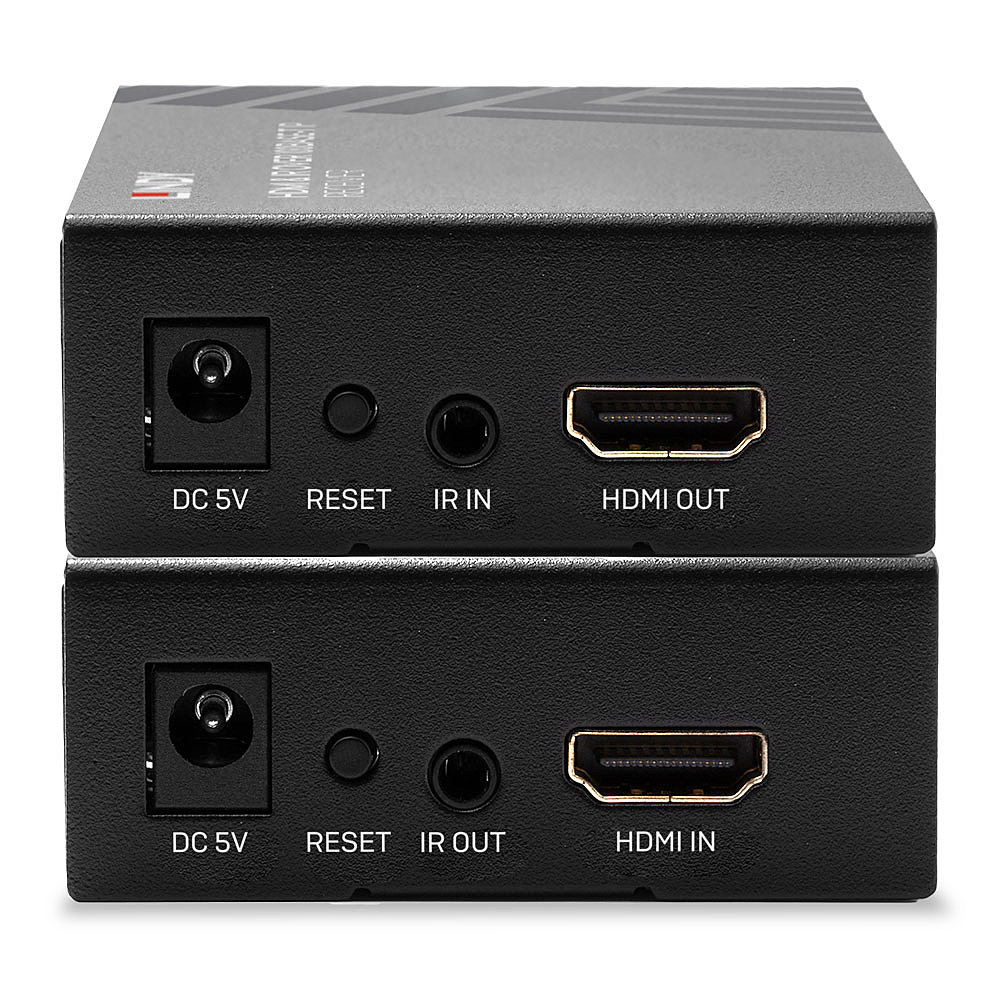

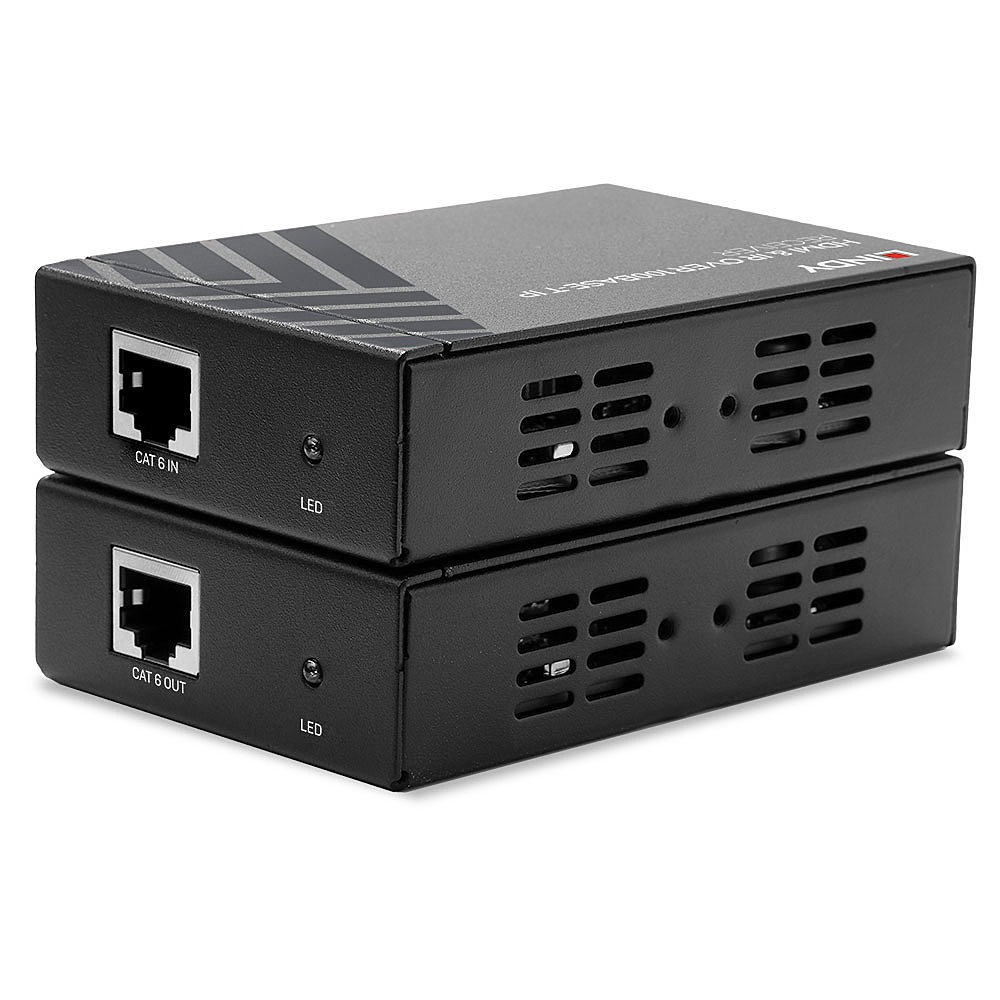

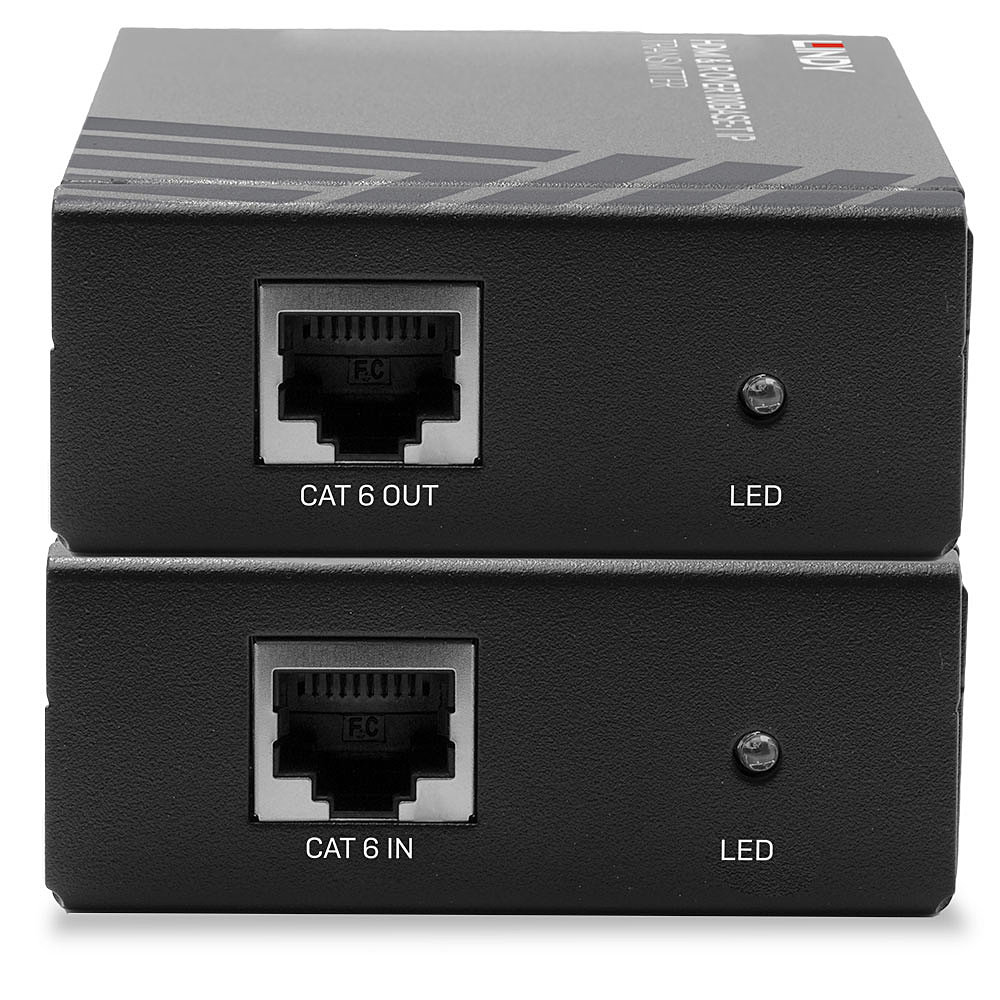

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.2 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3 W |
| External power adapter | Yes |
| Power note | 5.5/2.1mm DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 100 x 26 x 65 mm |
| Receiver weight | 245 g |
| Transmitter dimensions (WxDxH) | 100 x 26 x 65 mm |
| Transmitter weight | 245 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 230 mm |
| Package height | 60 mm |
| Package weight | 850 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| IR emitter included | Yes |
| IR extender included | Yes |
| Included power plug types | AU, EU, UK, US |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | REACH, RoHS |
