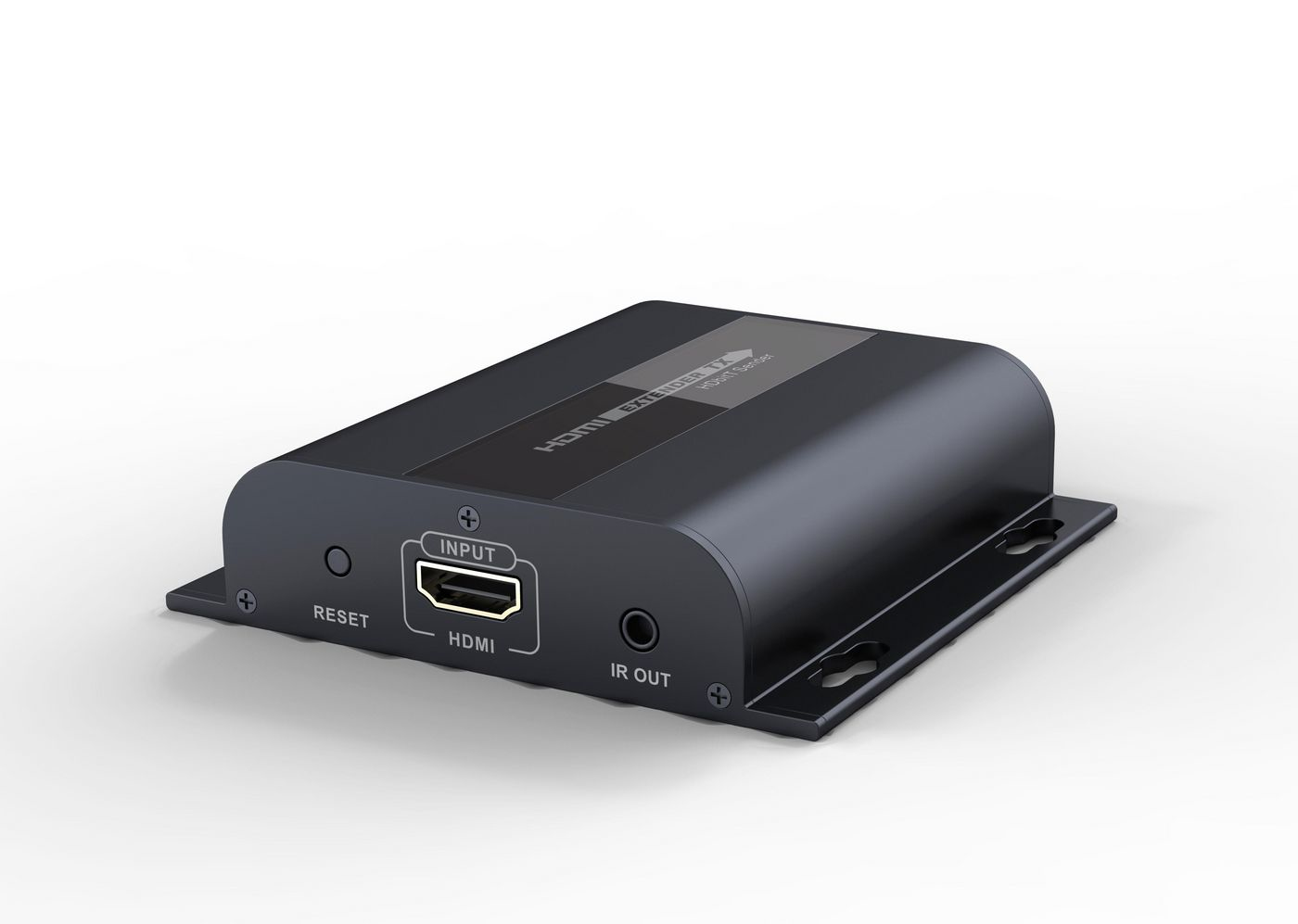

VLHDMIEXT1-TV2 AV extender AV transmitter Black
Model VLHDMIEXT1-TV2EAN 5704174238935
47 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight206 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 206 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Vivolink
- Category
- AV Extender
- Model
- VLHDMIEXT1-TV2
- Part number
- VLHDMIEXT1-TV2
- EAN / UPC
- 5704174238935
- Also known as
- Vivolink VLHDMIEXT1-TV2 AV extender AV transmitter Black
Specifications
47 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 120 m |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| Cable length | 120 m |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Remote control type | IR |
| Supported video modes | 1080p |
| Video compression formats | H.264 |
| Wall mountable | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 3.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96.8 mm |
| Depth | 94 mm |
| Height | 23.7 mm |
| Weight | 206 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 153 mm |
| Package depth | 119 mm |
| Package height | 80 mm |
| Package weight | 306 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| IR blaster included | No |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
