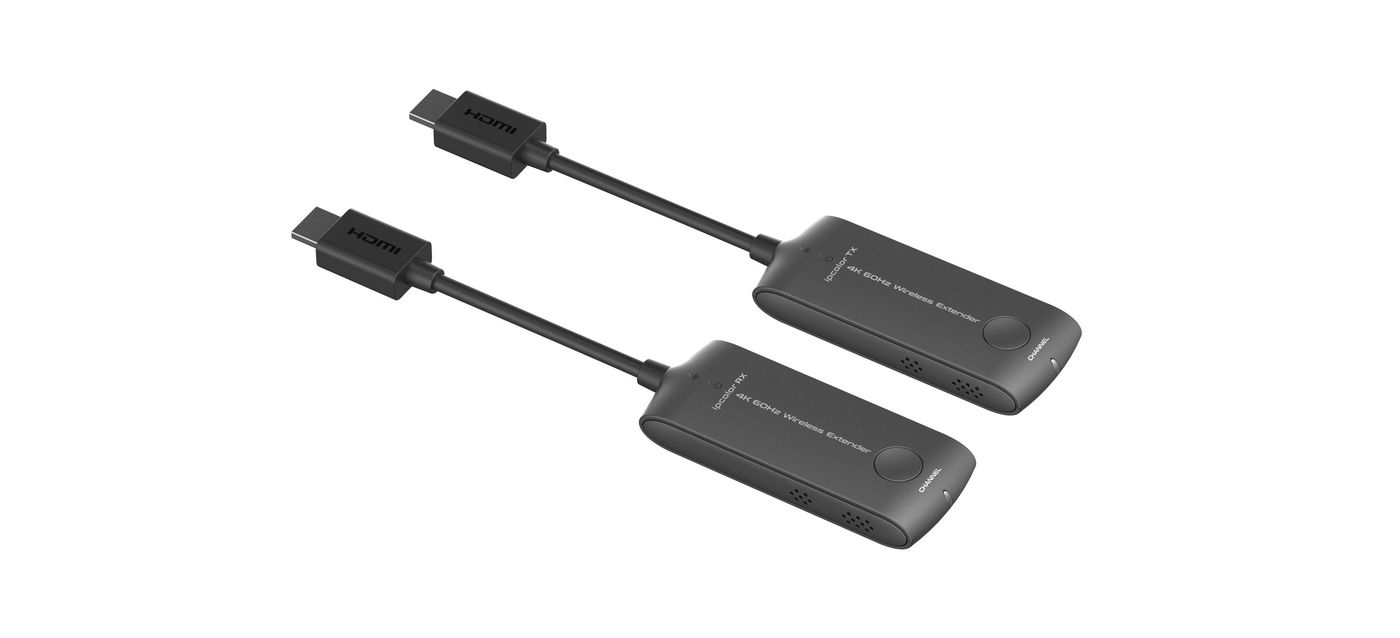

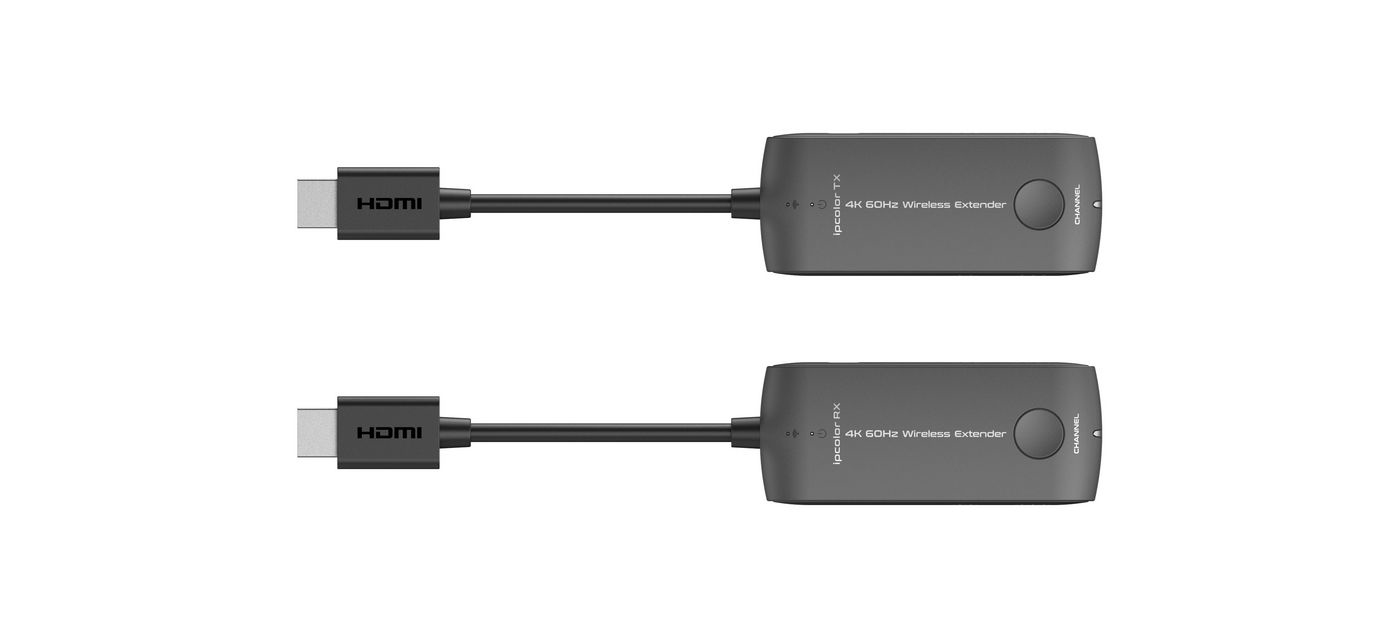

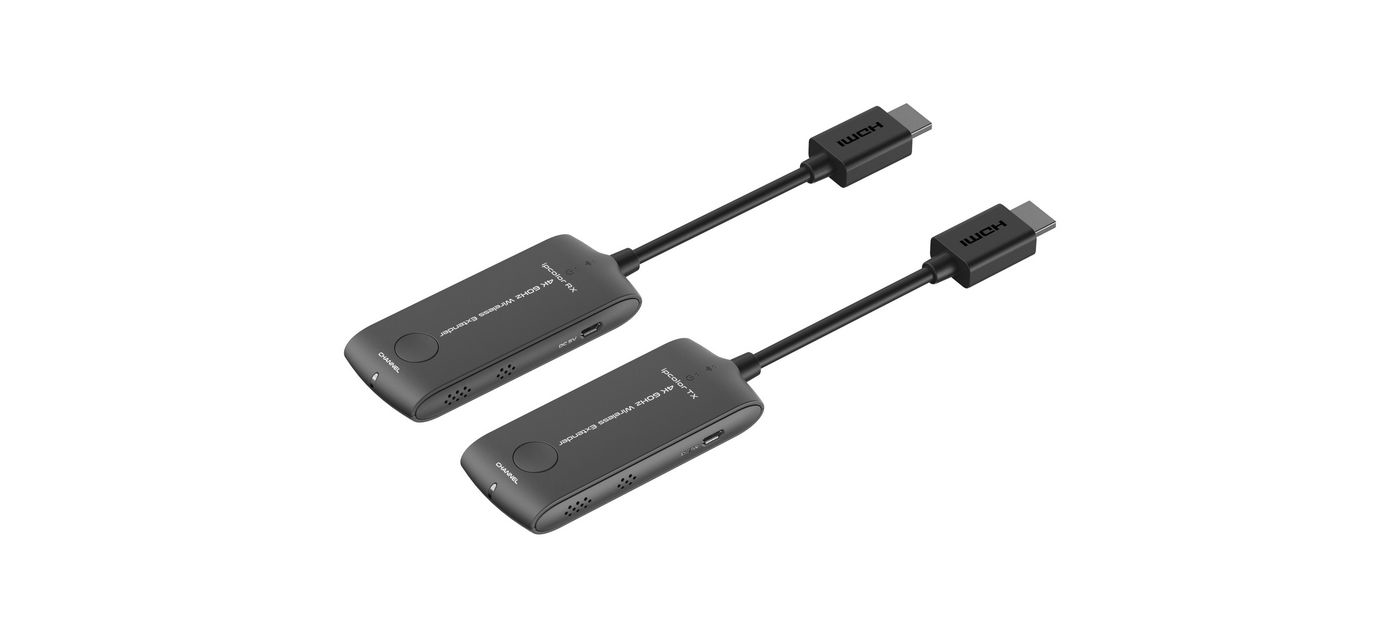

VLHDMIEXT-WIRELESS AV extender Black
Model VLHDMIEXT-WIRELESSEAN 5715063157930
31 specifications
- ConnectivityWireless
- Weight318 g
- ColourBlack
- Maximum transfer distance20 m
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Connectivity
- Wireless
- Weight
- 318 g
- Colour
- Black
- Maximum transfer distance
- 20 m
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Vivolink
- Category
- AV Extender
- Model
- VLHDMIEXT-WIRELESS
- Part number
- VLHDMIEXT-WIRELESS
- EAN / UPC
- 5715063157930
- Also known as
- Vivolink VLHDMIEXT-WIRELESS AV extender Black
Specifications
31 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Maximum transfer distance | 20 m |
| HDCP version | 1.4 |
| Remote control type | IR |
| Supported video modes | 3840p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Output current | 1 A |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96.8 mm |
| Depth | 94 mm |
| Height | 23.7 mm |
| Weight | 318 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 153 mm |
| Package depth | 119 mm |
| Package height | 80 mm |
| Package weight | 320 g |
Packaging content
| Specification | Value |
|---|---|
| Included power plug types | EU |
