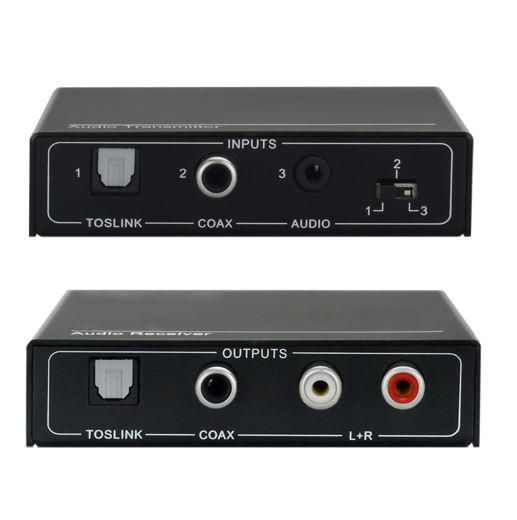

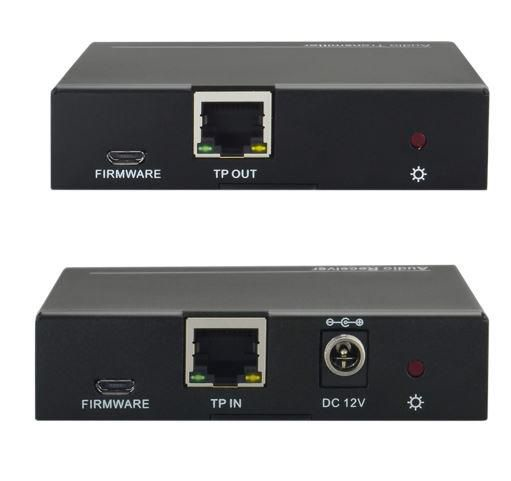

VLEXTA170 AV extender AV transmitter & receiver Black
Model VLEXTA170EAN 5711783853855
48 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight240 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 240 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Vivolink
- Category
- AV Extender
- Model
- VLEXTA170
- Part number
- VLEXTA170
- EAN / UPC
- 5711783853855
- Also known as
- Vivolink VLEXTA170 AV extender AV transmitter & receiver Black

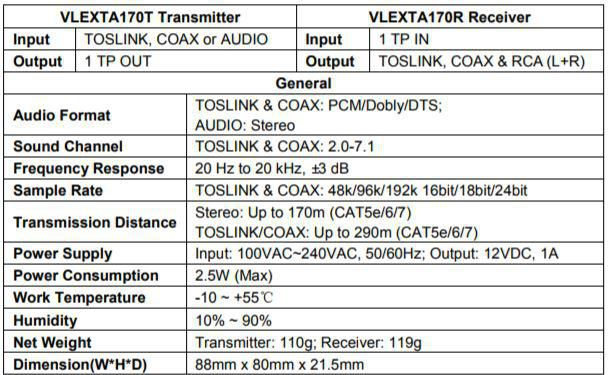

Specifications
48 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Audio output channels | 2.0 channels |
| IR pass-through | Yes |
| Audio formats supported | PCM |
| HDCP & EDID bypass | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Digital audio coaxial out | 1 |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio (L/R) out | 1 |
| Audio RCA outputs | 1 |
| Audio input | 3 |
| Audio output | 3 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| Output current | 1 A |
| Power consumption (transmitter) (max) | 2.5 W |
| Power consumption (receiver) (max) | 2.5 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 80 mm |
| Height | 21.5 mm |
| Weight | 240 g |
| Transmitter dimensions (WxDxH) | 88 x 80 x 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 156 mm |
| Package depth | 155 mm |
| Package height | 120 mm |
| Package weight | 484 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
