Vivolink VL120007 AV extender AV transmitter & receiver Black

Vivolink VL120007 AV extender AV transmitter & receiver Black

Model VL120007EAN 5706998632845

55 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight450 g
  • ColourBlack
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)10 - 90%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
450 g
Colour
Black
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
10 - 90%
Brand
Vivolink
Category
AV Extender
Model
VL120007
Part number
VL120007
EAN / UPC
5706998632845, 5712505764855
Also known as
Vivolink VL120007 AV extender AV transmitter & receiver Black

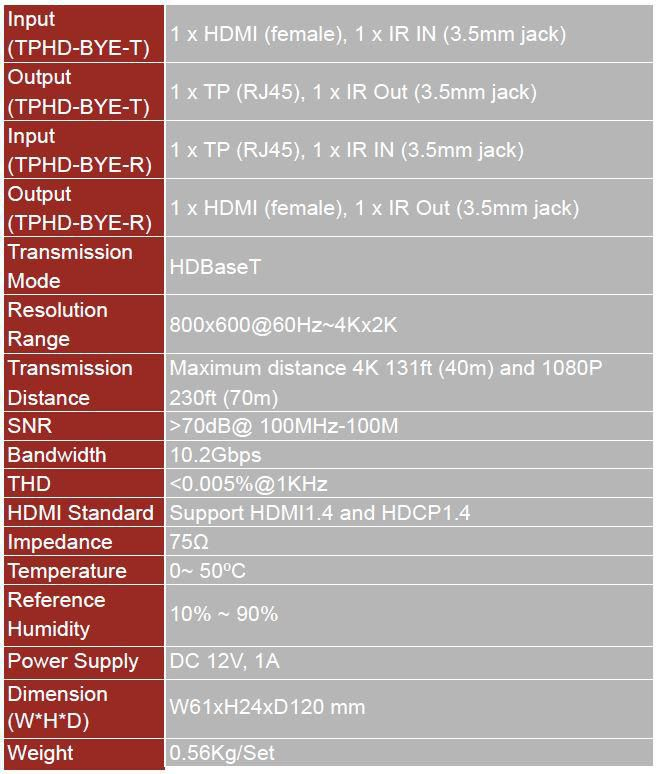

Specifications

55 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e
Maximum transfer distance70 m
CEC pass-throughYes
HDCP pass-throughYes
IR pass-throughYes
3DYes
Bandwidth10.2 Gbit/s
Consumer Electronics Control (CEC) supportYes
HDCP & EDID bypassYes
Impedance75 Ω
LED indicatorsYes
Remote control typeIR
Supported video modes3840p
Wall mountableYes
Product colourBlack
HDBaseT certifiedYes

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
HDMI version1.4
Number of HDMI outputs1
Video in1
Video out1
Remote (IR) input1
Remote (IR) output1
DC-in jackYes

Power

AC input voltage100 - 240 V
AC input frequency50/60 Hz
Operating voltage (transmitter)12 V
Operating voltage (receiver)12 V
Output current1 A
Power consumption (transmitter) (max)9.6 W
Power consumption (receiver) (max)9.6 W
External power adapterYes
Power over Ethernet (PoE)No

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width196 mm
Depth132 mm
Height111 mm
Weight450 g
Transmitter dimensions (WxDxH)61 x 120 x 24 mm

Packaging data

Package width196 mm
Package depth132 mm
Package height111 mm
Package weight552 g

Packaging content

AC adapter includedYes
Included power plug typesEU
IR blaster includedNo
IR receiver includedNo
Mounting brackets includedYes

Technical details

Audio supportYes
