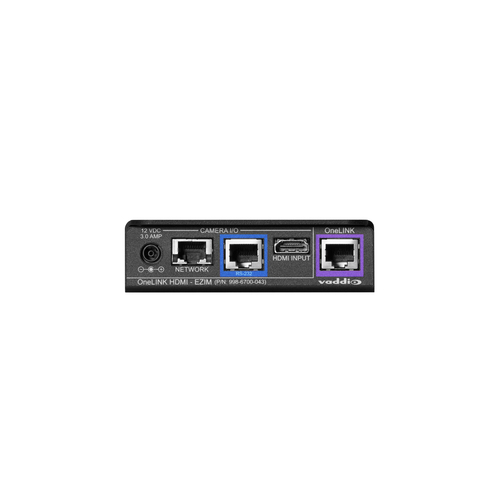

OneLINK HDMI Extension for Sony and Panasonic HE-Series Cameras
Model 999-9530-001EAN 840077502089
32 specifications
- TypeAV transmitter & receiver
- Weight1.5 kg
- ColourBlack
- RJ-45 input ports4
- Operating voltage (transmitter)12 V
- Operating relative humidity (H-H)20 - 80%
Overview
- Type
- AV transmitter & receiver
- Weight
- 1.5 kg
- Colour
- Black
- RJ-45 input ports
- 4
- Operating voltage (transmitter)
- 12 V
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- Vaddio
- Category
- AV Extender
- Model
- 999-9530-001
- Part number
- 999-9530-001
- EAN / UPC
- 840077502089
- Also known as
- Vaddio OneLINK HDMI Extension for Sony and Panasonic HE-Series Cameras
Specifications
32 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Wall mountable | Yes |
| Product colour | Black |
| Certification | CE,FCC,TAA |
| Compatible products | Sony/Panasonic HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 4 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 48 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212.7 mm |
| Depth | 165.1 mm |
| Height | 43.7 mm |
| Weight | 1.5 kg |
| Receiver dimensions (WxDxH) | 152.4 x 31.5 x 98.07 mm |
| Receiver weight | 703.1 g |
| Transmitter dimensions (WxDxH) | 109.47 x 31.5 x 98.07 mm |
| Transmitter weight | 249.5 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, HDMI, LAN (RJ-45) |
| Quick start guide | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
